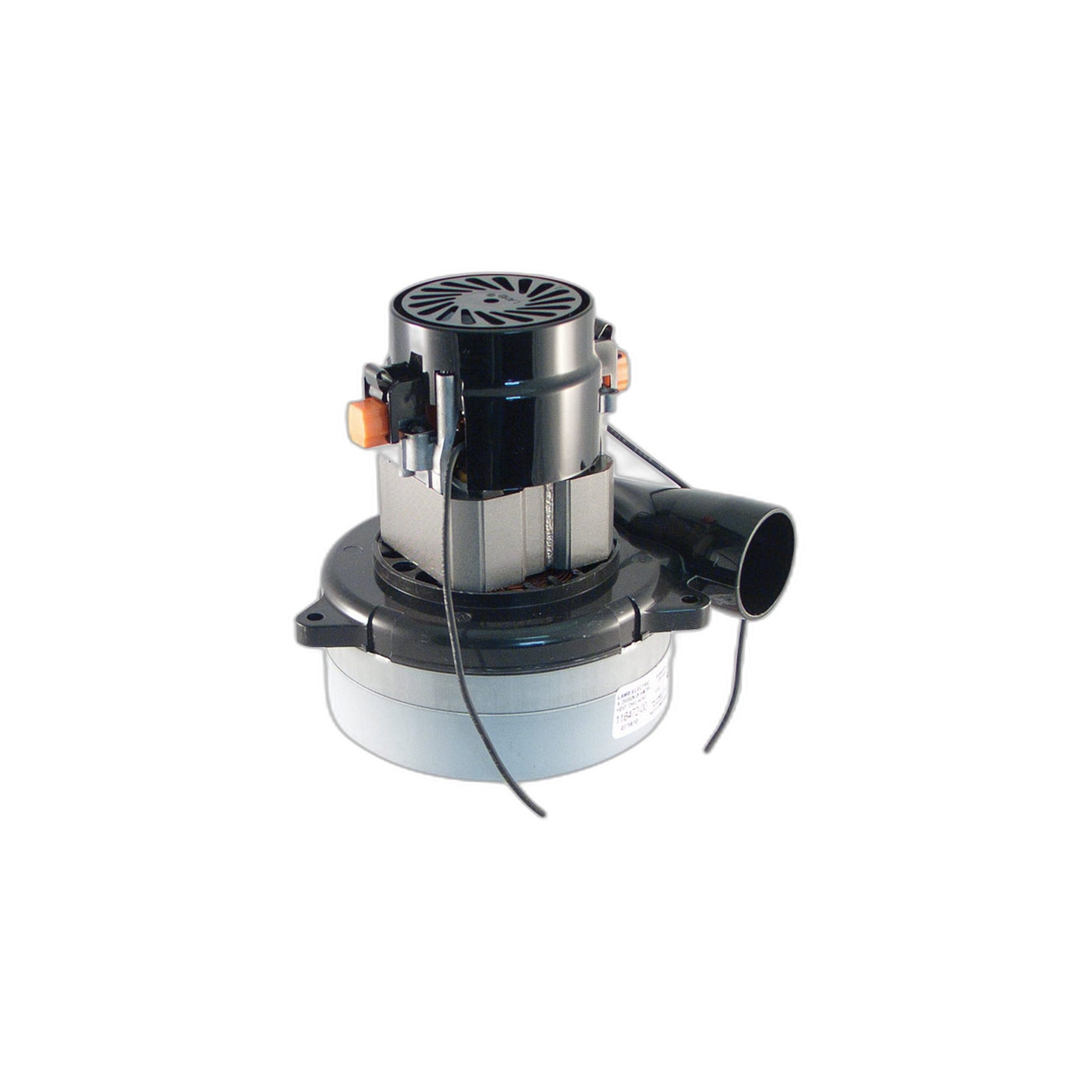

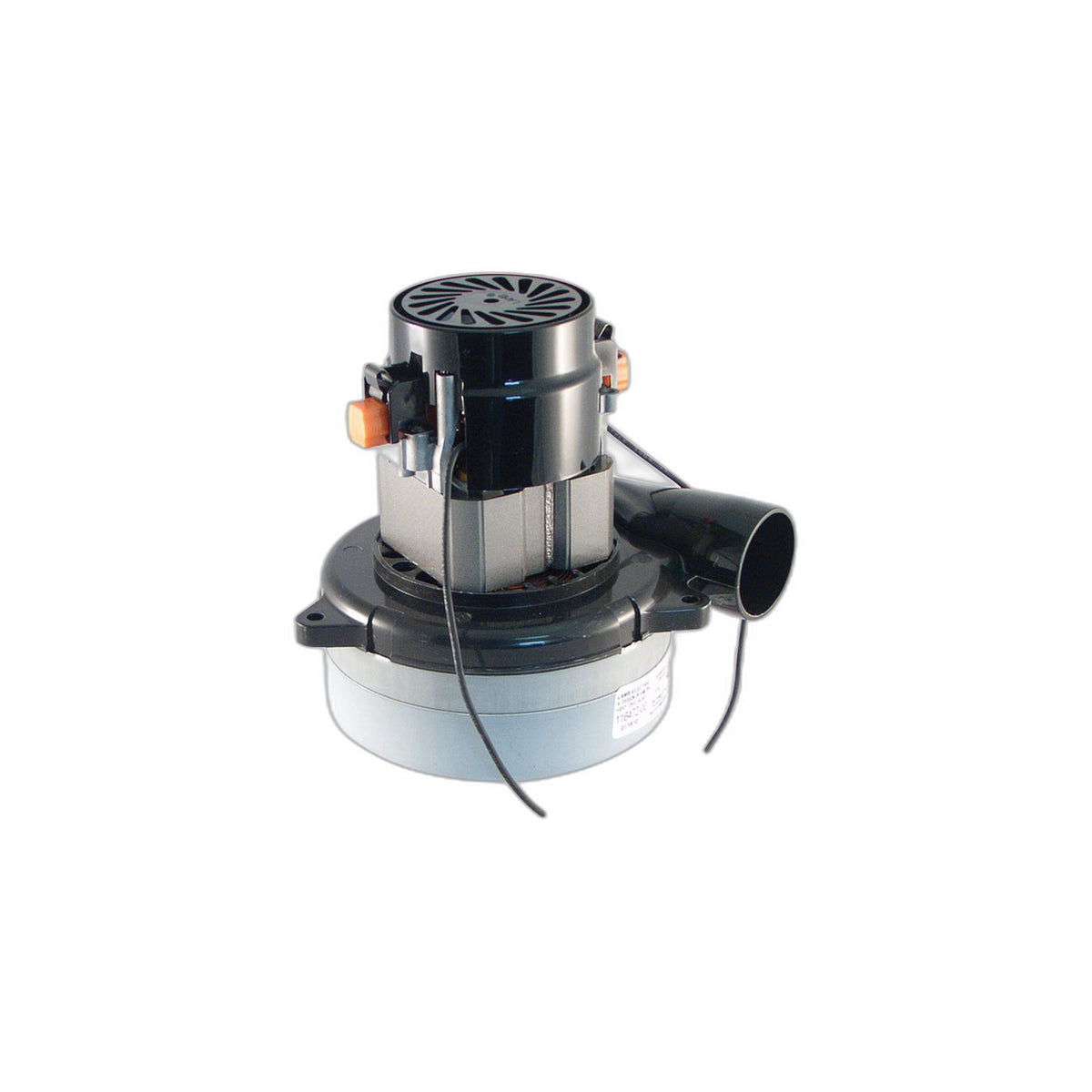

AMETEK Lamb 116472-00 Tange...
$150.99
Product details
The AMETEK Lamb 116472-00 is a tangential bypass central vacuum motor, offered here as replacement part TM647200. It is a 5.7 in. diameter, 2-stage motor built for 120V, the frame size used on most full-size central vacuum systems, rated at roughly 404 air watts, 112 CFM, and 106.7 in. of sealed suction, and it draws about 10.7 amps at 50-60 Hz.
This is the base motor on this platform, built without the extra air-seal bearing protection used on upgraded variants in the same family. It was originally fitted in Vacuflo 260, Vacuflo 460, and Vacuflo 760 power units, and cross-references to Ametek 122159, so it is worth checking by part number even on a unit badged differently.
- Part: TM647200 (AMETEK Lamb 116472-00)
- Design: tangential bypass, 2-stage, 120V
- Output: about 404 air watts, 112 CFM, 106.7 in. water lift
- Frame: 5.7 in. diameter, 6.75 in. motor height
- Service brush kit: part 833392-67
It also supersedes earlier Lamb numbers 116474, 117073, 117795, and 119260, so it is a valid replacement if your old motor carries one of those older numbers. Replace the motor once suction weakens, the carbon brushes thin out, or the bearing noise grows louder, and a steady drop in suction over months is usually wear rather than a single sudden failure. Match your unit's frame diameter and bolt spacing before ordering part TM647200.
