AMETEK Lamb 122437-00 Assem...
$178.99
Product details

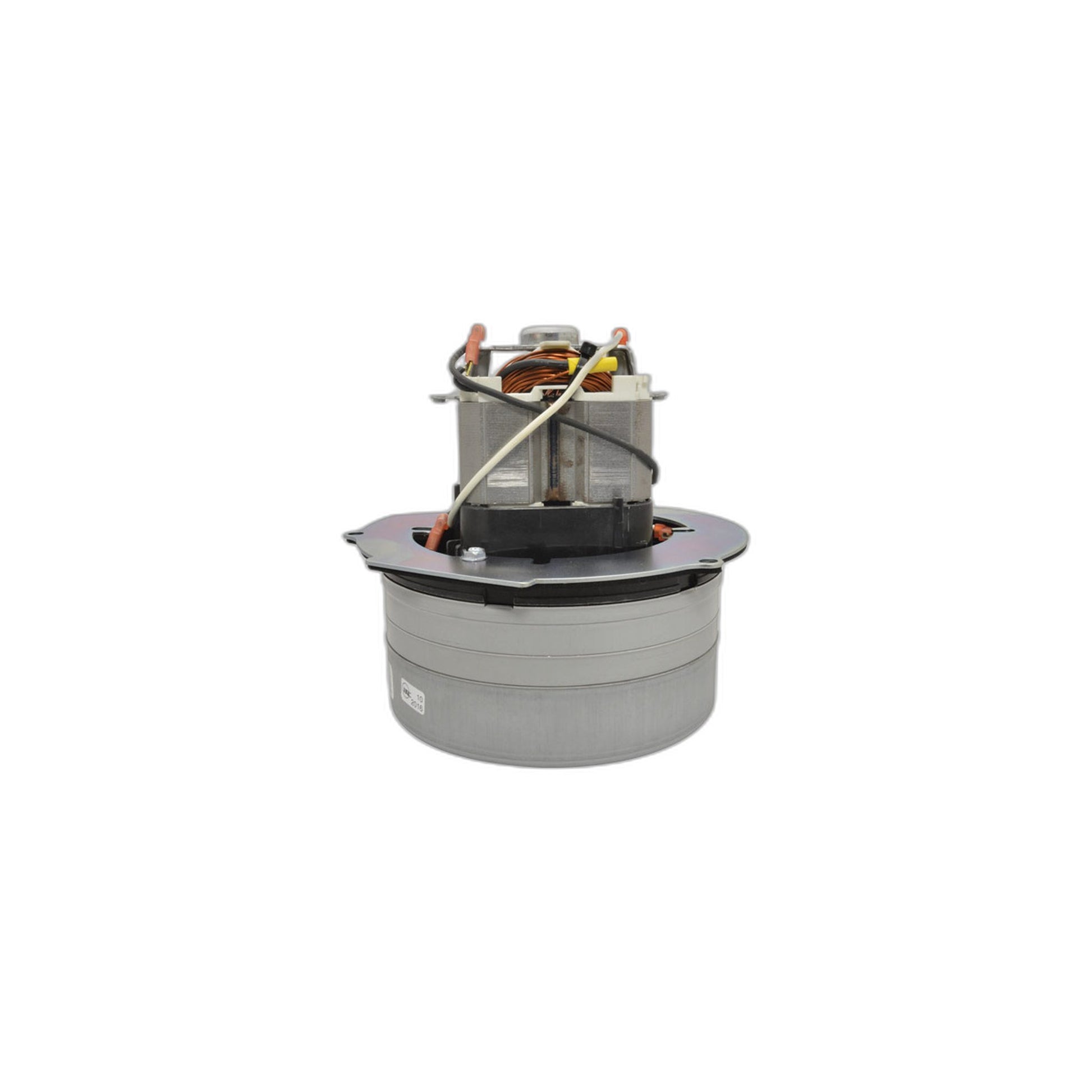

The AMETEK Lamb 122437-00 is an assembled thru-flow central vacuum motor, offered as replacement part FM24370001. It runs on 120V with a 2-stage fan in a 5.7 in. diameter frame, on the Traditional Lamb platform's Standard Flow line, and it is rated at 1,550 W of input power.
On a thru-flow motor, the same air the vacuum pulls in from the house also passes across the motor windings to cool them, rather than running on a separate bypass air path. This unit is documented as identical to its 122264-00 sibling apart from a thermal cutoff device specified for this particular equipment application, so the two share the same core design and performance figures.
- Part: FM24370001 (AMETEK Lamb 122437-00)
- Design: thru-flow, 2-stage, 120V, assembled
- Power: 1,550 W input
- Frame: 5.7 in. diameter, Traditional Lamb platform
- Service brush kit: part 8505936-50
Being an assembled unit, it arrives as a complete, ready-to-wire motor rather than a bare replacement cartridge, so plan to transfer your existing mounting gasket and wiring configuration onto it unless your unit's manual says otherwise. Verify your power unit's frame diameter and lead configuration against your old motor before ordering, since thru-flow motors are matched to a specific power unit design and are not a universal drop-in across brands. Replace it when suction has weakened, brushes have worn, or the motor has gone noisy.
Verified against: the Lamb 122437-00 model record
