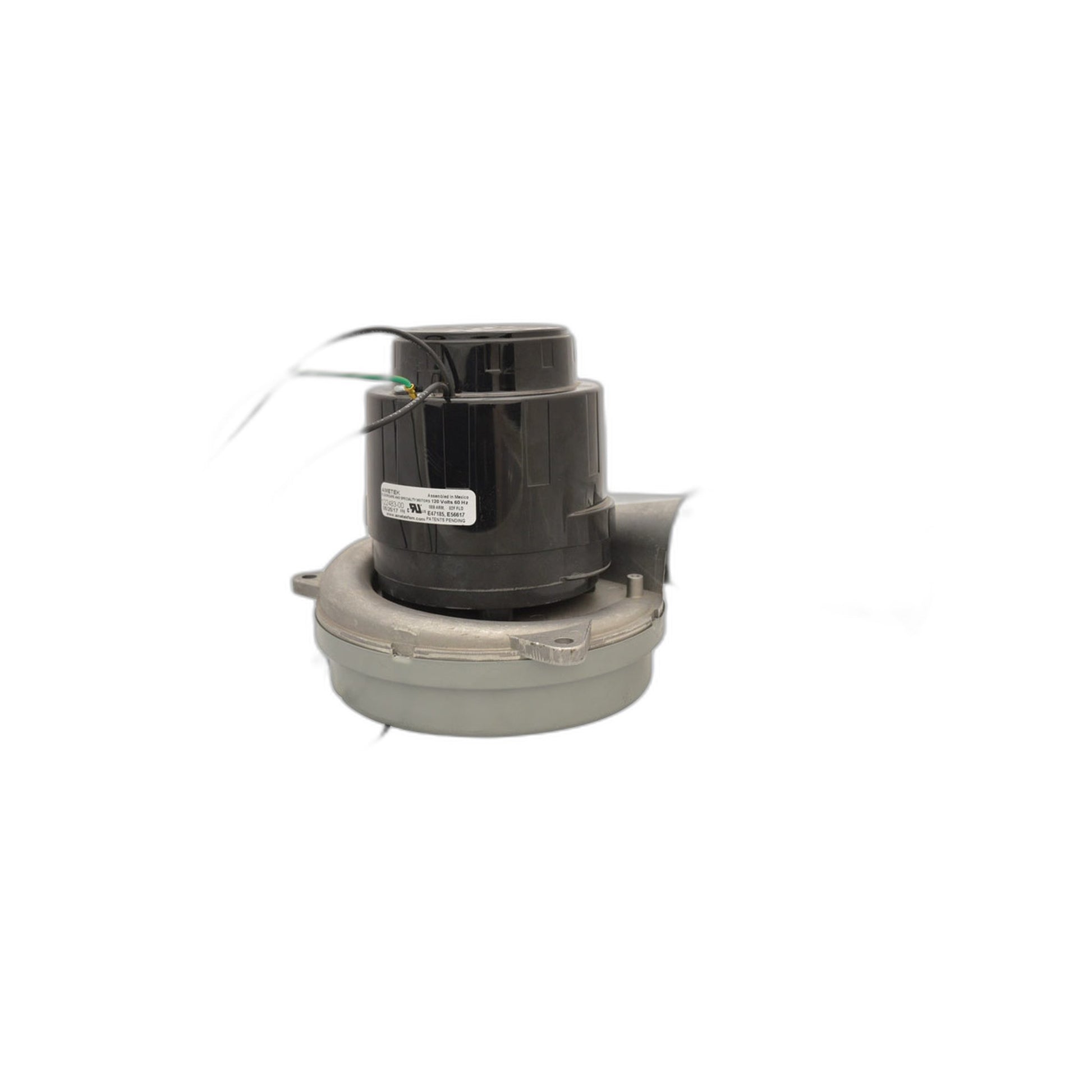

AMETEK Lamb 122483-27 Assem...
$209.99
Product details
The AMETEK Lamb 122483-27 is an assembled tangential bypass central vacuum motor, offered as replacement part FM24832702. It runs on 120V with a 2-stage fan on a 6.6 in. diameter frame, built on the 6.6 Premier platform's High Performance tier, and it is rated at 659 air watts and 1,550 W of input power.
This unit is documented as identical to the 122483-00 base motor apart from added terminals and a curved brush, a running design update to this part number rather than something to plan around when ordering.
- Part: FM24832702 (AMETEK Lamb 122483-27)
- Design: tangential bypass, 2-stage, 120V, assembled
- Output: 659 air watts, 1,550 W input
- Frame: 6.6 in. diameter, 6.6 Premier / High Performance platform
- Service brush kit: part 8505967-50
Being an assembled unit, it arrives as a complete, wired motor rather than a bare cartridge, so plan on a straightforward swap rather than sourcing a separate gasket or lead. The 6.6 in. frame puts it a step up in diameter from the 5.7 in. motors used in most standard central vacuum power units, so it is not a fit for every housing even when the voltage and stage count match. Confirm your power unit's frame diameter before ordering part FM24832702, and replace the motor when suction has weakened, brushes have worn, or bearings have gone noisy.
Verified against: the Lamb 122483-27 model record
