Trovac Assembled Tangential...
$189.99
Product details

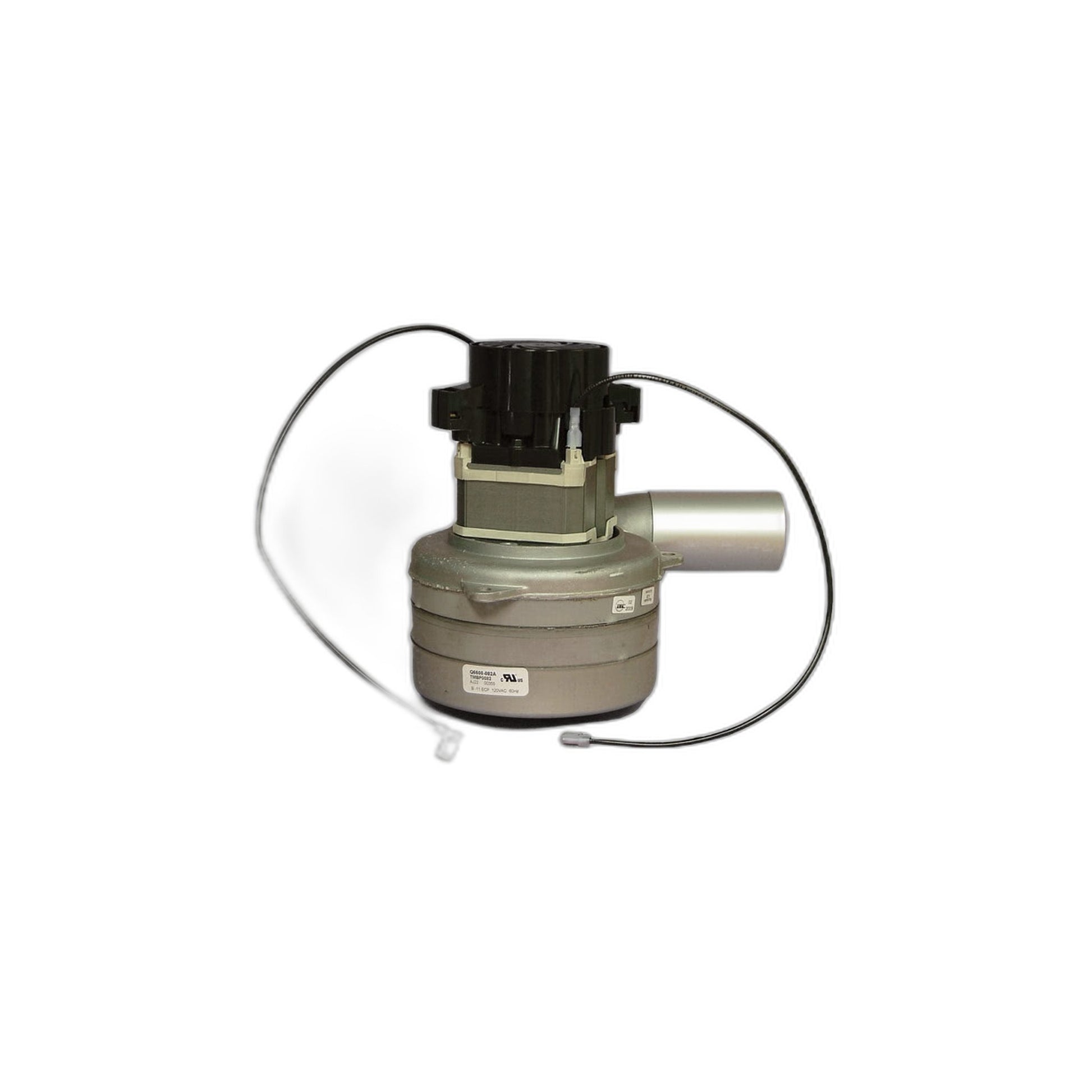

Part FMCY052105 is Trovac's assembled 605-airwatt tangential bypass motor, supplied with a 4.5 in aluminum exhaust tube already fitted for units that route their exhaust further from the motor deck than the shorter-tube version of this build.
The tangential bypass fan draws its own cooling air in on a separate path from the suction stream, keeping debris out of the motor while it works. Getting the exhaust tube length right is the detail that decides whether a replacement motor seats against your unit's housing outlet, so it is worth checking closely against the original before you buy. A motor at this rating is meant to run for long, continuous stretches, so a rising pitch, a new rattle, or a thermal cutout tripping more often than it used to is the usual early warning that the bearings or brushes are wearing out.
- Type: Tangential bypass motor
- Rating: 605 airwatts
- Exhaust: 4.5 in aluminum tube, fitted
Compare part FMCY052105 against your existing motor's tube length and mount, or against your central vacuum unit's parts diagram, before ordering, and seat the exhaust gasket fully so it does not become a new leak.
