Trovac Assembled Tangential...
$224.99
Product details

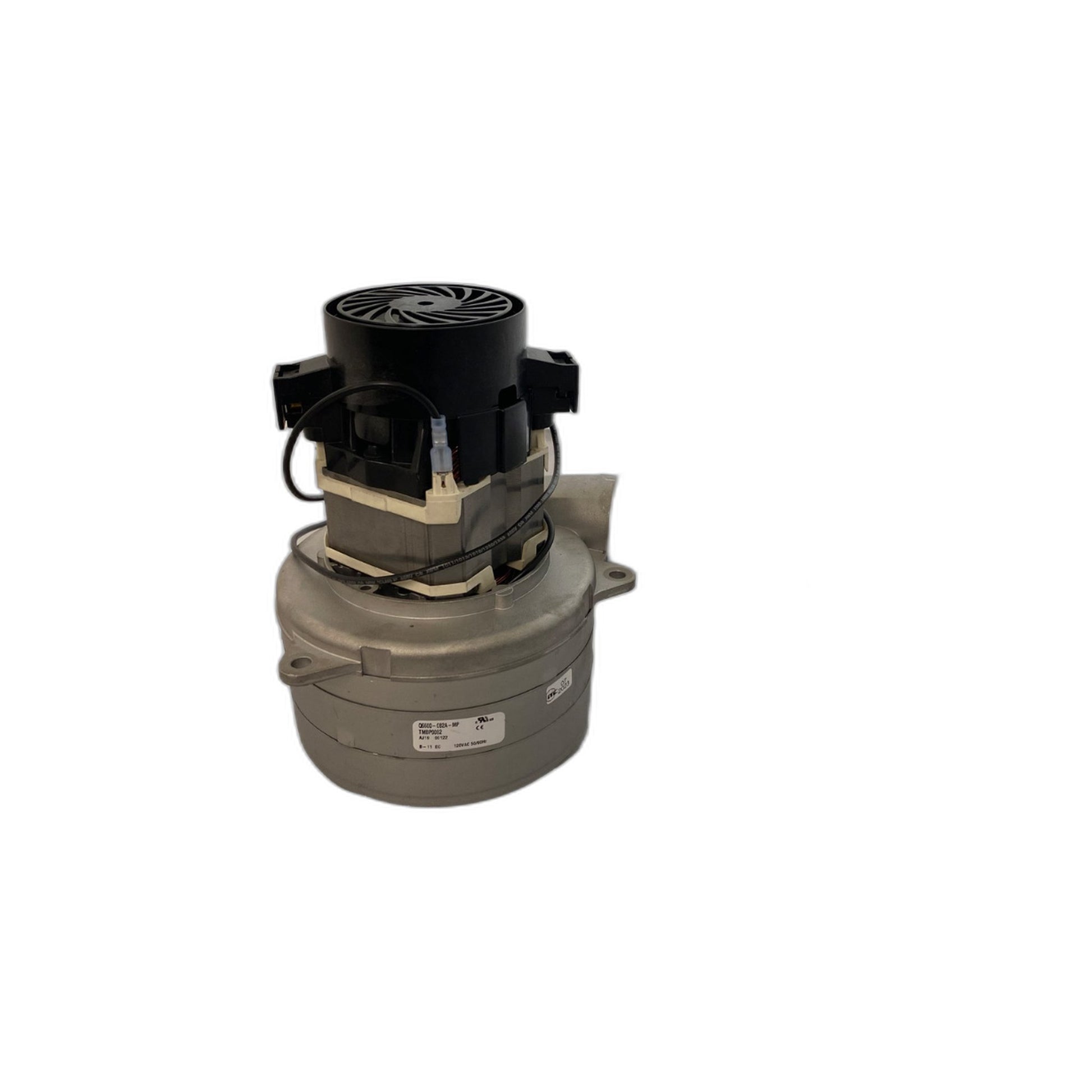

Part FMBP008204 is Trovac's assembled tangential bypass motor rated at 650 airwatts, the highest rating in this motor line, running a three-stage fan on 120 V.
Adding a third fan stage is how a motor reaches this rating without changing its footprint, stacking more lift out of the same frame size. The tangential bypass design keeps a separate cooling-air path for the motor so the suction stream stays free to do its job. Larger central vacuum systems, or ones with several inlets and long pipe runs, are typically where a 650-airwatt motor earns its keep over a two-stage unit. A motor working this hard is worth listening to over time: a new rattle, a rising pitch, or a thermal cutout that trips more than it used to are the usual signs of bearing or brush wear well before suction visibly drops.
- Type: Tangential bypass, 3-stage
- Rating: 120 V, 650 airwatts
- Build: Assembled, ready to install
Motor mounts and exhaust routing are not standardized across central vacuum power units, so match part FMBP008204 to your original motor or your unit's parts diagram before ordering, and check the exhaust gasket seats fully on installation.
