SEBO Bottom Casing for AIRB...
$53.00
Product details

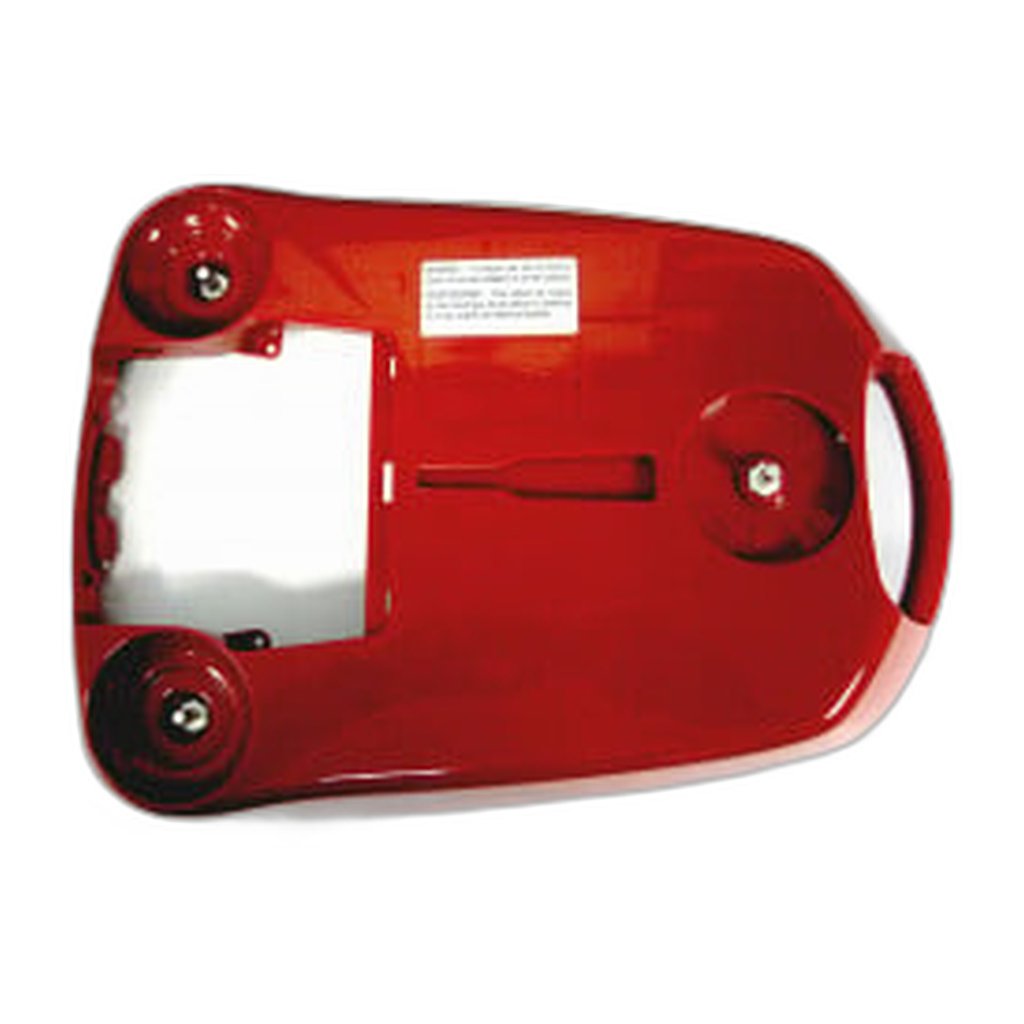

Owners of a red SEBO AIRBELT E3 Premium needing a new base want 8335DRER, listed at position 1 of SEBO's AIRBELT E diagram as the red bottom casing. The moulding forms the underside of the canister and is the platform the working parts of the machine are mounted onto.
This is the panel that takes the abuse from stairs, thresholds and the corner of a kitchen island. A crack across it can leave internals loose or stop the body closing flush, and the flex that follows tends to spread the split rather than hold it steady. Check the middle casing before you order, though: the AIRBELT E sheet lists that separately at position 5 as 8230ULER, and its bracketed caption means it arrives including items 6 and 7 — the cover latch spring 7045ER and the bolt 8053ER. The bottom casing is a bare moulding by comparison.
Every body shade carries its own number inside the same 8335 family, so the letters do the work. DR is red, and the red parts around it on that sheet are the exhaust air filter cover 8249DRER at position 4, the top casing 8328DRER at 22 and the filter cover 8224DRER at 24. Ordering from a photograph is how people end up with a graphite base on a red machine.
One more practical note. The moulding is supplied bare, so the internals come off the old base and go straight onto the new one, and the existing screws are reused unless one has stripped. SEBO catalogues those on their own, singly or as ten-packs — 0129 and 0129ER cover the 4 x 12 size — which is worth having to hand before starting rather than halfway through the job.
- Fitment: SEBO AIRBELT E3 Premium
- Shade: red
- Diagram position: 1 on the AIRBELT E sheet, listed as bottom casing, red
- Part number: 8335DRER
- Supplied as: the lower moulding alone, no hardware
- Same-colour neighbours: 8249DRER at 4, 8328DRER at 22, 8224DRER at 24
Genuine SEBO spare part, ships in 2-5 business days.
