Trovac 15A Resettable Circu...
$15.00
Product details

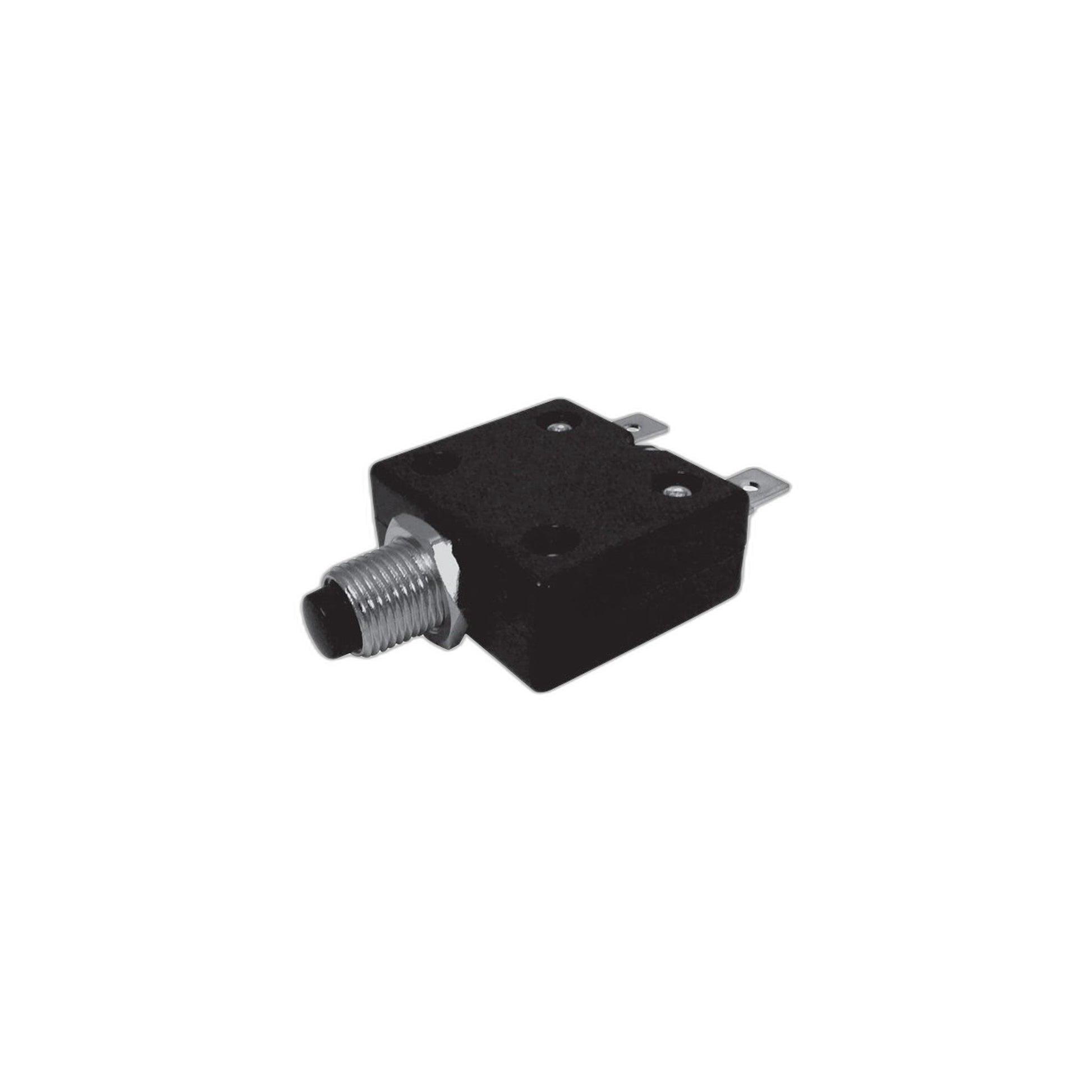

Part ELERES15 is a resettable 15A circuit breaker built into the motor circuit of a central vacuum power unit. Rather than blow out and need replacing the way a fuse does, this breaker trips and can be reset once whatever caused the trip has cleared.
A breaker that keeps tripping is telling you the motor is drawing more current than it should. That can trace back to a clogged pipe run forcing the motor to labor, a jammed brush roll pulling extra load back through the hose, or a motor nearing the end of its useful life. A breaker that has simply aged out and no longer holds its rated 15A behaves the same way, tripping well under a normal load, and in that case the breaker itself needs replacing rather than whatever it keeps protecting.
- Part: ELERES15
- Rating: 15A
- Type: resettable breaker
- Trovac lists it for: GX615, DL615, HX615, GX715, DL715, HX715, GX2015, DL2015, HX2015, GX7515, DL7515, HX7515
Trovac lists this breaker for its GX615, DL615, HX615, GX715, DL715, HX715, GX2015, DL2015, HX2015, GX7515, DL7515 and HX7515 power units. Line up the amperage rating and terminal style with the breaker currently in your unit before swapping it in.
