H-P Products 90-Degree Meta...
$27.99
Product details

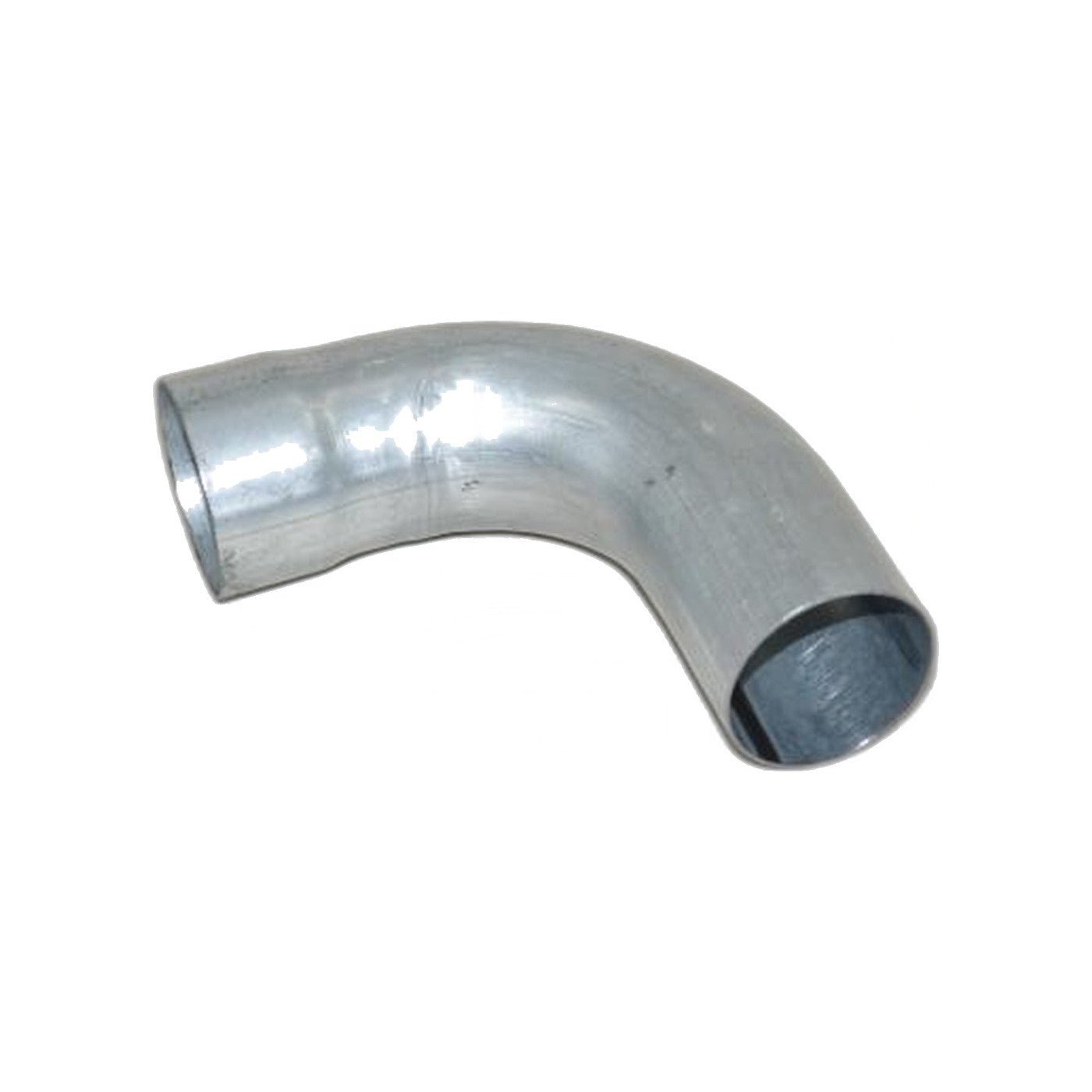

Part 1193 is a 2-inch, 90-degree metal spigot elbow for central vacuum piping. The spigot end seats directly into the hub of the next fitting without a separate coupling, which keeps the joint count down in crowded runs behind walls and between floor joists where space is already tight.
Metal is the deliberate choice at a 90-degree turn specifically. Debris moving through a central vacuum line hits hardest where the airflow changes direction sharply, and a plastic elbow at that spot wears from the inside over years of heavy material passing through it, thinning until it eventually fails at a full hard turn. Metal in that same spot resists that abrasion far longer, often outlasting the rest of the run around it.
This is a standard 2-inch central vacuum fitting rather than one built to a documented brand or model list, so it suits H-P Products piping and other systems built on standard 2-inch central vacuum pipe. Bond spigot-to-hub connections with PVC cement as appropriate for a permanent, airtight joint, and make sure the elbow is fully seated before the cement sets.
- Part: 1193
- Size: 2 inch
- Angle: 90 degrees
- Construction: metal, spigot-end connection
Use it at a hard right-angle turn in a new install, or as a targeted swap wherever an existing plastic fitting at that same high-wear point has thinned out and needs a more durable replacement. A basement corner near the power unit, where the trunk line often has to turn sharply before heading up into the walls, is a typical spot for this kind of fitting.
