Trovac Central Vacuum Motor 1001, Thru-Flow 120V 2-Stage 555AW

Trovac Central Vacuum Motor 1001, Thru-Flow 120V 2-Stage 555AW

$165.99 USD
$165.99 USD
Sale Sold out
Shipping calculated at checkout.

FMCY100101
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac Central Vacuum Motor...

$165.99

Product details

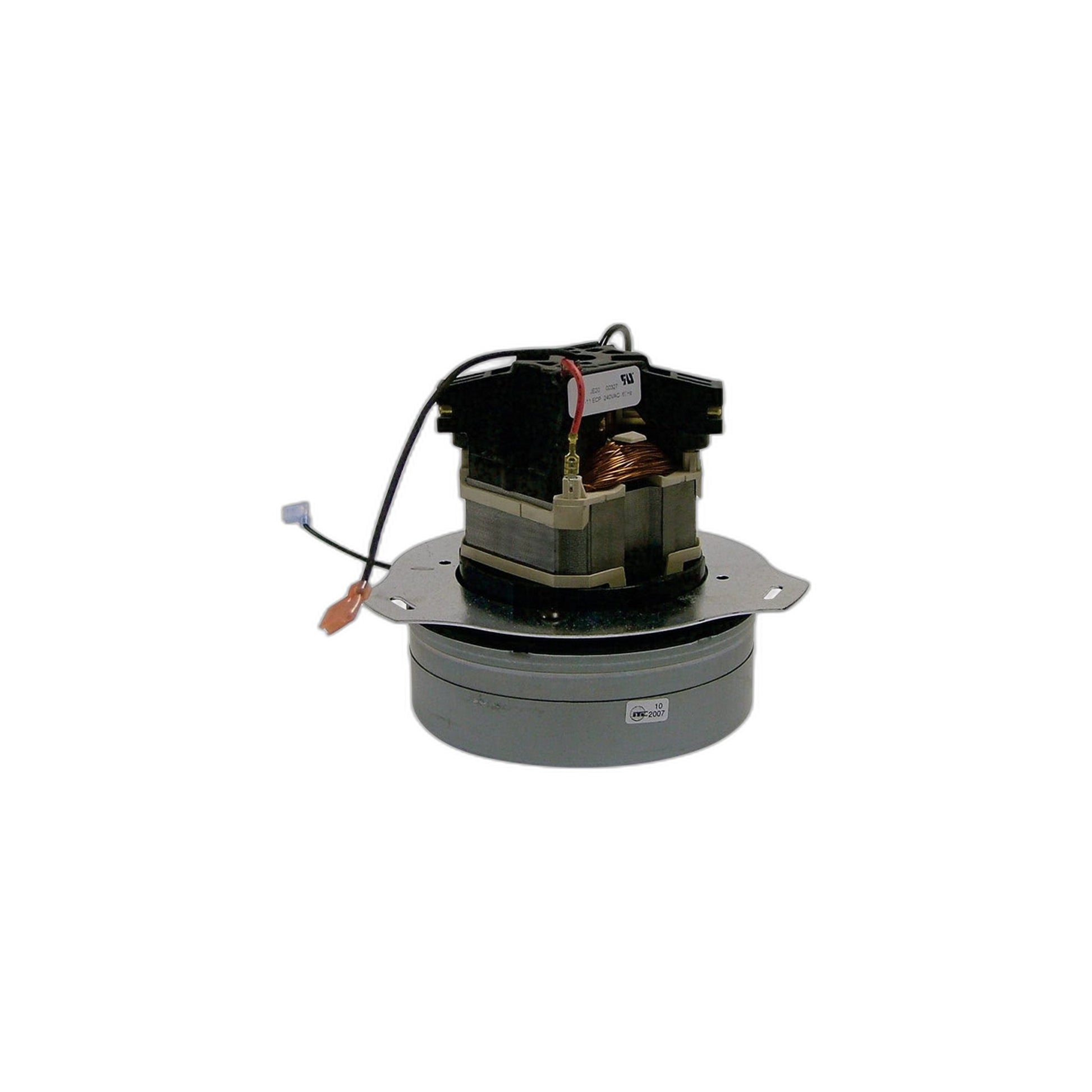

Part FMCY100101 is Trovac's 1001 thru-flow motor, a two-stage central vacuum motor rated at 555 airwatts on 120 V with a 5.7 in frame.

On a thru-flow motor the same airstream that carries dust through the piping is also what cools the windings, rather than drawing a separate bypass air path the way some motors do. That makes the seal between the fan housing and the motor deck more important than on a bypass design, since any leak there both weakens suction and lets dirty air reach the motor more directly. Because a thru-flow motor works continuously while the system runs, it is also worth paying attention to gradual changes: a motor that gets noticeably louder, runs hotter to the touch than it used to, or trips a thermal cutout more often is usually further along in wearing out than the suction alone will tell you.

  • Type: Thru-flow, 2-stage
  • Rating: 120 V, 555 airwatts
  • Frame: 5.7 in

Replace the motor once suction has dropped off, the bearings sound rough, or the unit no longer starts. Confirm the frame size and lead style against your original motor before ordering part FMCY100101, or check your unit's parts diagram.
