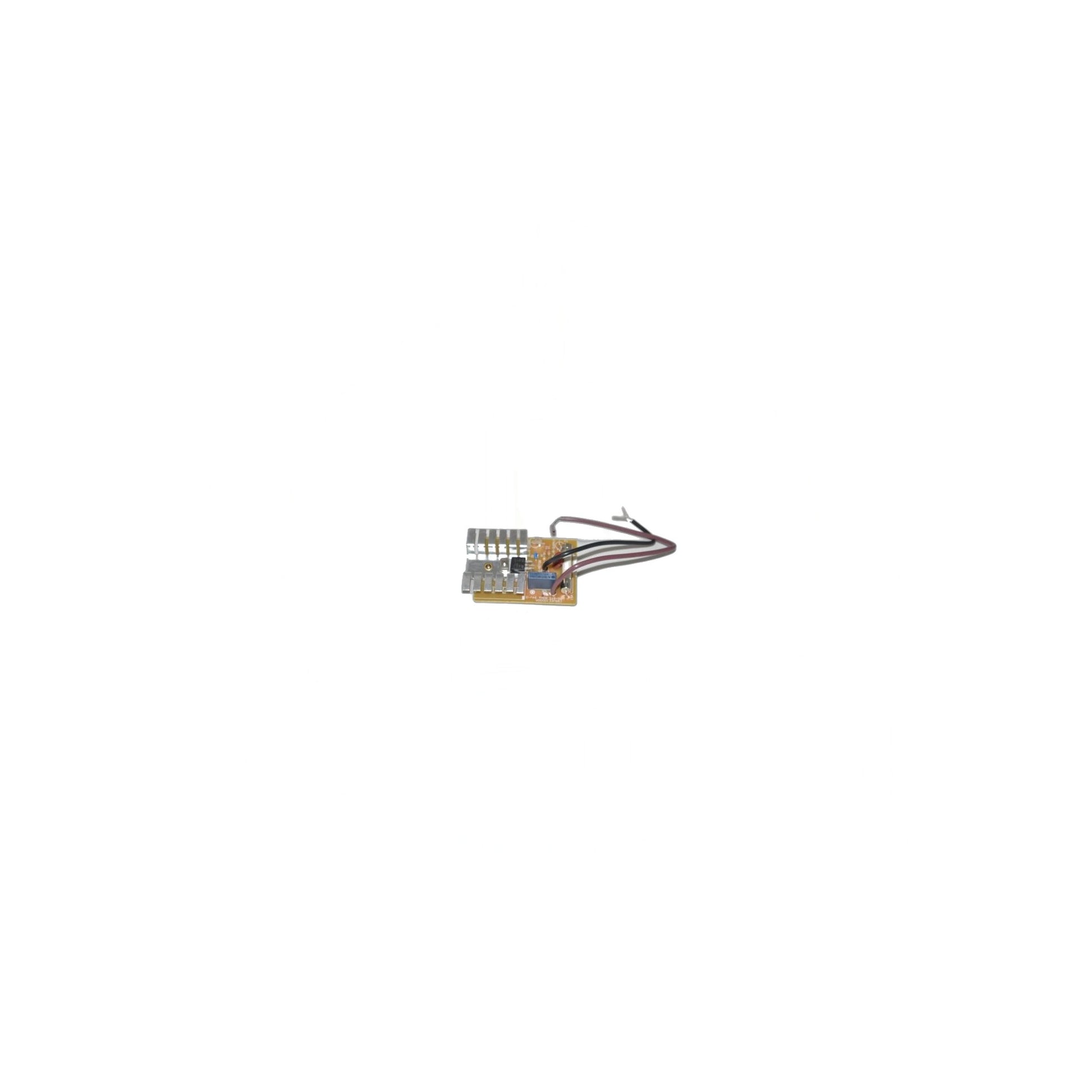

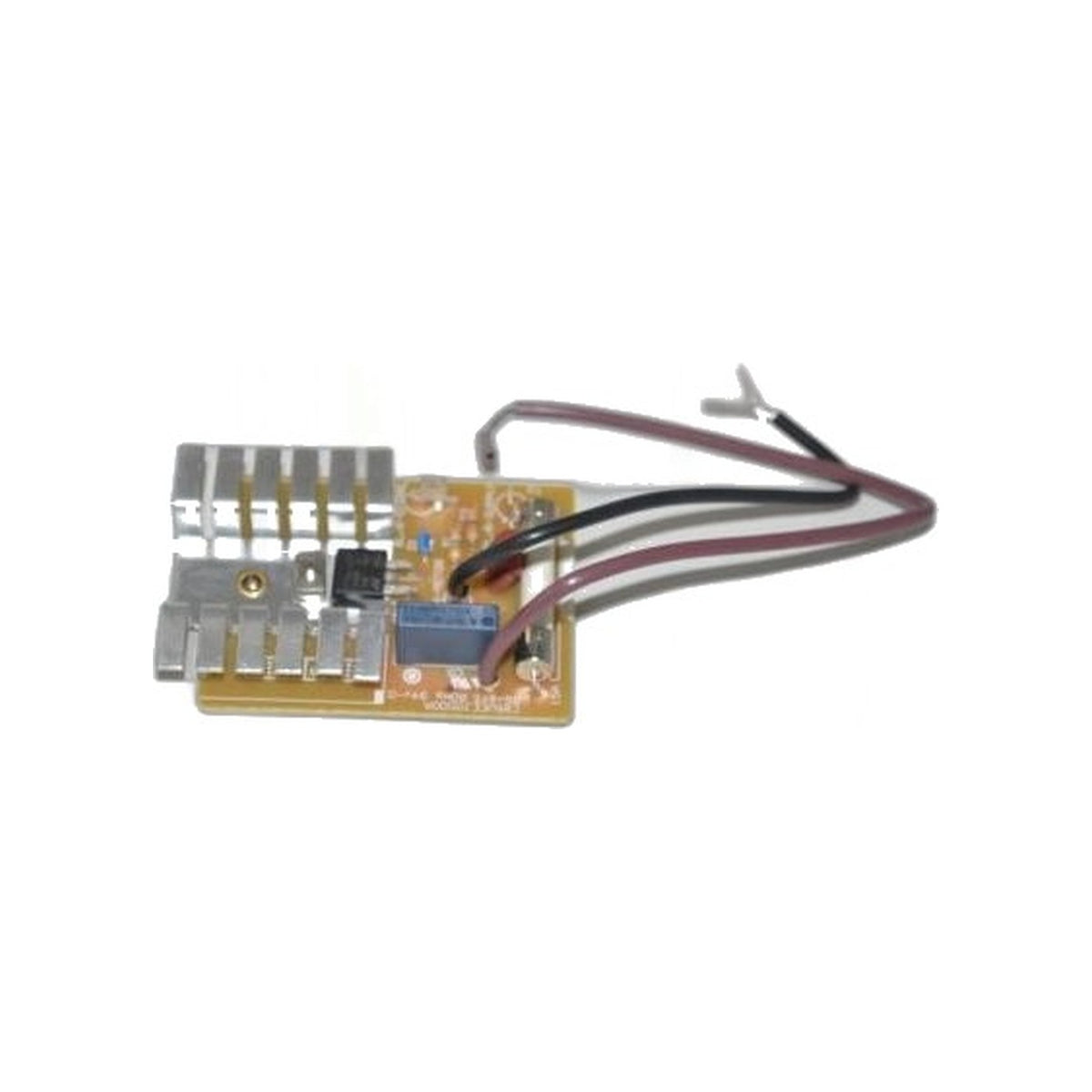

Kenmore PCB Control Board -...
$39.99
Product details
This is the main control board for Kenmore canister vacuums built on the 2-wire wiring scheme, part number KC85VEEJZ000. It sits behind the housing and handles the machine's switching and control duties, so a fault here can look like almost any other electrical problem the machine could have.
Listed for the Kenmore 125.81615910, 81414, 81614, BC3005, BC4026, and BC4027. Symptoms that point to the board rather than the cord or switch include a machine that will not power on at all despite a good outlet, one that starts and then cuts out on its own, or one whose controls stop responding while the switch itself still moves freely. Rule out the cord and the on/off switch first, since both are cheaper and faster to check than opening the board housing.
Boards fail more often from heat and vibration over years of use than from any single event, which is why intermittent symptoms, rather than a clean dead stop, are so often the first sign. A machine that runs fine cold but cuts out once it warms up after ten or fifteen minutes is a classic board symptom worth checking before anything else on the machine.
- Part: KC85VEEJZ000, 2-wire control board
- Fits: Kenmore 125.81615910, 81414, 81614, BC3005, BC4026, BC4027
- Wiring: 2-wire only; a separate 4-wire board exists for other Kenmore canisters and the two are not interchangeable
- Handling: disconnect power first and avoid touching the board's components directly, since the circuitry is sensitive to static discharge
Match the wire count on your existing board before ordering. A 2-wire and 4-wire board can look similar at a glance but will not connect to the wrong harness.
