Lamb Ametek 6.6" 230V 2-Sta...
$205.99
Product details

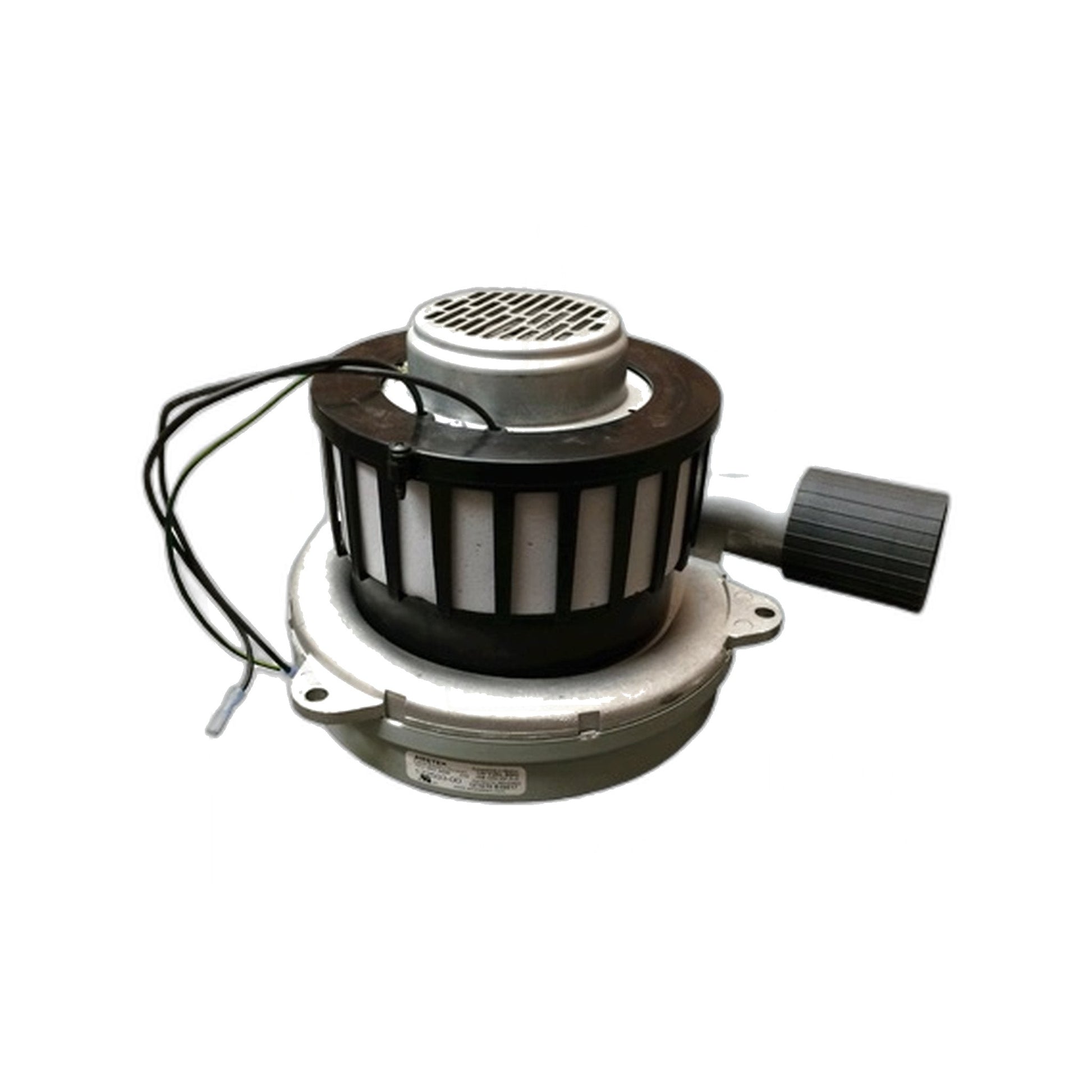

Rated for 230 volts, the Lamb Ametek 122386-07 is a two-stage tangential-discharge bypass motor on a 6.6 inch frame. In a bypass motor the cooling air travels a separate path from the dirty working airstream, which is what allows this type to run in continuous-duty and wet-pickup service where a thru-flow motor would not survive.
Ametek publishes this part on its 6.6 Premier Platform, in the high-performance flow class at the 1600 watt power level, built with a curved brush and served by replacement brush kit 8505969-50. Ametek states that the 6.6 inch bypass tangential motors were designed to increase efficiency, extend brush, bearing and battery life and improve noise, and publishes the family as reaching sealed vacuums up to 160 inches of water with flow rates up to 170 CFM. Those figures are family ceilings, not a measured rating for this individual build. Ametek also records 122386-07 as replaced by 122386-33.
No list of the specific power units built around this motor is published, so confirm your existing motor's frame size, stage count, discharge type and voltage before ordering. Pay particular attention to the voltage: this is a 230 volt motor, and it is not a substitute for a 120 volt original. Watch for the usual signs of a worn motor, meaning suction that keeps dropping with clean filters, a burning smell, or a grinding sound from worn bearings.
- Diameter: 6.6 in
- Stages: 2, tangential-discharge bypass
- Voltage: 230V AC
- Family ceiling: up to 160 in sealed vacuum, up to 170 CFM
- Power level: 1600 Watt
- Motor type: 6.6 Premier Platform, curved brush
- Replacement brush kit: 8505969-50
- Superseded by: Lamb Ametek 122386-33
- SKU: 122386-07
Verified against: Ametek Lamb model data for 122386-07
