Titan Motor Gasket for TCS4...
$13.99
Product details

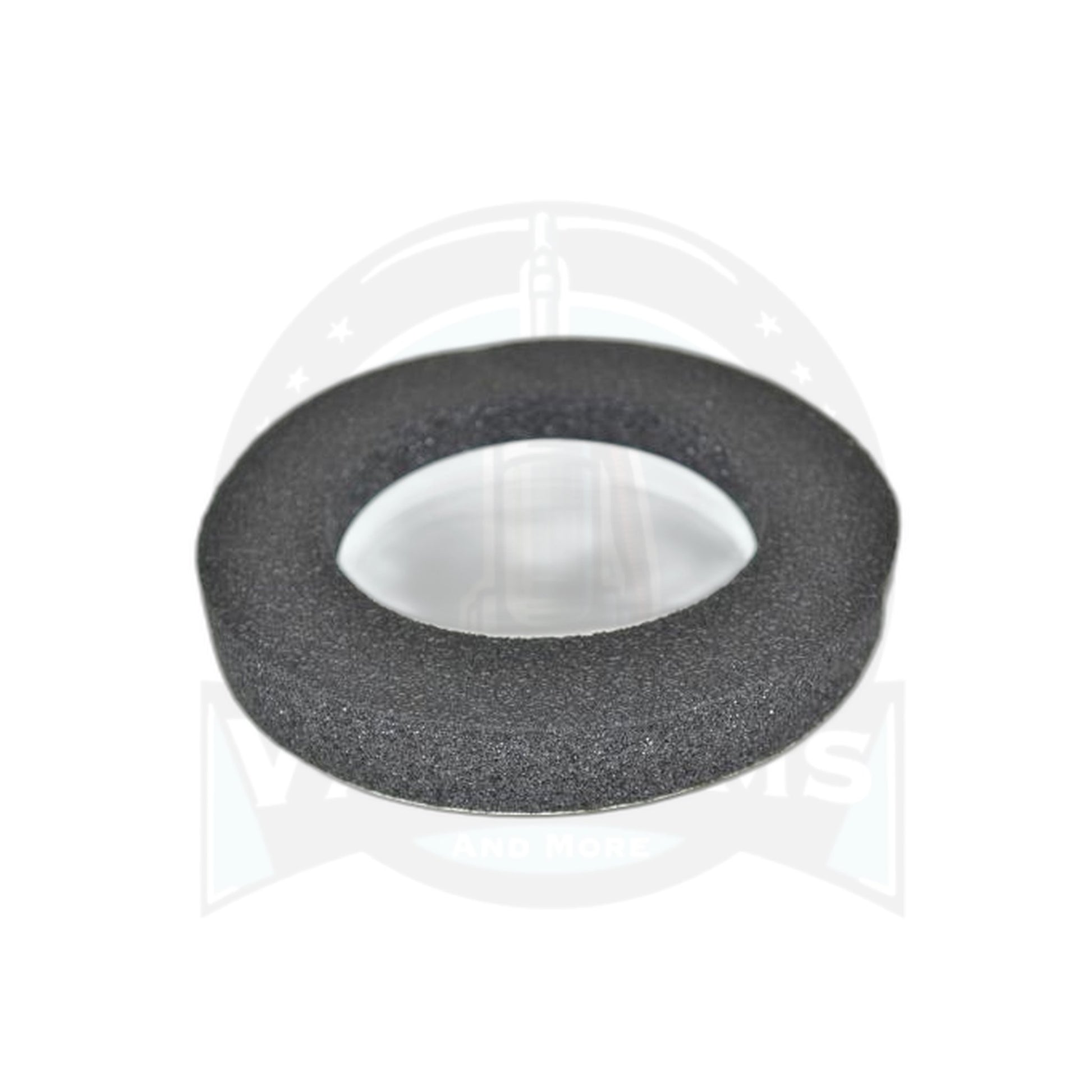

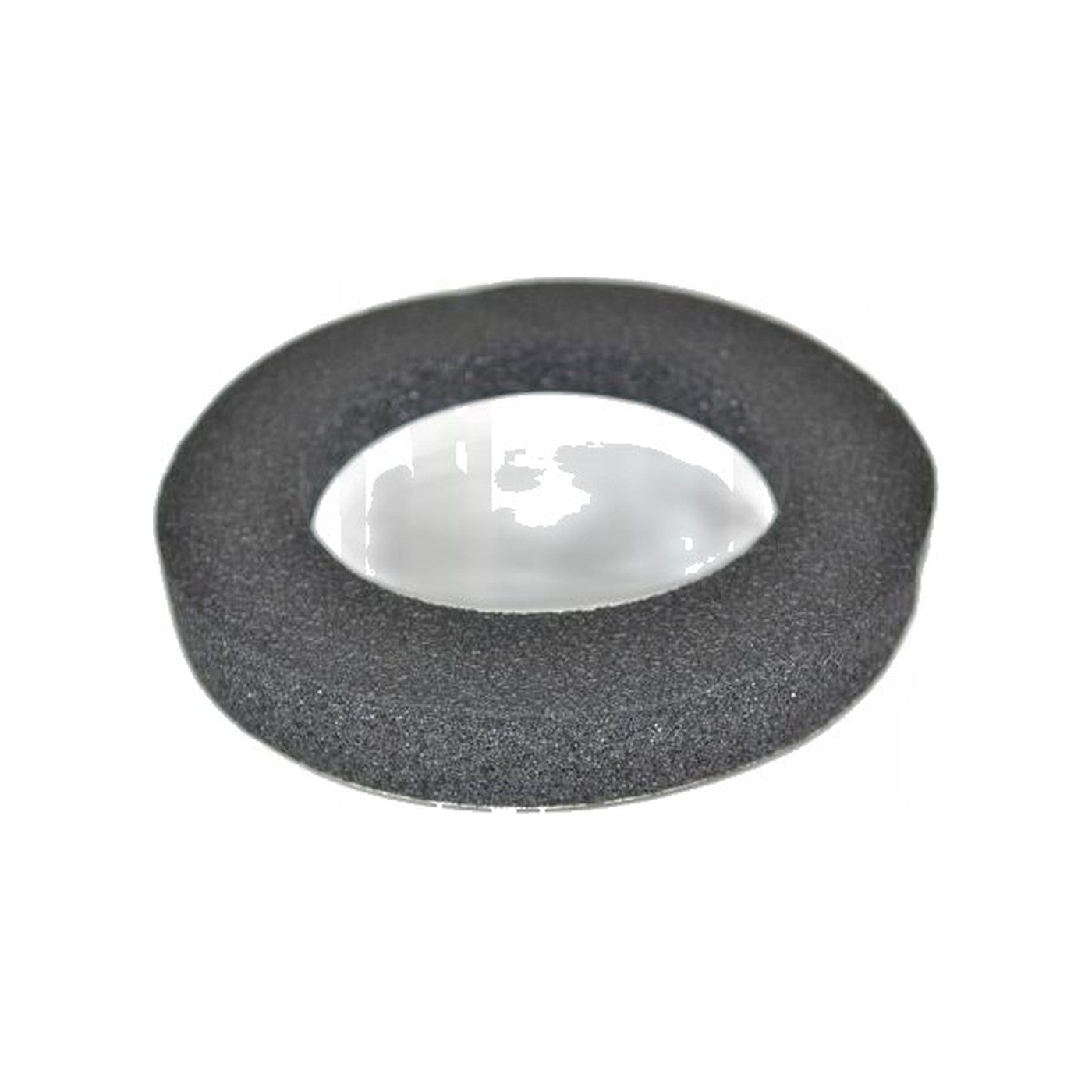

This motor gasket is cataloged by Titan for the TCS4792 and TCS7702 central vacuum power units, part GASCUT20R. It seats between the motor housing and the vacuum's inlet chamber, and its job is simple: keep the air the motor pulls in coming through the intake rather than around it.
A gasket this thin does its work quietly until it fails, and the failure is easy to miss because the unit still runs and still pulls some suction. What changes is efficiency: a compressed or torn spot lets outside air bypass the intake path, so the motor works harder to move the same volume of air through the house's inlet system. Homeowners often notice this first as weaker pickup at the farthest wall inlet rather than at the unit itself.
- Part number: GASCUT20R
- Fits: Titan TCS4792, TCS7702 central vacuum power units
- Function: motor-to-housing seal
- Sold: each
Since the motor has to come apart to reach this gasket, it is worth checking the carbon brushes and feeling for play in the bearing at the same time, so the unit is not opened twice in one year. Confirm the model plate on your power unit reads TCS4792 or TCS7702 before ordering, since Titan uses more than one gasket size across its central vacuum line. A light film of grease or dielectric compound on the new gasket's mating faces during installation helps it seat evenly and makes the next teardown easier as well.
