Lamb Motor 122133-00 - Sing...
$370.99
Product details

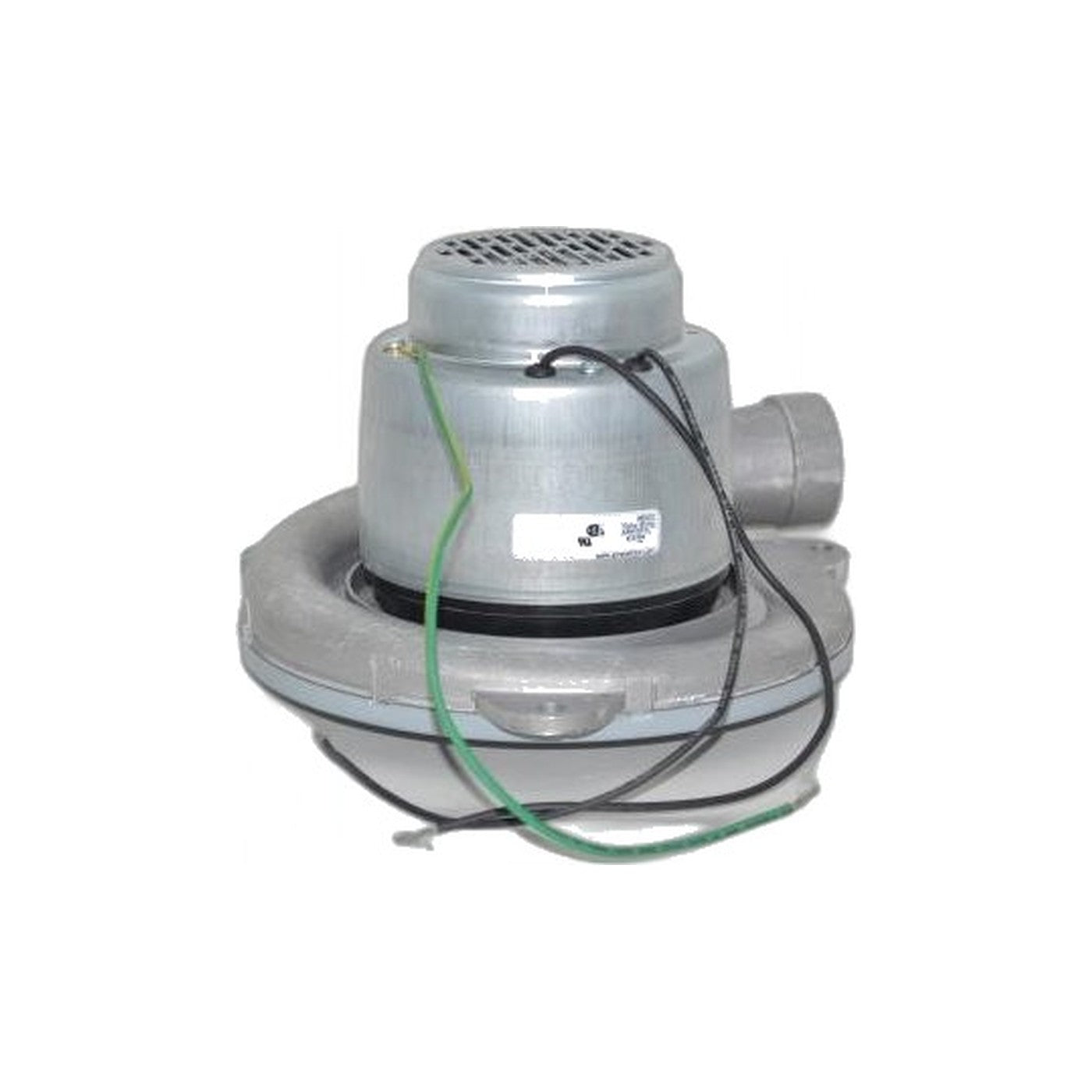

Lamb lists this single-stage, ball-bearing motor for its 8556 power unit: 8.4 inches across the fan housing, wound for 120-volt service, and sold here as part 122133-00.
Single-stage construction puts the whole job on one fan stage, which is why the number on the old motor matters more than its outline does. A motor of the same diameter built with a second stage behind the first behaves differently on the same machine, so the stage count is the first thing to confirm rather than the last, and a photograph of the data plate is worth more than a description of it when you come to order.
Bearings are the part of this motor with the longest run in them and the clearest way of telling you they are finished. The sound goes first, from a steady tone to a whine or a rumble that rises as the machine warms up, and airflow at the hose falls off behind it. A sharp, hot odor after a few minutes of running usually means the brushes or the bearing have gone past the point where anything short of replacement helps.
Cut power at the plug or the breaker before opening anything, since this is mains-wired work, and hand it to a technician if the wiring inside is unfamiliar. Have the old motor in front of you when you order so the frame diameter, the mounting pattern and the direction the exhaust leaves the housing can all be checked against it.
- Part: 122133-00
- Fits: Lamb 8556
- Type: single-stage
- Bearing: ball
- Frame: 8.4 inch
- Voltage: 120V
