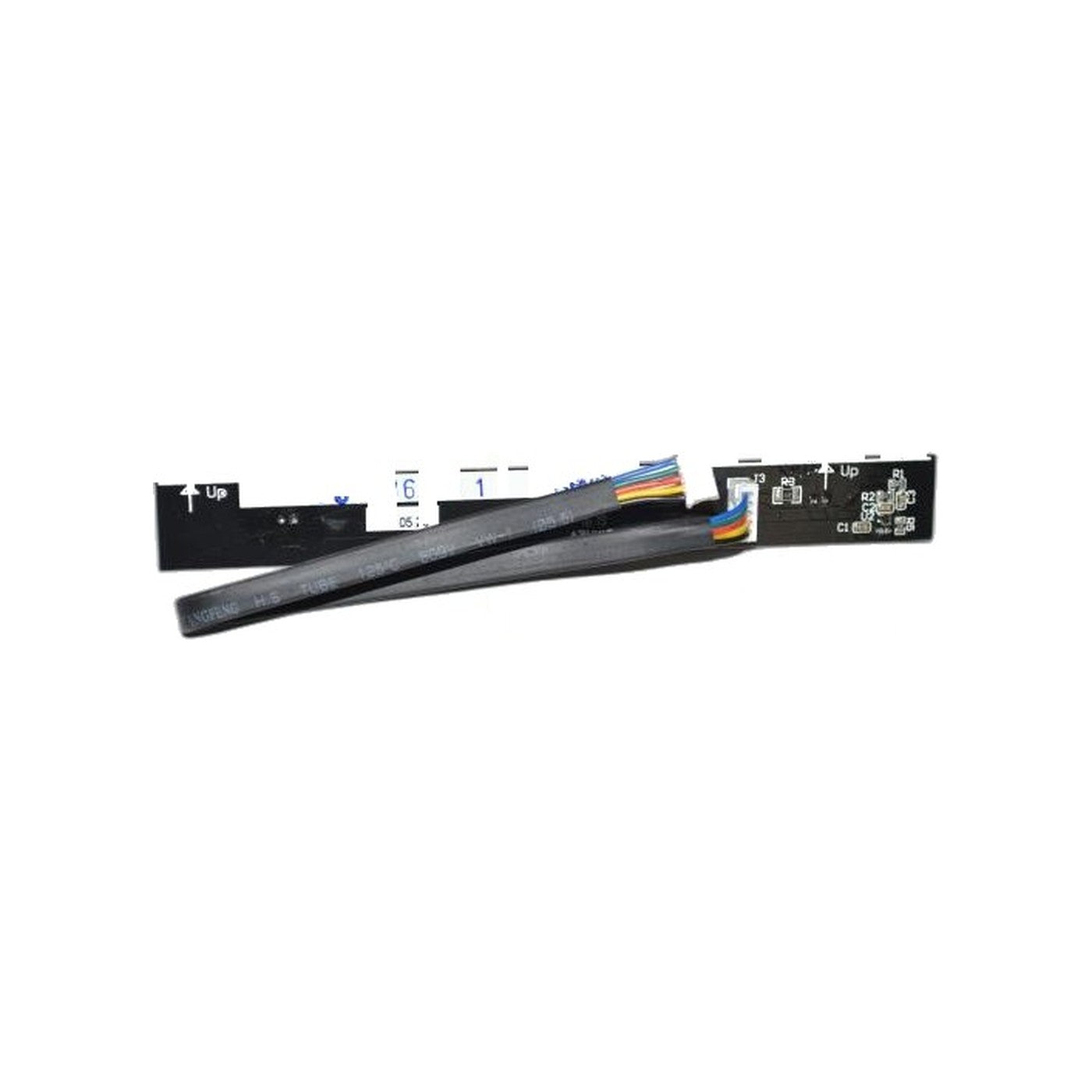

Oreck LED Circuit Board - U...
$31.99
Product details
The headlight and the electronic controls on the Oreck U7000 Pilot upright both depend on one board, part 79086-01. The front LED and the switching behind the motor's electronic functions both route through this single board, so a fault here can range from a small annoyance to a machine that stops responding entirely.
Vibration and heat wear these boards down more often than simple age does. A cracked solder joint tends to produce an intermittent front light, one that dims or cuts out as the machine rolls across a floor, while a fully dead board leaves nothing working at all, no light and no response from the controls. Before assuming the board is at fault, confirm the outlet is live and trace the connector running into it, since that plug works loose over time on a machine that gets carried and set down repeatedly by its handle.
Keep the board away from any moisture during installation and grip it only by its outer edges, since the copper traces on its surface do not tolerate rough contact or a damp cloth wiped too close.
- Part: LED circuit board, 79086-01
- Fits: Oreck U7010ECS, U7020ECBS, U7060ECS, U7070ECS, U7220ECS, U7230ECS, U7250ECS, U7330ECBS
- Function: drives the headlight and electronic controls
- Symptom of failure: intermittent or dead headlight, unresponsive controls
Disconnect the power cord before opening the housing. This Oreck circuit board is built for a direct fit on the models above, with connectors and mounting points that line up without modification, so the swap does not call for any rewiring or trimming.
