Oreck Plastic Handle Detent...
$6.99
Product details

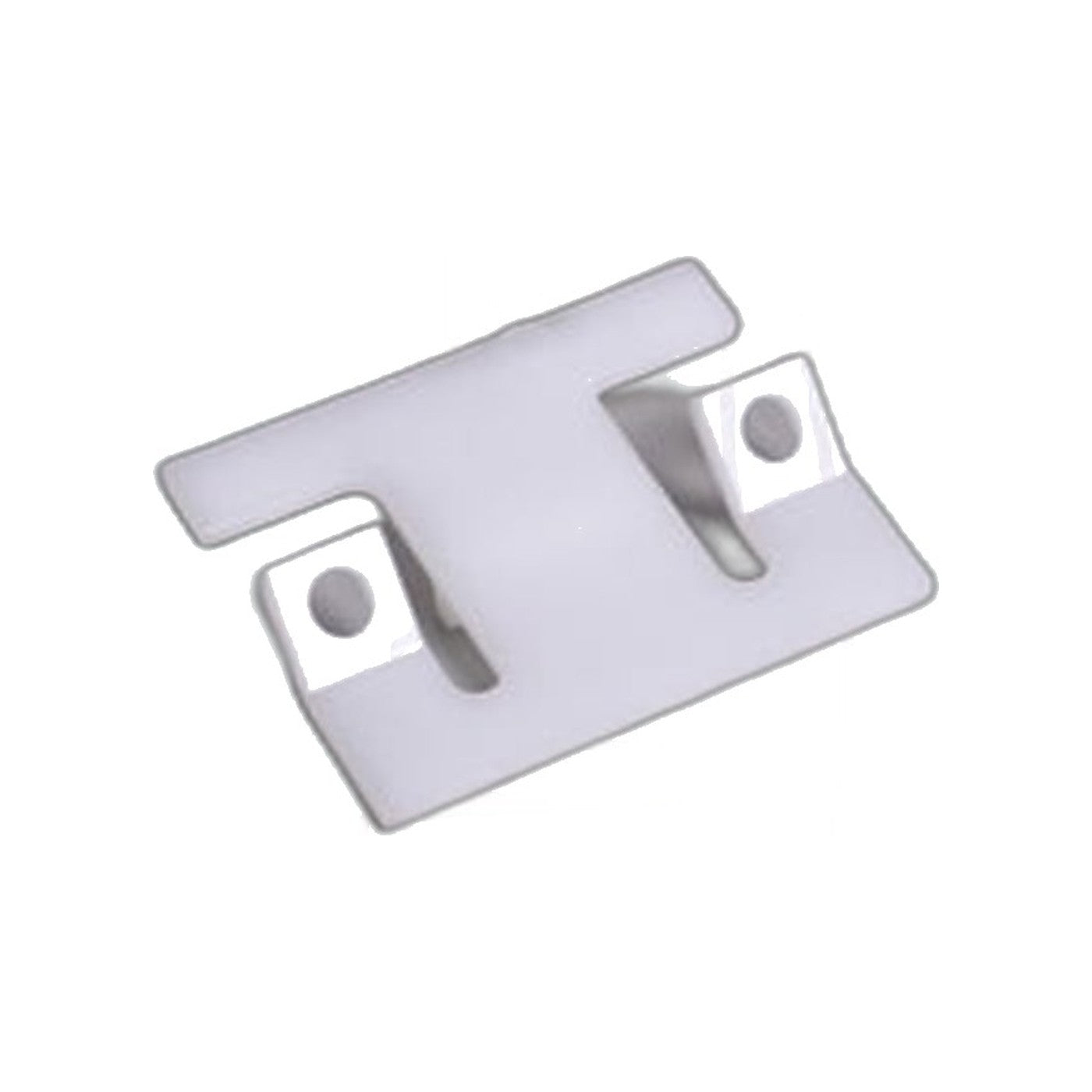

Every time an Oreck upright handle drops into its parked position, a small molded tooth catches it and holds it there until you tip the machine back to clean. That tooth is the plastic detent, and part 430000898 is what you fit when it finally gives out from repeated impact.
Failure shows up two ways. Either the handle no longer stays upright and drifts back down on its own the instant you let go, or the tooth has already sheared clean off and there is no catch left at all. Since this part absorbs a jolt on every single pass with the vacuum, daily use wears it out well ahead of the housing around it.
Confirmed for the XL2700 named in the listing title, this detent also carries across a long run of U-series and XL-series Oreck uprights, listed below. Before removing the old one, note exactly which way it was seated, and match that orientation with the new piece so the catch engages the way the original did.
Cycle the handle release a few times with the housing still open, confirming it locks and drops cleanly before closing everything back up. A detent seated badly produces the same symptom as the failure you were trying to fix.
- Part: 430000898, handle detent
- Fits: Oreck XL2700, U2000E, U2000R, U2000RB-1, U2160HH, U2200RD, U2310RD, U2510RH, U2650HHR, U2740RD, U3120HH, U3640RH, U3710HH
- Function: catches the handle upright, releases it when tipped back
- Change alongside: worth a look if the handle pivot itself feels loose
- Before ordering: check your model number against the list above, since this detent covers a long run of Oreck uprights and a near match will not catch the handle at the angle the machine expects
