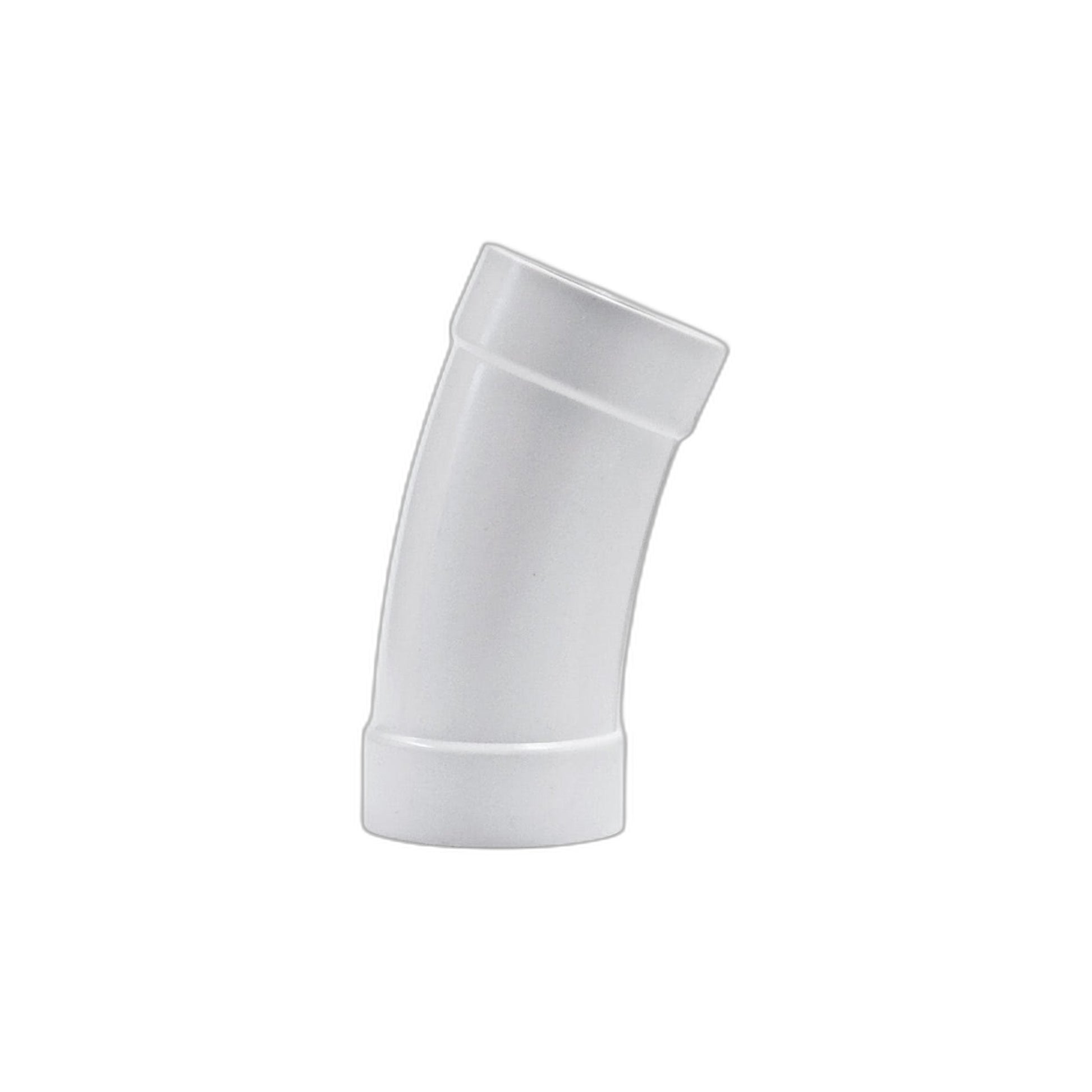

Trovac Retraflex 22.5-Degre...
$9.00
Product details
Part IT202142 is a 22.5-degree elbow built for Retraflex retractable-hose central vacuum piping rather than a standard fixed-hose system. Retraflex pulls the hose itself back through the pipe after use, so its elbows use a very long radius to let the hose glide around the bend instead of catching on a tighter curve.
- Angle: 22.5 degrees, very long radius
- System: Retraflex retractable-hose central vacuum piping
- Material: PVC
Retraflex runs use these wide-sweep elbows throughout, so mixing in a standard short or medium-radius elbow on a Retraflex line risks the hose snagging as it retracts. Keep the whole run on matching very-long-radius fittings rather than substituting a tighter one at a single turn.
A Retraflex system stores the hose inside the pipe itself rather than on a wall-mounted rack, so the entire network of pipe and fittings between the inlet and the power unit has to let the hose travel freely along its length. That is why Retraflex parts are sold and planned as their own matched line rather than as accessories bolted onto a standard hose-and-rack central vacuum.
Order part IT202142 for a 22.5-degree turn on a Retraflex retractable-hose run. Verified against: Trovac catalogue listing for the Retraflex very-long-radius 22.5-degree elbow
