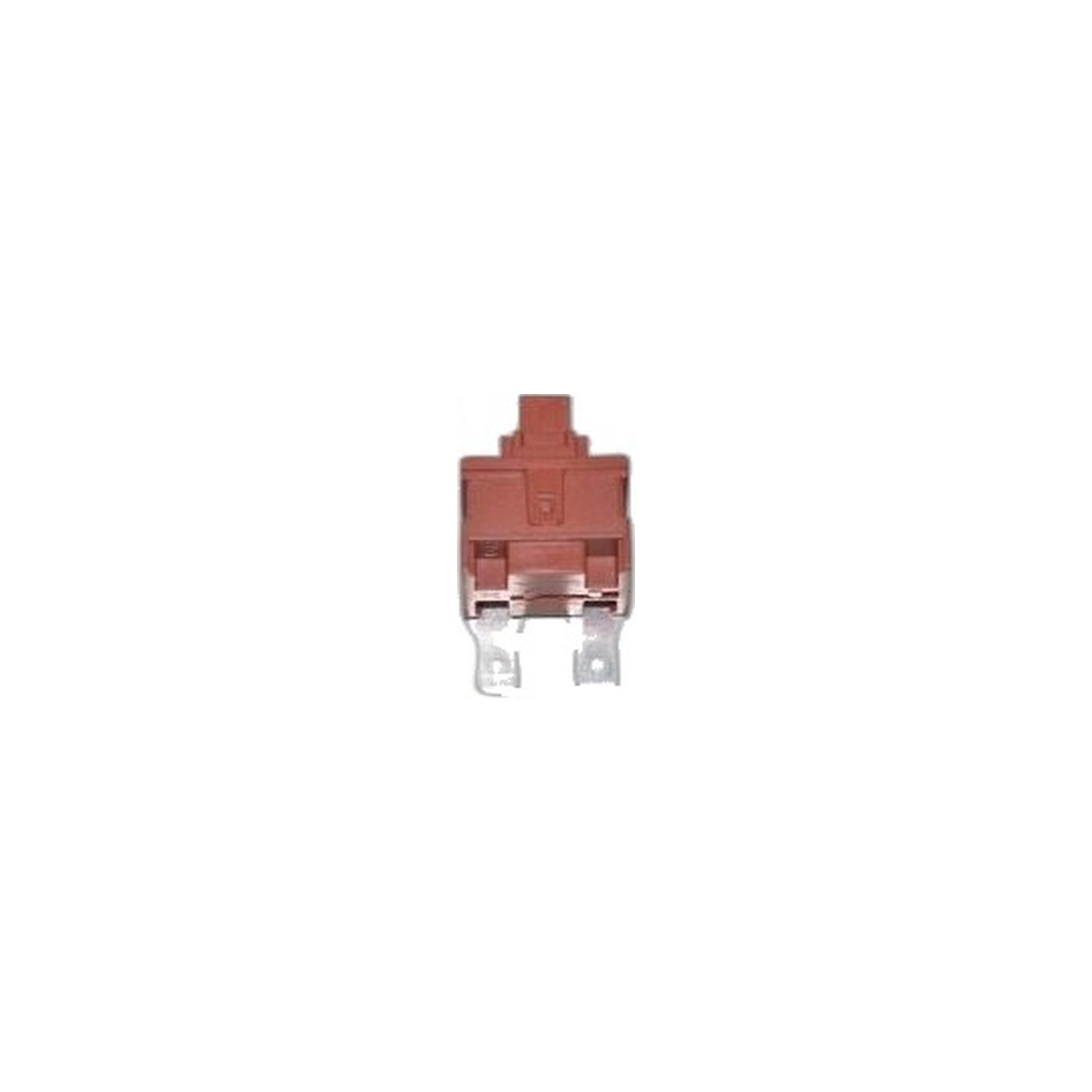

Dyson and Miele Universal On/Off Switch

Part 10-9200-05 replaces the on/off switch on Dyson DC07 and DC14 bagless uprights, a fit specialist listings confirm and cross-reference to Dyson's original switch, part number 910971-01. It is also listed as a fit for the DC25, and separately for Miele canister vacuums broadly. Every start command has to pass through this one point, since it is the rocker or slide control making and breaking the circuit that feeds the motor.

Because Miele has produced canister vacuums across many different chassis and terminal layouts over the years, treat the Miele listing as a starting point rather than a guarantee: pull the old switch and compare the terminal spacing and mounting tabs before ordering, especially on a canister rather than one of the named Dyson uprights.

When it stops making reliable contact, feels loose under your thumb, or will not stay engaged, the vacuum either goes dead or cuts in and out mid pass. The internal contacts pit and burn a little with every switching cycle, and a machine that has sat in a closet for years often shows that same wear even without heavy use. Even where the terminal layout does not match exactly, the failure pattern is the same across bagless uprights and canisters alike. A switch lives through tens of thousands of on and off cycles over its life, and it is one of the few parts on a vacuum that gets touched every single time the machine is used.

• Part: replacement power switch, 10-9200-05, cross-referenced to Dyson's original part number 910971-01
• Fits: Dyson DC07 and DC14 uprights, verified; also listed for the DC25 and Miele canisters, verify terminal fit
• Function: opens and closes the circuit that powers the motor
• Symptom: vacuum will not start, or cuts out and restarts when the rocker is worked
• Tip: take a photo of the wiring layout before you disconnect the old switch

Installing it means basic disassembly and reconnecting a couple of terminals. Leave it to a technician if mains wiring inside the housing is not your territory.
