SEBO Top Casing for D4 Cani...
$49.00
Product details

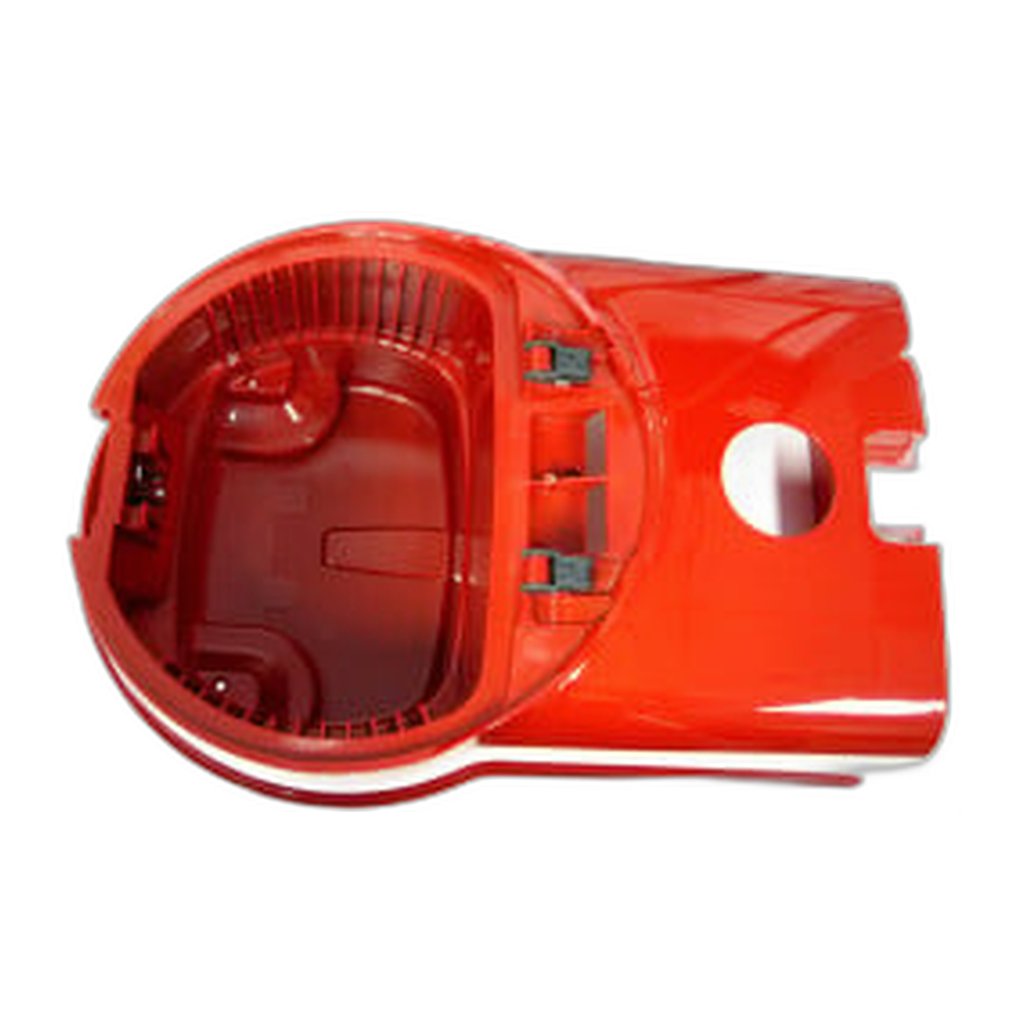

Every bag change loads the lid, its hinge axles and the spring that grips the bag collar, which is why the top half of a hard-worked D4 generally gives out before the bottom does. Part 8003DRER is the red top casing, and it ships with the bag spring 8140ER, the cover axle set 6750ER and the cover hinges with axles 8052ER.
The failures follow the wear. A spring that has lost its tension lets the collar sit loose, so dust bypasses the seal and ends up in the compartment rather than in the bag. Worn axles leave the cover standing proud where it will not latch, and once it does not latch the machine leaks air at the seam and pulls less through the hose. Renewing the shell together with all of its hardware puts the whole lid assembly back to factory tolerance in a single operation instead of three separate repairs spread over a year, each one chasing the symptom the last one exposed.
- Part number: 8003DRER
- Machine: SEBO D4 canister, red
- Hardware in the box: 8140ER bag spring, 6750ER cover axle set and 8052ER hinges with axles
- Function: upper shell carrying the bag compartment cover, its hinges and the bag spring
- Replace when: the lid will not latch, the collar sits loose, or the shell is cracked
- Related: 8001DRER bottom casing and 8005DRER bag cover for the same red D4
- Note: other D-series finishes use their own casing part numbers
Work the bag collar in and out a few times after assembly to confirm the spring holds it square, and check the cover closes level along its whole edge before the machine goes back into service. Searches for a SEBO D4 top casing, a red D4 upper shell or a D4 bag spring and hinge kit lead here. Ships in 2-5 business days.
