• Trovac 122580-27 Central Vacuum Motor, 240V
1 1

Trovac

Trovac 122580-27 Central Vacuum Motor, 240V

Trovac 122580-27 Central Vacuum Motor, 240V

$176.99 USD
$176.99 USD
Sale Sold out
Shipping calculated at checkout.

TM258027
Authorized Trovac Dealer Factory warranty, extended free where we can
Free Shipping On Orders $100+
Secure Checkout SSL Encrypted

Shipping Information

We offer FREE shipping on orders of $100 or more within the continental United States.

Orders typically ship out from our store within 1-5 business days, and most orders arrive 2-11 business days after they are placed. Special order items may require additional processing time.

Returns & Exchanges

We offer a 35-day return policy on all unused items in original packaging. A Return Authorization (RA#) is required.

To initiate a return, please contact our customer service team. Return shipping costs may apply for non-defective items.

Warranty Information

All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.

With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.

View full details

Trovac 122580-27 Central Va...

$176.99

Product details

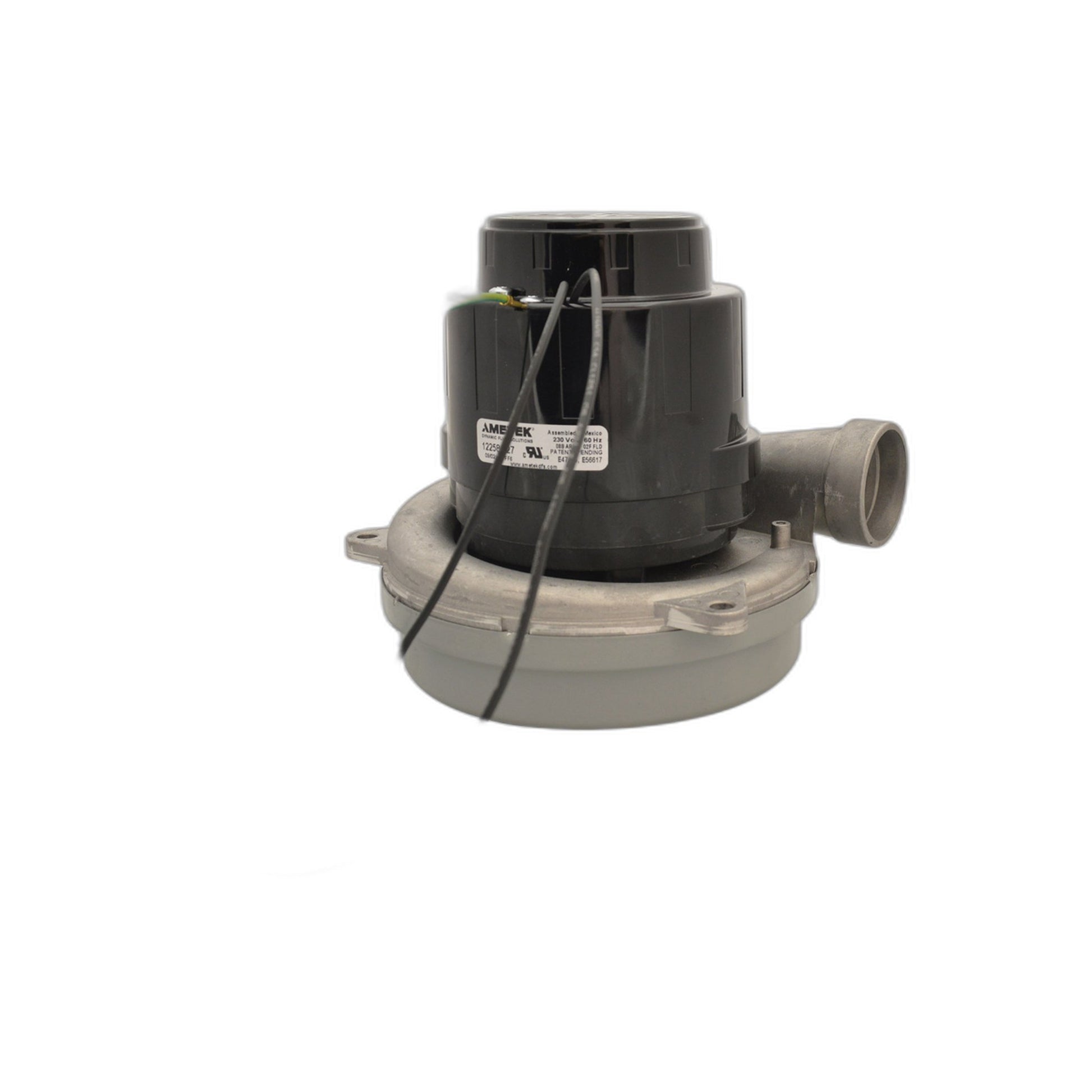

Part TM258027 is Trovac's 240V-wired version of the Ametek/Lamb 122580-27 central vacuum motor, sold as a bare motor for rebuilding a 240V power unit.

Ametek/Lamb's own spec sheet for the 122580-27 rates the motor at 230 V, which is within normal tolerance for equipment wired to a 240V household circuit, and lists it as a two-stage, tangential bypass motor built on the 6.6 Premier Platform in the High Performance flow class, drawing 1,500 W with a 6.6 in frame. The build note for this exact part number describes it as the version without a thermal protection device, with added power lead terminals and a curved carbon brush compared to the base -00 casting. Being a bare motor, it ships without the exhaust tube, mounting gasket, or wiring harness that came off the original, so plan on transferring or replacing those parts as part of the same job rather than expecting the new motor alone to restore full suction.

  • Motor: Ametek/Lamb 122580-27, tangential bypass, 2-stage
  • Rating: 230 V (Ametek spec), 1,500 W, 6.6 in frame
  • Wiring: supplied for 240V systems
  • Brush kit: 8505969-50 (replacement)

Verify the 122580-27 part number and mounting against your existing motor before ordering TM258027, since this is the bare motor without an exhaust tube fitted.

Verified against: Ametek/Lamb model data for 122580-27
