Trovac Assembled Tangential...
$180.99
Product details

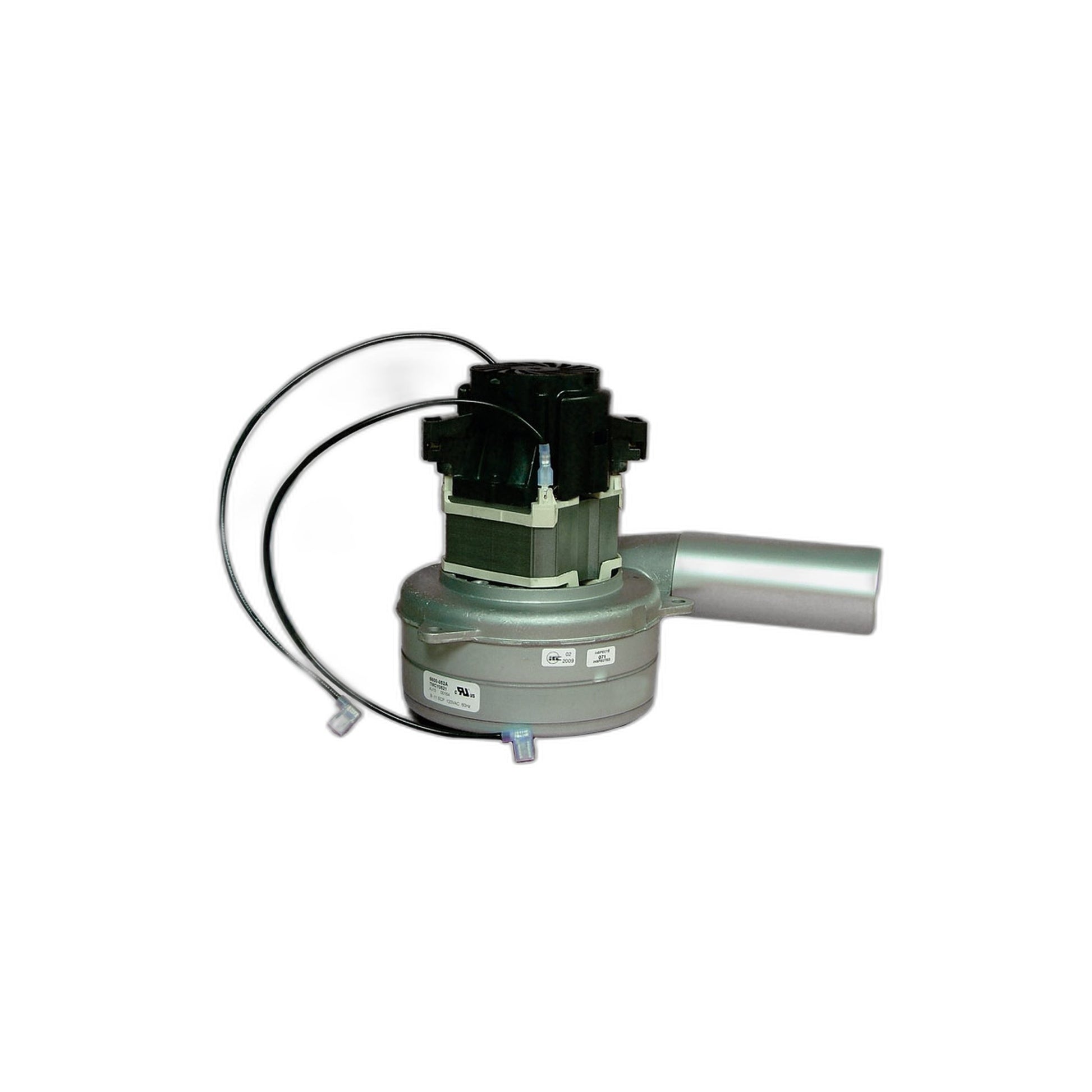

This Trovac motor, part FMCY052102, is an assembled tangential bypass unit rated at 605 air watts on 120 V, a two-stage design with a 5.7 in frame.
Buying it assembled typically means less bench work than sourcing a bare motor and matching hardware separately. The tangential bypass fan keeps its cooling air on a path apart from the suction stream, so the airflow pulling debris through your piping never doubles as motor cooling. Because the motor runs for as long as the system is switched on, a rising pitch, a new rattle, or a housing that runs noticeably hotter than before are usually the earliest signs that the bearings or brushes are wearing out, ahead of any drop in suction you would notice at the hose.
- Type: Tangential bypass, 2-stage, assembled
- Rating: 120 V, 605 air watts
- Frame: 5.7 in
- Supplied with: 4.5 in aluminum exhaust tube, motor wire with connector
Trovac supplies FMCY052102 with a 4.5 in aluminum exhaust tube fitted and a motor wire already terminated in a connector, which is what makes it an assembled unit rather than a bare motor. Central vacuum motors differ in mount and exhaust routing between manufacturers, so match this part to your original motor or your unit's parts diagram before ordering.
