Trovac Central Vacuum Motor...
$6.99
Product details

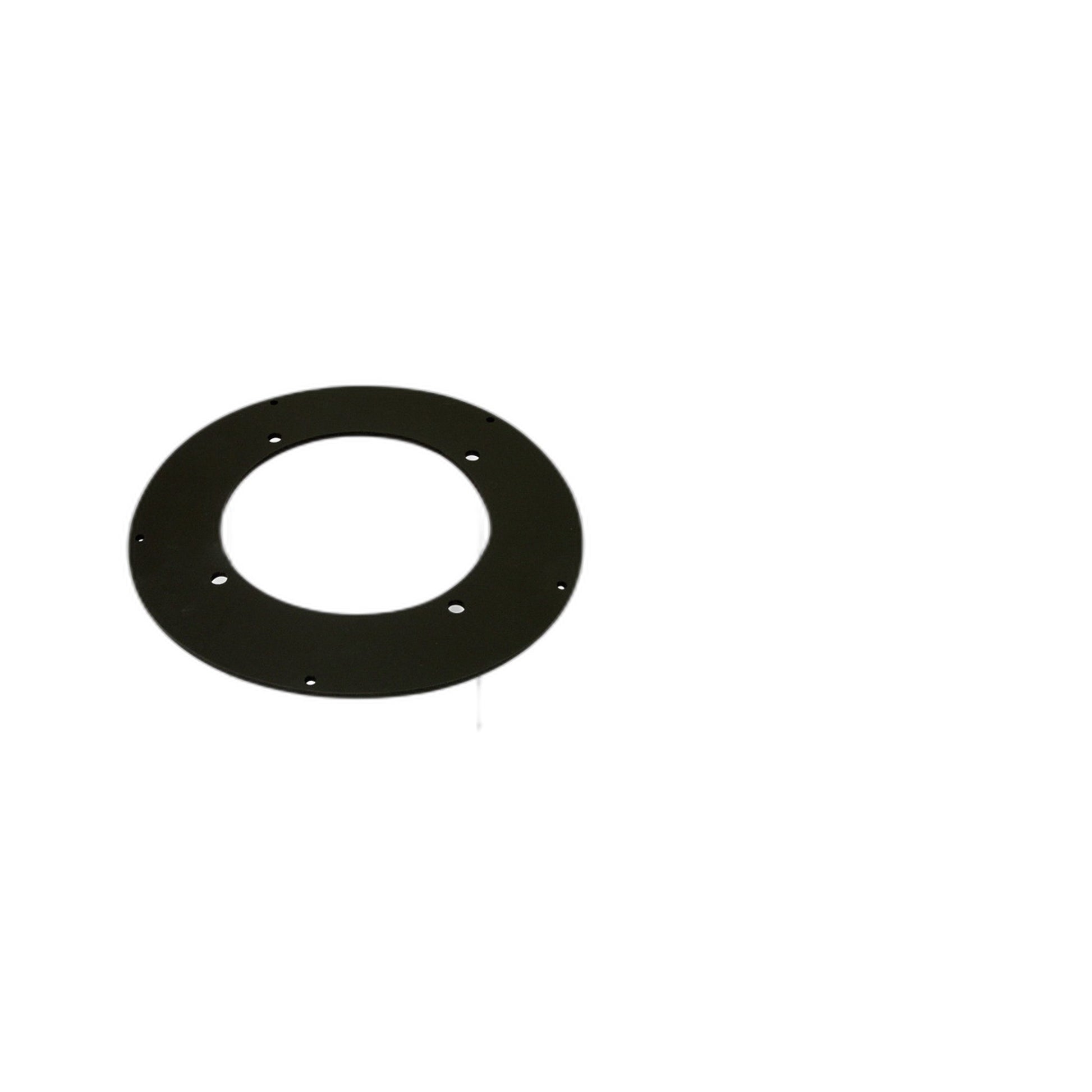

Part GASCUT29 is a rubber gasket that seats a motor into the body of a central vacuum power unit, closing the gap around the motor housing so the unit's suction pulls through the motor rather than leaking past its edge. Trovac publishes it at 5.5 in. (14 cm) outside diameter, 3.5 in. (8.9 cm) inside diameter and 7/8 in. (22 mm) thick, for the lower motor position.
Gaskets in this position take steady heat from the motor and compress a little more with every year of service, until eventually one goes flat, cracks, or tears at a seam and the unit starts losing suction even though the motor itself still runs. Because the leak happens right at the seal rather than anywhere visible, a drop in performance with no other obvious cause is often traced back here.
- Part: GASCUT29
- Material: rubber
- Size: 5.5 in. OD x 3.5 in. ID x 7/8 in. thick
- Position: lower motor, seats to the bottom motor bracket
- Function: motor-to-body seal
Compare the gasket already in your unit against GASCUT29 for outside diameter, inside diameter, and thickness before ordering, since central vacuum motors are mounted with gaskets of noticeably different sizes. Once you have the right size confirmed, the gasket itself seats by hand with no adhesive or fasteners needed, so the fit is the only thing worth double-checking.
