Product details

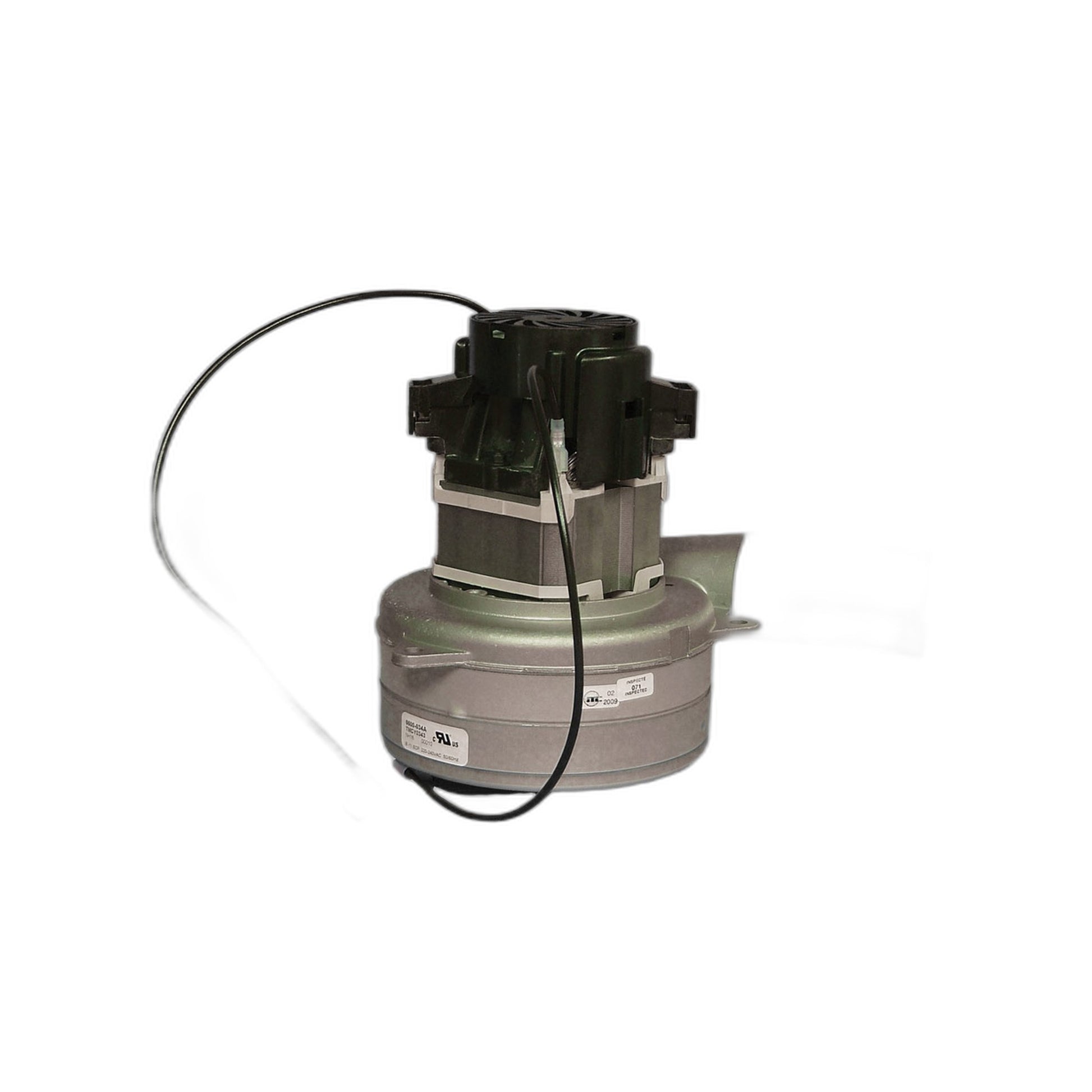

This is a replacement tangential electro-motor built for 240V central vacuum power units, part FMCY034301, supplied with connection wires already attached so it drops into the wiring harness without splicing new leads. The motor's profile measures 3.2 in., which sets how much clearance it needs inside the canister.

A tangential motor draws air through the fan and discharges it off to one side of the housing rather than straight through the shaft, a layout used across central vacuum power units built to run quietly over long duty cycles. On the bench, a motor that has lost suction, developed a grinding bearing noise, or stopped starting altogether is usually past the point of repair and gets swapped rather than rebuilt.

  • Part: FMCY034301
  • Supplied with: connection wires
  • Voltage: 240V
  • Profile: 3.2 in.
  • Trovac lists it for: E105, GX7515PA, DL7515PA, HX7515PA, HD7515

Before ordering, check the motor already in your unit for the same 240V rating, the 3.2 in. profile, and a matching mounting pattern, since central vacuum power units are built around motors of several diameters and voltages. Trovac lists this motor for its E105, GX7515PA, DL7515PA, HX7515PA and HD7515 power units.
