Trovac Vaculine 90-Degree L...
$6.99
Product details

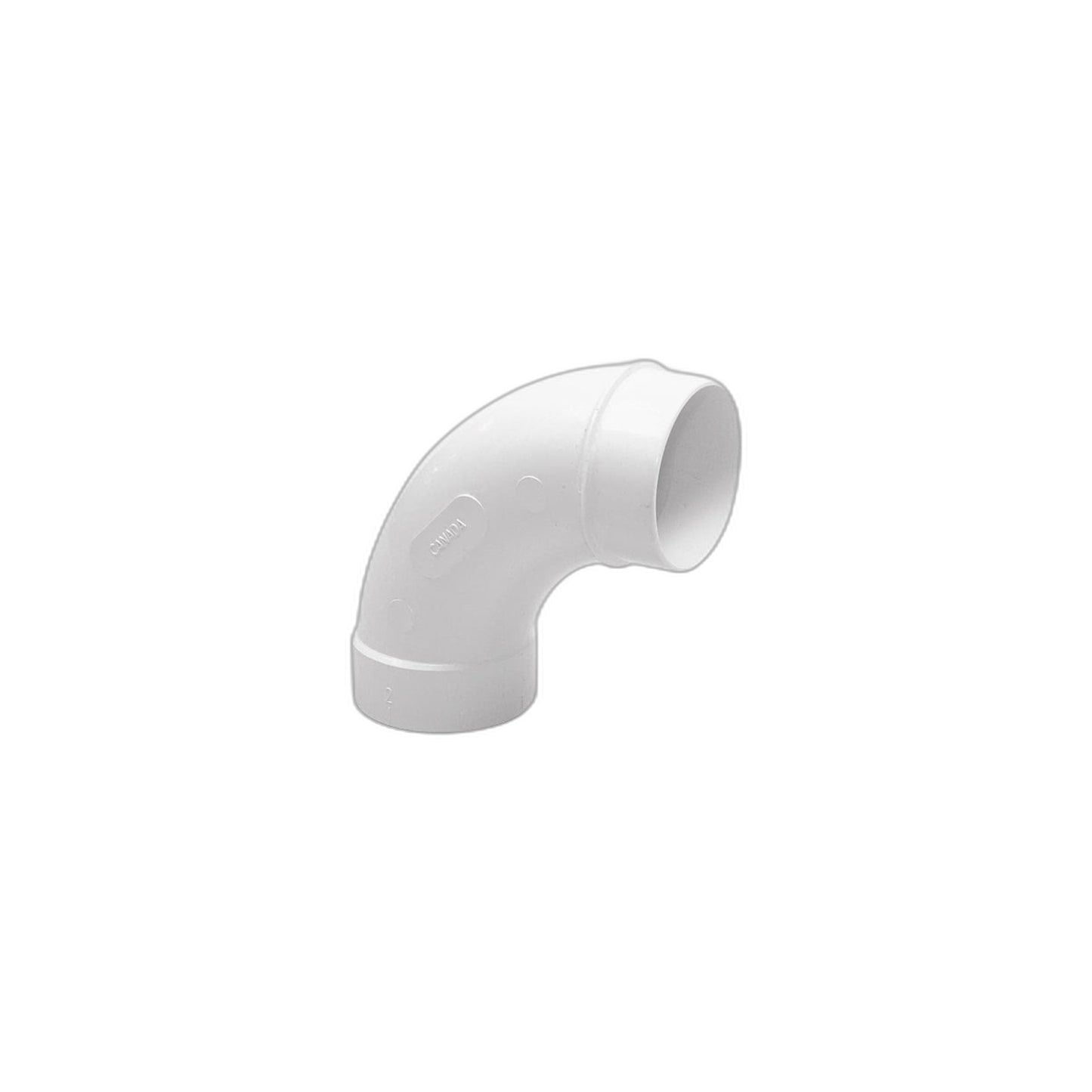

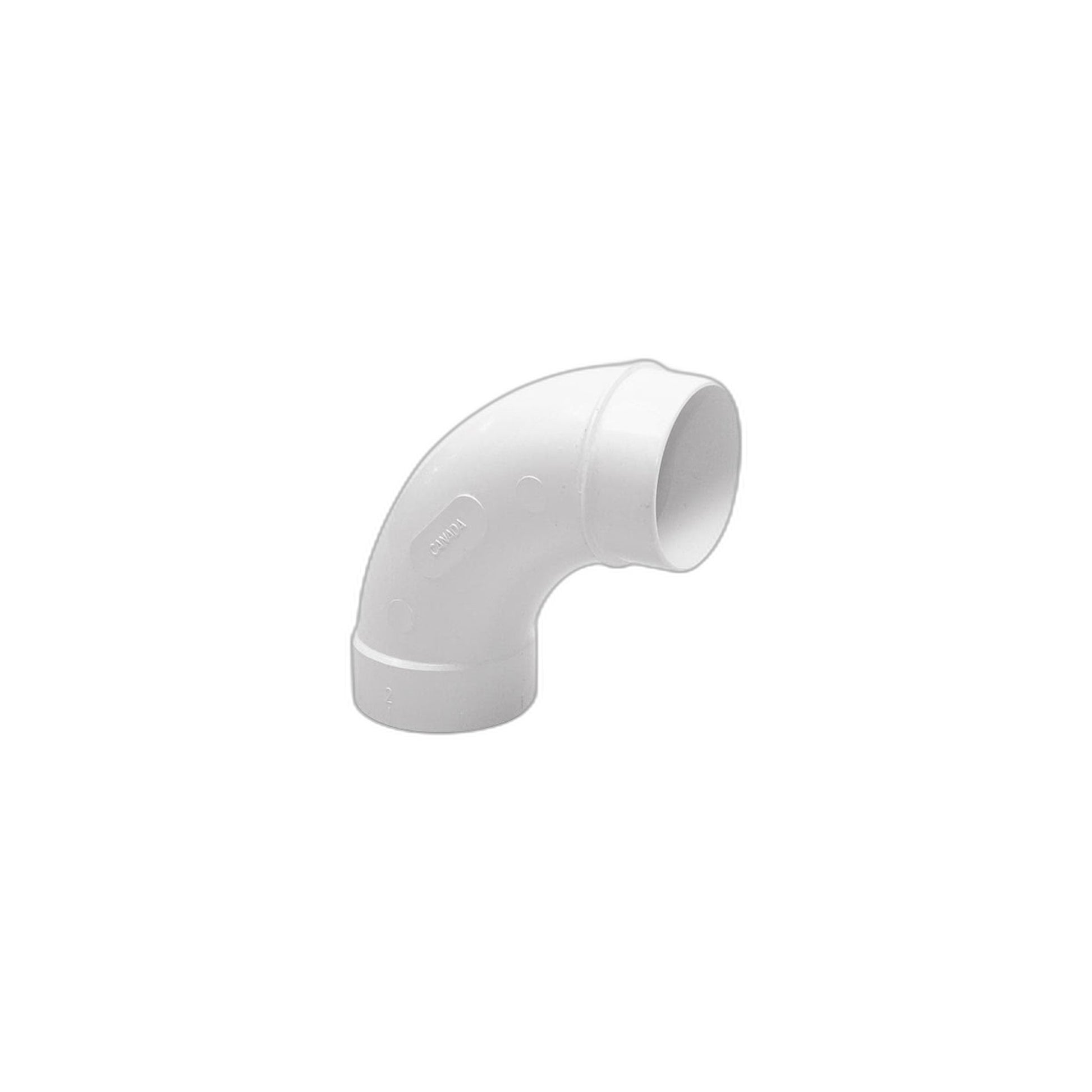

Part TF5511BV makes a 90-degree turn in a central vacuum PVC run using a long-radius sweep rather than a tight bend, which keeps debris moving through the turn instead of catching at the corner. One end is a spigot that slides directly into the next fitting, the other a standard female socket.
- Angle: 90 degrees, long-radius sweep
- Size: 2 in. PVC
- Ends: male/female (spigot x socket)
- Color: white
Long-radius sweeps are generally favored on main trunk lines carrying the heaviest debris load, since the wider curve resists clogging better than a short-radius 90-degree elbow at the same angle. The spigot end lets it connect straight to a tee or wye without an added coupling.
Dry-fit the spigot end into the mating fitting before cementing, since PVC solvent weld sets almost immediately once the pieces are pushed together. Support the pipe on either side of a long-radius sweep like this one, since its wider curve takes up more depth than a tighter elbow at the same angle.
Order part TF5511BV for a long-radius 90-degree turn with a spigot end, and check the clearance behind the wall or fixture before committing to the wider curve a long-radius sweep needs. Verified against: Trovac catalogue listing for the Vaculine long-radius sweep elbow, spigot end
