SEBO Bottom Casing for AIRB...
$53.00
Product details

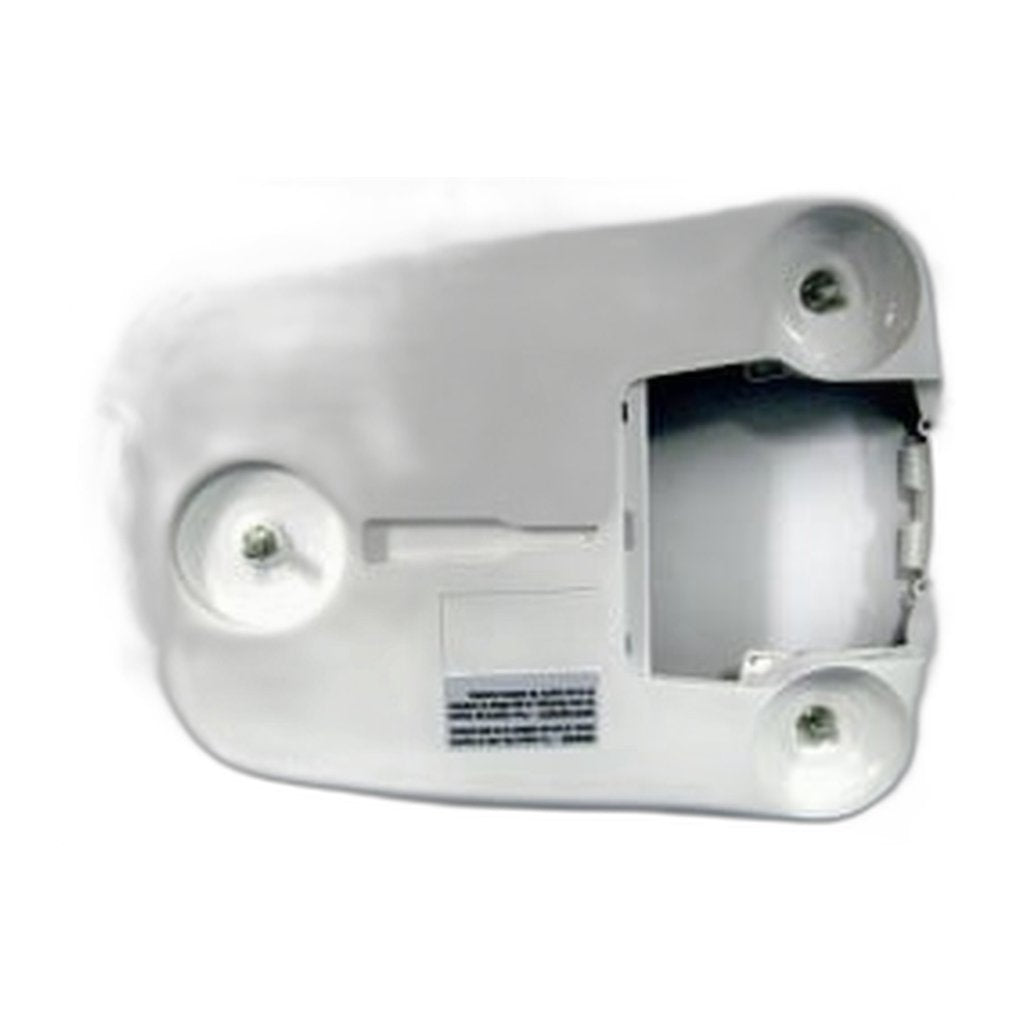

Two AIRBELT canisters share one white base. 8335WEER appears at position 1 of SEBO's AIRBELT E diagram and fits both the SEBO AIRBELT E1 KOMBI and the SEBO AIRBELT E3 Premium, forming the underside of the machine and the mounting platform for what sits inside it.
White plastic makes the damage obvious — scuffing along the edges, stress whitening near the fixings, an outright split after a knock. The split is the one worth acting on. A broken boss lets an internal assembly move, and movement under suction load walks the crack further open every time the machine is used. A fresh moulding gives everything firm anchor points again and lets the shell close square along its seam.
The matching white upper half is 8328WEER, which covers the same two canisters, and the white filter cover and exhaust air filter cover listed on the same sheet are 8224WEER and 8249WEER. WE is the shade code common to all of them, so a number that reads correctly apart from those two letters will still arrive in the wrong finish. Nearby on the diagram, positions 2 and 3 are the front and rear castors, 8275GSER and 8276GSER.
Fitting is a mechanical job rather than an electrical one: the internals unbolt from the old base, transfer to the new moulding, and the top casing closes down against it. Reuse sound fixings and order replacements for any that strip, since SEBO lists the screws as their own line items, singly and in ten-packs.
- Fitment: SEBO AIRBELT E1 KOMBI and SEBO AIRBELT E3 Premium
- Shade: white
- Diagram position: 1 on the AIRBELT E sheet, listed as bottom casing, white
- Part number: 8335WEER
- Mounts to: the top casing 8328WEER
- Related white parts: 8224WEER filter cover, 8249WEER exhaust air filter cover
Genuine SEBO service part, ships in 2-5 business days.
