Find the part. Keep the vacuum.
SEBO AIRBELT E3 schematics and parts
Choose your E3 color and assembly, then tap a blue reference number or part number to open its product page.

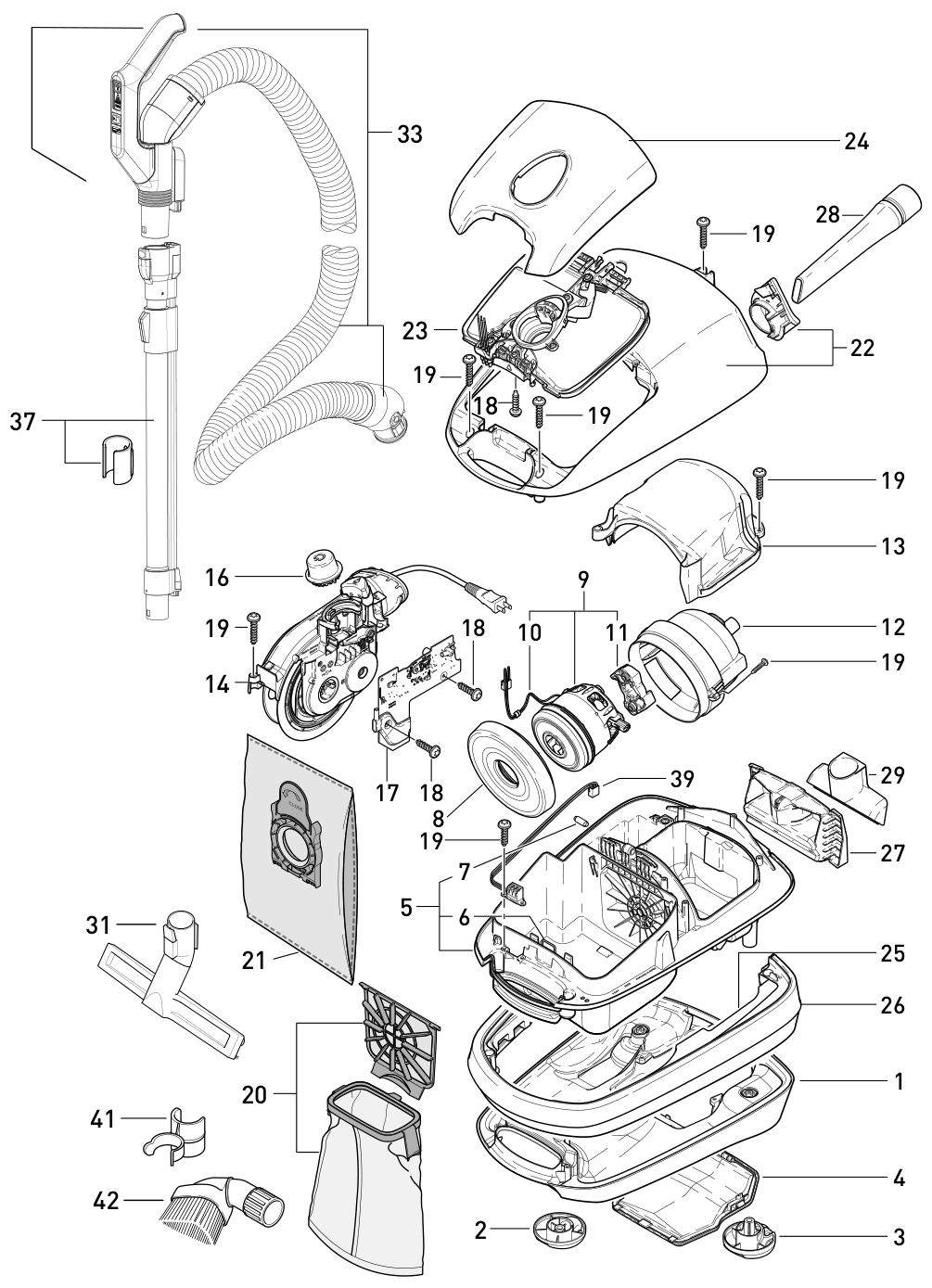

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT E3 parts on this page (82)
- SEBO Bottom Casing for AIRBELT E1 KOMBI and E3 Premium — White — SKU 8335WEER
- SEBO Front Castor for AIRBELT E1, E2 and E3 Canisters - Gray Black — SKU 8275GSER
- SEBO Rear Castor for AIRBELT E1, E2 and E3 Canisters - Gray Black — SKU 8276GSER
- SEBO Exhaust Filter Cover for AIRBELT E1 KOMBI and E3 Premium - White — SKU 8249WEER
- SEBO Middle Casing with Cover Latch Spring and Bolt for AIRBELT E1, E2 and E3 — Gray Black — SKU 8230ULER
- SEBO Cover Latch Spring with Retainer for AIRBELT E1 KOMBI, E2 TURBO and E3 Premium — SKU 7045ER
- SEBO Bolt 20 x 5/7 for AIRBELT E1, E2 and E3 Canisters — SKU 8053ER
- SEBO Motor Mount Gasket for AIRBELT E1, E2 and E3 Canisters — SKU 8212ER
- SEBO 120 V Suction Motor for AIRBELT E1, E2 and E3 Canisters — SKU 8243ER
- SEBO Internal Wire Lead for AIRBELT E1, E2 and E3 Canisters — SKU 8282ULER
- SEBO Motor Support Cradle for AIRBELT D and E Series Canisters — SKU 8045ER
- SEBO Noise Limiting Cover for AIRBELT E1, E2 and E3 Canisters — SKU 8220ER
- SEBO Motor Cover for AIRBELT E1, E2 and E3 Canisters — SKU 8289ER
- SEBO Cord Rewind Unit for AIRBELT E1, E2 and E3 Canisters — AM Plug — SKU 665633ER
- SEBO On/Off Button Assembly for AIRBELT E3 Premium — Gray Black — SKU 8339ER
- SEBO Printed Circuit Board for AIRBELT E3 Premium — SKU 8296ER
- SEBO Filter Set for AIRBELT E1, E2 and E3 Canisters — SKU 8322AM
- Genuine SEBO 8300AM AIRBELT E1, E2 & E3 Vacuum Bags – 8 Pack — SKU 8300AM
- SEBO Top Casing for AIRBELT E1 KOMBI and E3 Premium — White — SKU 8328WEER
- SEBO Top Cover Inner Part for AIRBELT E3 Premium — SKU 8341ER
- SEBO Front Bumper for AIRBELT E1, E2 and E3 Canisters — SKU 8237ER
- SEBO AIRBELT Textile for AIRBELT E1, E2 and E3 — Gray Black, Solid — SKU 8221AM01
- SEBO Support for AIRBELT E1, E2 and E3 Canisters — Gray Black — SKU 8213GSER
- SEBO Crevice Nozzle for AIRBELT D and E Series — Gray/Black — SKU 8066GS
- SEBO Upholstery Nozzle for AIRBELT E Series — Gray/Black — SKU 8210GS
- SEBO Hose and Handle Assembly with Dual Controls for AIRBELT E3 Premium — SKU 8547AM
- SEBO Telescopic Wand for K3, C3.1, D4 and E3 - Gray and Black — SKU 60237UC
- SEBO Electro-Hose Cabling Set for AIRBELT E3 Premium — SKU 8320ER
- SEBO Dusting Brush Clip for AIRBELT K and AIRBELT E Canisters — Gray Black — SKU 6694GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO ET-1 Power Head Chassis — Gray Black — SKU 2324GS
- SEBO ET-1 Power Head Bumper — Gray Black — SKU 2302GS
- SEBO Left-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2314GS
- SEBO Toothed Brush Belt 333 3M HTDII-6 for FELIX, DART, ET-1/ET-2 and 370 COMFORT — SKU 2923
- SEBO 5010AM Brush Roller – 12-Inch Standard Bristle — SKU 5010AM
- SEBO Right-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2313GS
- SEBO Spring for the Axle Adjustment Assembly — ET-1 and ET-2 Power Heads — SKU 2929
- SEBO Pile Adjustment Assembly for ET-1 and ET-2 Power Heads — Gray Black — SKU 2316GS
- SEBO Access Door with Axle and Spring for ET-1 and ET-2 Power Heads — Orange — SKU 2909VO
- SEBO Rear Bottom Plate for ET-1 Power Heads — Gray Black — SKU 2304GS
- SEBO Pile Adjustment Knob for ET-1 and ET-2 Power Heads — Gray Black — SKU 2931GS
- SEBO Power Head Wheel Assembly for ET-1 and ET-2 — Gray Black — SKU 2306GS
- SEBO Foot Pedal with Axle and Spring for FELIX, ET-1, ET-2 and DISCO — Orange — SKU 2937OR
- SEBO Complete Swivel Neck for ET-1 and ET-2 Power Heads — Gray Black — SKU 2307GS
- SEBO Swivel Neck Wiring for ET-1, ET-2 and DISCO Power Heads — SKU 0876ER
- SEBO Back Cover for the TS-Neck — FELIX, ET-1, ET-2 and DISCO, Gray Black — SKU 2947GS
- SEBO Metal Bearing Segments for the TS-Neck Swivel — 6 Piece Set — SKU 2950ER
- SEBO Telescopic Tube Release Button with Leaf Spring and Cover — SKU 6480ER
- SEBO Release Button Cover for FELIX, ET-1, ET-2 and DISCO Swivel Necks — Gray Black — SKU 2952GS
- SEBO Swivel Neck Slide for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2945GS
- SEBO TS-Neck Socket Cover for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2951GS
- SEBO Screw F 3.9 x 9.5 (DIN 7981) for ET-1 and ET-2 Power Heads — Single — SKU 01027
- SEBO Swivel Neck Bearing for FELIX, DART, ET-1, ET-2 and DISCO — SKU 2954
- SEBO Right-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2311
- SEBO Left-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2312
- SEBO Micro Safety Switch with Wiring for ET-1 and ET-2 Power Heads — SKU 0880
- SEBO Swivel Neck Support Axle for ET-1 and ET-2 Power Heads — SKU 2928
- SEBO 175 W Brush Motor with Pulley for ET-1 and 370 COMFORT Power Heads — SKU 2973ER
- SEBO Carbon Brush Set for ET-1, ET-2 and DISCO Power Head Motors — SKU 05141S
- SEBO 175W Printed Circuit Board for ET-1 Power Heads — SKU 2684ER
- SEBO White Power Head Cover for ET-1 Power Heads Without Switch — SKU 20335WEET
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO Motor Pulley for ET-1, ET-2 and 370 COMFORT Power Heads — SKU 2319
- SEBO Left Lens for ET-1 and ET-2 Power Heads — Switchless Version — SKU 20955
- SEBO Brush Light Lens, Right Hand, for ET-1 and ET-2 Power Heads — SKU 2956
- SEBO Bottom Casing for AIRBELT E3 Premium — Red — SKU 8335DRER
- SEBO Exhaust Filter Cover for AIRBELT E3 Premium - Red — SKU 8249DRER
- SEBO Top Casing for AIRBELT E3 Premium - Red — SKU 8328DRER
- SEBO Filter Cover for AIRBELT E3 Premium — Red — SKU 8224DRER
- SEBO Red Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337DRET
- SEBO Bottom Casing for AIRBELT E3 Premium — Graphite — SKU 8335GSER
- SEBO Exhaust Filter Cover for AIRBELT E3 Premium - Gray Black — SKU 8249GSER
- SEBO Top Casing for AIRBELT E3 Premium — Graphite — SKU 8328GSER
- SEBO Filter Cover for AIRBELT E3 Premium — Graphite — SKU 8224GSER
- SEBO AIRBELT Textile for AIRBELT E3 Premium — Black and Silver Stripes — SKU 8221AM10
- SEBO Pile Adjustment Knob in Silver for ET-1 and ET-2 Power Heads — SKU 2931SB
- SEBO Graphite Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337GSET
- SEBO Bottom Casing for AIRBELT E3 Premium — Black — SKU 8335SWER
- SEBO Exhaust Filter Cover for AIRBELT E3 Premium - Black — SKU 8249SWER
- SEBO Top Casing for AIRBELT E3 Premium — Black — SKU 8328SWER
- SEBO Filter Cover for AIRBELT E3 Premium — Black — SKU 8224SWER
- SEBO ET-1 Power Head Cover — Black, Switchless Version — SKU 20337SWET
