SEBO Internal Wiring HS, Complete, for FELIX Premium and FELIX 2 Premium — New Configuration
SEBO Internal Wiring HS, Complete, for FELIX Premium and FELIX 2 Premium — New Configuration
SKU:7071
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
We offer 35-day returns on eligible items: request a Return Authorization (RA#) within 35 days of delivery, and your return must reach us within 21 days after the RA# is issued.
Items must be unused, in new condition, and in original packaging with all accessories. For non-defective returns you pay return shipping; original shipping charges are not refunded, and if your order shipped free our actual outbound shipping cost is deducted from the refund. There is no standard restocking fee. See our Return & Refund Policy for details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
SEBO Internal Wiring HS, Co...
$26.00
Product details

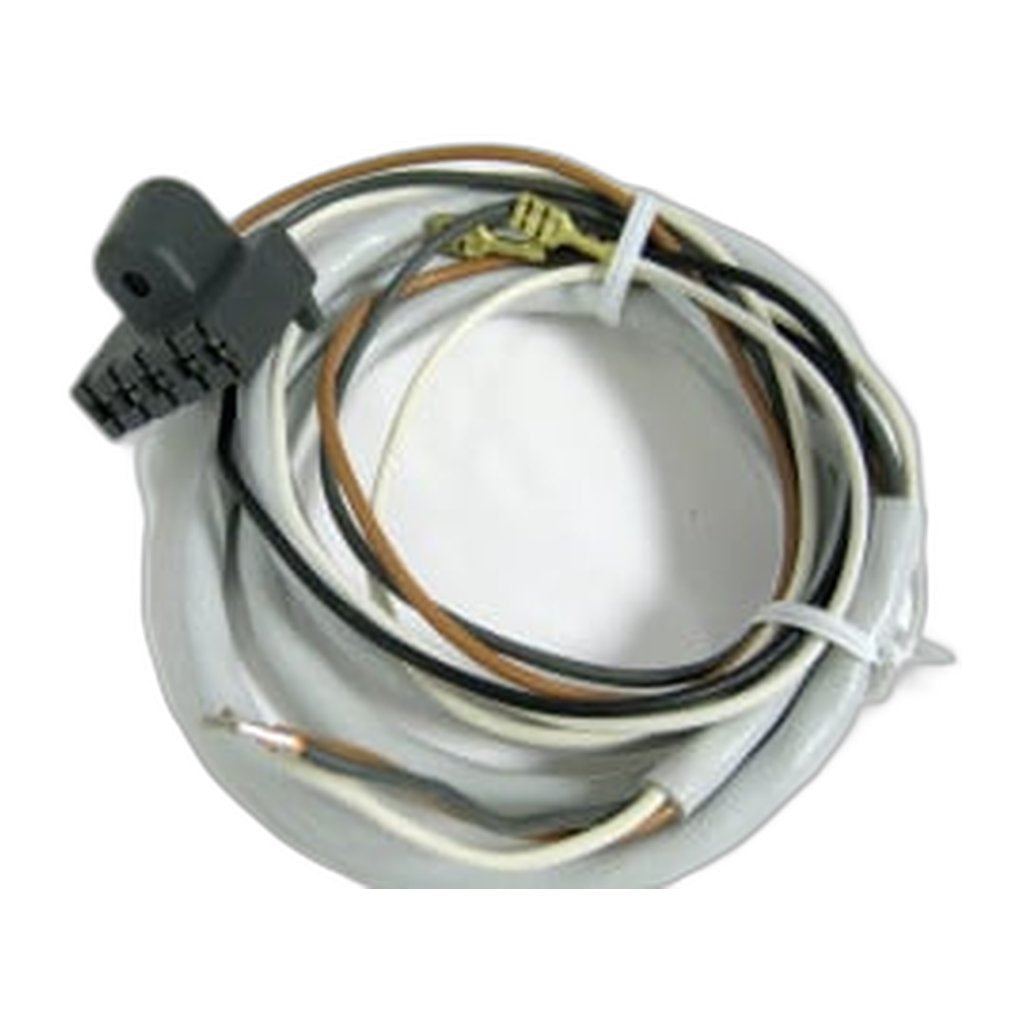

Part 7071 is the complete HS internal wiring set for SEBO FELIX Premium uprights and for the FELIX 2 Premium, in the newer internal configuration. Ordering it brings the whole loom, terminals and routing included, rather than one lead cut to length. SEBO's FELIX exploded diagram places the internal cable at item 3.
Reading across that same sheet shows why the set exists. The loom ties together the 120 V printed circuit board with variable suction control at item 5, part 7111ER, the motor seal at item 7, part 1047, the 1000 W vacuum motor at item 8, part 7041ER, and the switch lever at item 28, part 7032ER. A single open conductor anywhere along that chain can present as a dead board, a dead motor or a switch that has quietly stopped doing anything, and diagnosing it one component at a time gets expensive in bench hours.
Old looms also fail for reasons that apply to every conductor in them equally. They have taken the same heat cycles from the motor, the same flexing at the same bend radii and the same vibration, so the strand that finally opened is normally just the first to reach its limit. That is why an intermittent electrical fault on a well-used FELIX tends to move somewhere else after a spot repair. Fitting the full HS set ends the sequence rather than extending it.
- Fitment: SEBO FELIX Premium, FELIX 2 Premium, newer internal configuration only
- Supplied as: complete HS internal wiring set
- Diagram position: item 3, internal cable, on SEBO's FELIX sheet
- Replace when: the machine cuts out intermittently, a terminal is discoloured, or insulation is chafed or brittle
- Related part numbers: 7111ER printed circuit board, 7041ER vacuum motor, 05140S carbon brush set for that motor, 1047 motor seal, 7032ER switch lever
Identify which internal layout your machine was built with first, since earlier-configuration machines are wired differently and will not accept this set. Work with the plug pulled throughout. Genuine SEBO FELIX internal wiring supplied by an authorized SEBO dealer, shipped in 2-5 business days.
