SEBO
SEBO Servo Motor and Gearbox for AUTOMATIC X Series Uprights
SEBO Servo Motor and Gearbox for AUTOMATIC X Series Uprights
SKU:5060ER
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
We offer 35-day returns on eligible items: request a Return Authorization (RA#) within 35 days of delivery, and your return must reach us within 21 days after the RA# is issued.
Items must be unused, in new condition, and in original packaging with all accessories. For non-defective returns you pay return shipping; original shipping charges are not refunded, and if your order shipped free our actual outbound shipping cost is deducted from the refund. There is no standard restocking fee. See our Return & Refund Policy for details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
SEBO Servo Motor and Gearbo...
$42.00
Product details

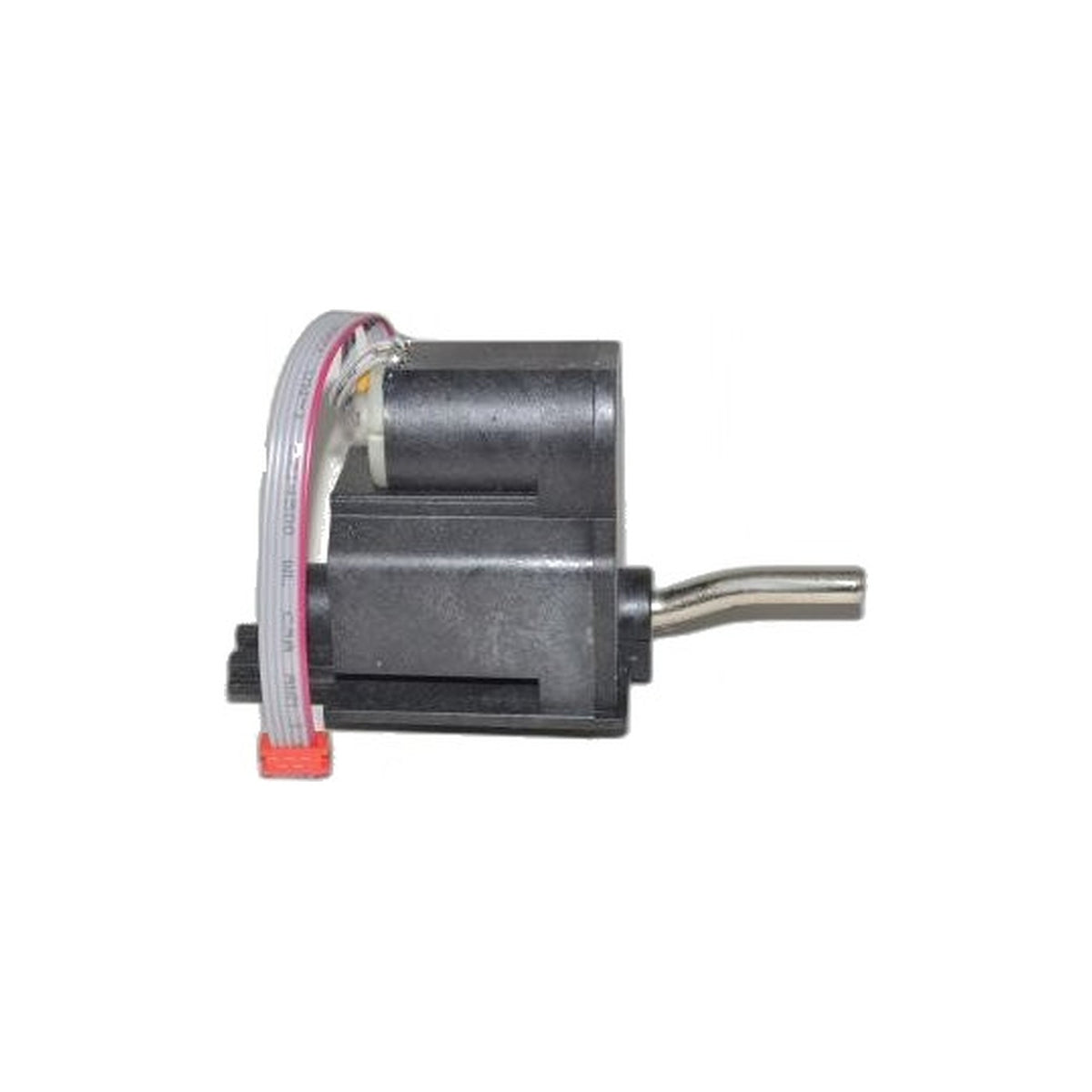

Automatic height adjustment on an AUTOMATIC X upright depends on a small geared motor that raises and lowers the cleaning head as the floor surface changes underneath it. Part 5060ER is that servo together with its gearbox, supplied as one unit, and it sits at position 140 in SEBO's AUTOMATIC X7/X8 parts diagram.
When it goes, the head stops adapting. It rides high on carpet so the brush never reaches the pile, or it stays low on hard floors and drags. Some machines announce the fault with a grinding sound as the servo tries to drive a gear train that has already stripped a tooth. Motor and gearbox are matched to each other, which is why SEBO supplies them together rather than as separate items, and it is also why fitting a bare motor into an old gearbox is not an option.
- Part number: SEBO 5060ER, servo motor with gearbox
- Fits: SEBO AUTOMATIC X1, X2, X4, X4 Boost, X5, X7 Premium, X7 Pet and X8
- Diagram position: 140 in the AUTOMATIC X7/X8 exploded diagram
- Job: drives the automatic height adjustment of the cleaning head
- Supplied as a single matched assembly
- Related part numbers: 5110 belt, 5155GS rubbing plate, 5083 locking rod
- Genuine SEBO assembly from an authorized dealer; ships in 2-5 business days
Worth separating from this fault: a head that sits at the wrong height because the rubbing plate underneath it has worn through. That plate is part 5155GS and it is a much smaller job. The drive belt for the brush roller on these machines is 5110, and the locking rod in the same area is 5083. Checking all three saves ordering a servo for a problem that was mechanical wear elsewhere.
This listing answers searches for a SEBO servo motor 5060ER, an AUTOMATIC X8 height adjustment motor, an X7 Premium gearbox motor and an X4 automatic head servo.
