Clean Max

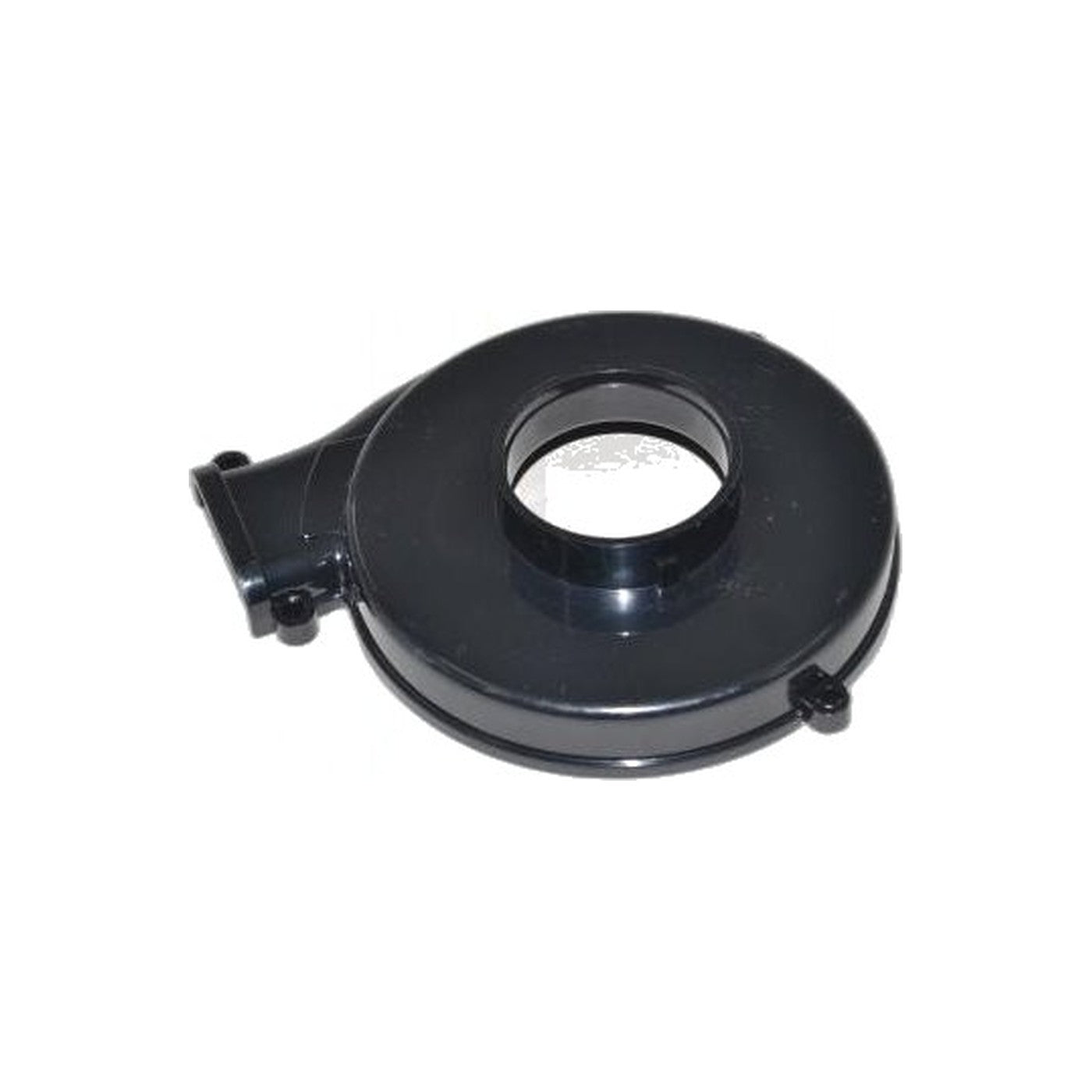

Clean Max LH Scroll Housing - Maytag M500, R10 - T500
Clean Max LH Scroll Housing - Maytag M500, R10 - T500
SKU:B220-4114
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
We offer 35-day returns on eligible items: request a Return Authorization (RA#) within 35 days of delivery, and your return must reach us within 21 days after the RA# is issued.
Items must be unused, in new condition, and in original packaging with all accessories. For non-defective returns you pay return shipping; original shipping charges are not refunded, and if your order shipped free our actual outbound shipping cost is deducted from the refund. There is no standard restocking fee. See our Return & Refund Policy for details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
Clean Max LH Scroll Housing...
$8.99
Product details
Suction depends on a sealed path from the fan to the nozzle, and the scroll housing is the shaped shell that keeps that path closed off. Part B220-4114 is the left-hand half, listed for the Clean Max ZM800, the Maytag M500, the Titan T500, and the Riccar and Simplicity R10P and R10S.
A crack or break anywhere in the scroll opens a leak right next to the fan, and a leak that close to the source costs more suction at the floor than the same size gap further down the airflow path. Warping from heat and age has the same effect, since the two housing halves stop meeting cleanly at the seam. A crack here can be fine enough to miss on a quick look, so take the half right off and turn it slowly against a light before deciding it is sound.
- Part: B220-4114 left-hand scroll housing
- Fits: Clean Max ZM800, Maytag M500, Titan T500, Riccar R10P/R10S, Simplicity R10P/R10S
- Function: forms the left half of the sealed chamber that carries fan output into the airflow path
The housing installs into its original position and seats against its matching right-hand half. Check the seam between the two halves for a clean, even fit all the way around before closing the machine back up. While it is open, clear any packed debris out of the airflow path and confirm the fan turns freely by hand, so the machine goes back to full service with nothing else working against the new seal. Ships to you in 2-5 business days.
