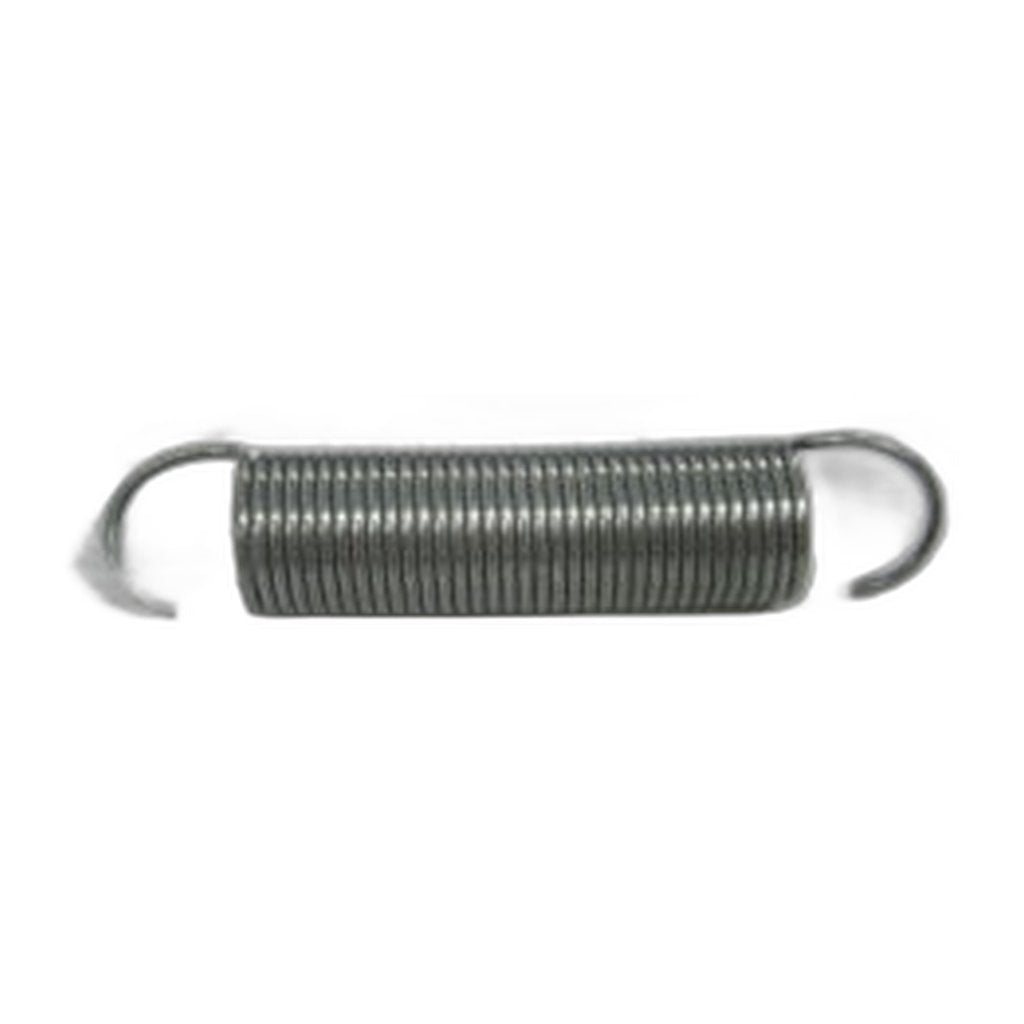

SEBO Axle Spring for the Chassis Thrust Member — G Series and 300/350
SEBO Axle Spring for the Chassis Thrust Member — G Series and 300/350
SKU:2867
Couldn't load pickup availability
Shipping Information
Shipping Information
We offer free standard shipping on eligible orders of $100 or more within the 48 contiguous United States. Eligibility is calculated on the merchandise subtotal after discounts and before tax.
Most in-stock orders using standard shipping are processed within 1-5 business days, and most arrive 2-11 business days after they are placed. Backordered and special-order items may take longer. Expedited UPS Ground is available at checkout for an extra charge, including on orders that qualify for free standard shipping. See our Shipping Policy for details.
Returns & Exchanges
Returns & Exchanges
Need to return an item? We’re happy to help. Eligible items may be returned by requesting authorization within 35 days of delivery. Once approved, your return must reach us within 21 days.
Return eligibility
Items must be unused, in new condition, and include their original packaging and all accessories. Machines that use water cannot be returned once unboxed, unless defective upon arrival.
Shipping and refunds
For non-defective returns, customers cover return shipping. Original shipping charges are nonrefundable. If your order included free shipping, our actual outbound shipping cost will be deducted from your refund. Eligible returns have no restocking fee.
Received a defective item?
Contact us so we can help arrange a prepaid return label and replacement.
Please review our Return & Refund Policy for complete details and exclusions.
Warranty Information
Warranty Information
All products sold by Vacuums and More come with the manufacturer's warranty. Warranty terms vary by brand and product.
With 35 years of industry experience, we stand behind every product we sell. Contact us for warranty support.
Fits the same machines
SEBO Axle Spring for the Ch...
$6.99
Product details
A loose, knocking feel from the base of an upright often comes down to one tired spring. Part 2867 is the axle spring that keeps the chassis thrust member under load on the SEBO ESSENTIAL G1, ESSENTIAL G2, ESSENTIAL G4 and ESSENTIAL G5 and on the 300 MECHANICAL and 350 MECHANICAL.
It appears at position 149 in the 300/350 Mechanical breakdown and at position 138 on the ESSENTIAL G4/G5 sheet. The spring is what supplies the pressure the rest of the height mechanism relies on: it pushes the thrust member against the pile adjustment axle, and that pressure is the only thing holding a chosen carpet height in place while the machine is worked across a room. Once a spring has taken a set, gone soft, or broken outright, the thrust member floats. The setting creeps on its own, a knock develops at the base, and the chassis wanders rather than following straight behind the handle.
It fits in the original location with no modification and needs no shimming, but it is fiddly to seat, so note how it lies before the clamp comes off. The parts it works against are worth checking at the same time, since a soft spring and a worn bearing face produce almost identical symptoms: clamp 2856 holds this spring captive, thrust members 2834 and 2833 take the load, rubbing plate 2869HG is the wear face, axle 2861 carries the mechanism, and axle clamp 2849 retains the pile wheel axle. Searches for a SEBO axle spring, chassis thrust member spring or a G series height adjustment spring land here.
- SEBO part 2867 — chassis thrust member spring, axle mounted
- Fits: SEBO ESSENTIAL G1, G2, G4 and G5, plus the 300 MECHANICAL and 350 MECHANICAL
- Parts-diagram positions: 149 (300/350 Mechanical), 138 (ESSENTIAL G4/G5)
- Typical symptom: height setting that will not hold, or a knock from the base of the machine
- Fits in the original location with no modification
- Related part numbers: 2856 clamp, 2834 and 2833 thrust members, 2861 axle, 2869HG rubbing plate
- Genuine SEBO; ships in 2–5 business days
