SEBO 300 / 350 Mechanical schematics and parts
Choose your model, then find your part by reference number in the parts list below the drawing.

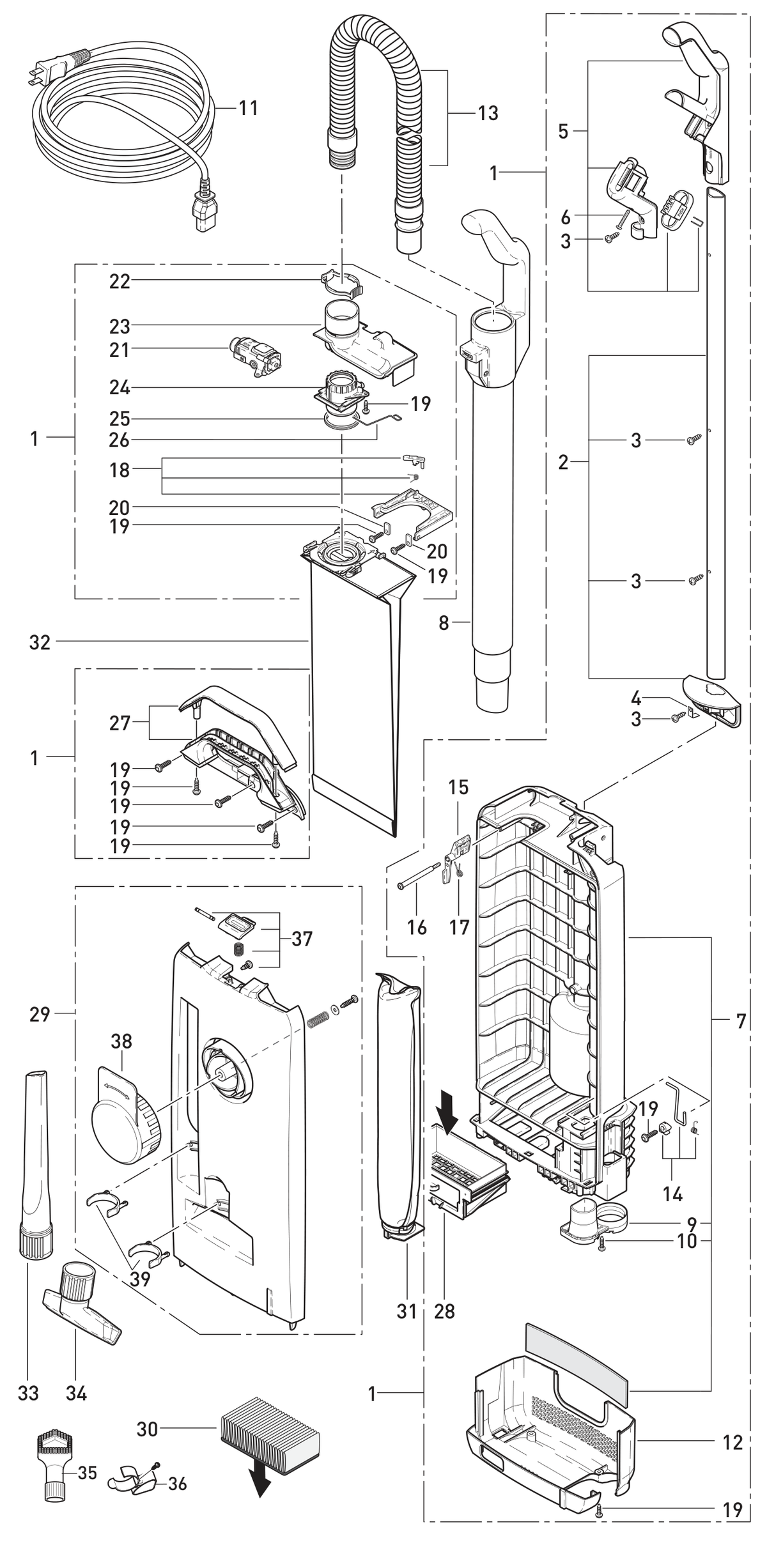

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO 300 / 350 Mechanical parts on this page (42)
- SEBO Complete Dust Bag Housing for 300 and 350 MECHANICAL - Gray Black — SKU 50100SE
- SEBO Handle Tube with Cover for 300 and 350 Mechanical Uprights — SKU 50145SE
- SEBO Clamp for 300 and 350 Mechanical Uprights — SKU 50147ER
- SEBO Dust Bag Housing for 300 and 350 Mechanical Uprights - Gray Black — SKU 50200GS
- SEBO Connection Tube for 300 and 350 MECHANICAL - Light Gray — SKU 50105HG
- SEBO Power Cord with US Plug for 300 and 350 Mechanical Uprights - 13 m — SKU 501843
- SEBO On-Board Stretch Hose for X Series, G Series, 370 Series and 300/350 Mechanical — Silver — SKU 5040SB
- SEBO Dust Bag Lever for 300 and 350 MECHANICAL - Orange — SKU 50122OR
- SEBO Return Spring for the Bag Lever - 300 and 350 MECHANICAL — SKU 50124ER
- SEBO Filter Tube Seal for AUTOMATIC X, ESSENTIAL G1/G2, 300/350 and 370 Series — SKU 5289
- SEBO Exhaust Filter Holder Box for 300 and 350 Mechanical Uprights - Orange — SKU 50216OR
- SEBO Pre-Motor Microfilter for AUTOMATIC X, ESSENTIAL G and 300/350 Uprights — SKU 5036AM
- Genuine SEBO 5093AM X, G, C & Mechanical Vacuum Bags – 8 Pack — SKU 5093AM
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Dusting Brush Mounting Clip with Screw for 300, 350 and 370 Uprights — Gray Black — SKU 1081GS
- SEBO Attachment Clip for Essential G, 370 and 300/350 Bag Housing — Light Gray — SKU 1823HG
- SEBO Power Head Cover for the 300 Mechanical Upright — Gray Black — SKU 50401GSAM
- SEBO Chassis for the 300 Mechanical Upright — Light Gray — SKU 50414HGER
- SEBO Bumper for the 300 Mechanical Upright - Light Gray — SKU 50313HG
- SEBO Switching Unit for 300 and 350 Mechanical Uprights — SKU 50443UL
- SEBO Air Channel Cover with Suction Control Parts for 300 and 350 Mechanical Uprights — SKU 50308ER
- SEBO Clamp for the Axle Thrust Member Spring — G Series and 300/350 — SKU 2856
- SEBO Right-Hand Brush Roll Bearing Block for 300 and 350 Mechanical — Light Gray — SKU 50356HG
- SEBO Front Bottom Plate for the 300 Mechanical Upright — Light Gray — SKU 50404HGER
- SEBO Rear Bottom Plate for the 300 Mechanical Upright - Light Gray — SKU 50310HGER
- SEBO Pile Adjustment Axle for G Series and 300/350 Uprights — SKU 2861
- SEBO Brush Roller with Brush Strip for the 300 MECHANICAL — SKU 50470ER
- SEBO 219 3M HTD-II-6 Toothed Belt for X Series, G Series and 300/350 — SKU 5110
- SEBO Tension Spring for 300 and 350 Mechanical Uprights — SKU 50332ER
- SEBO 1000 W 120 V Suction Motor for the 300 and 350 MECHANICAL — SKU 50465ER
- SEBO Right-Hand Swivel Neck Support for 300 and 350 Mechanical Uprights — SKU 50440ER
- SEBO Left-Hand Swivel Neck Support for 300 and 350 Mechanical Uprights — SKU 50439ER
- SEBO Power Head Cover for the 350 Mechanical Upright — Gray Black — SKU 50431GSAM
- SEBO Motor Suppressor Kit for 300 MECHANICAL and 350 MECHANICAL Uprights — SKU 1013ER
- SEBO Bumper for the 350 Mechanical Upright - Light Gray — SKU 50314HG
- SEBO Brush Roller Release for the 350 Mechanical Upright — Light Gray — SKU 50433HGER
- SEBO Front Bottom Plate for the 350 Mechanical Upright — Light Gray — SKU 50434HGER
- SEBO Pile Wheel Axle Clamp for G Series, 300/350 and CE12 SOFTCASE — SKU 2849
- SEBO Brush Roller with Brush Strip for the 350 MECHANICAL — SKU 50471ER
- SEBO Rubbing Plate for the Pile Adjustment Axle — G Series and 300/350 — SKU 2869HG
- SEBO Axle with Wheel for 300 and 350 Mechanical Uprights — Light Gray — SKU 50348HGER
- SEBO Axle Spring for the Chassis Thrust Member — G Series and 300/350 — SKU 2867
