SEBO AIRBELT K2 schematics and parts
Choose K2 Kombi or K2 Turbo, then tap a blue reference number or part number to find its replacement part.

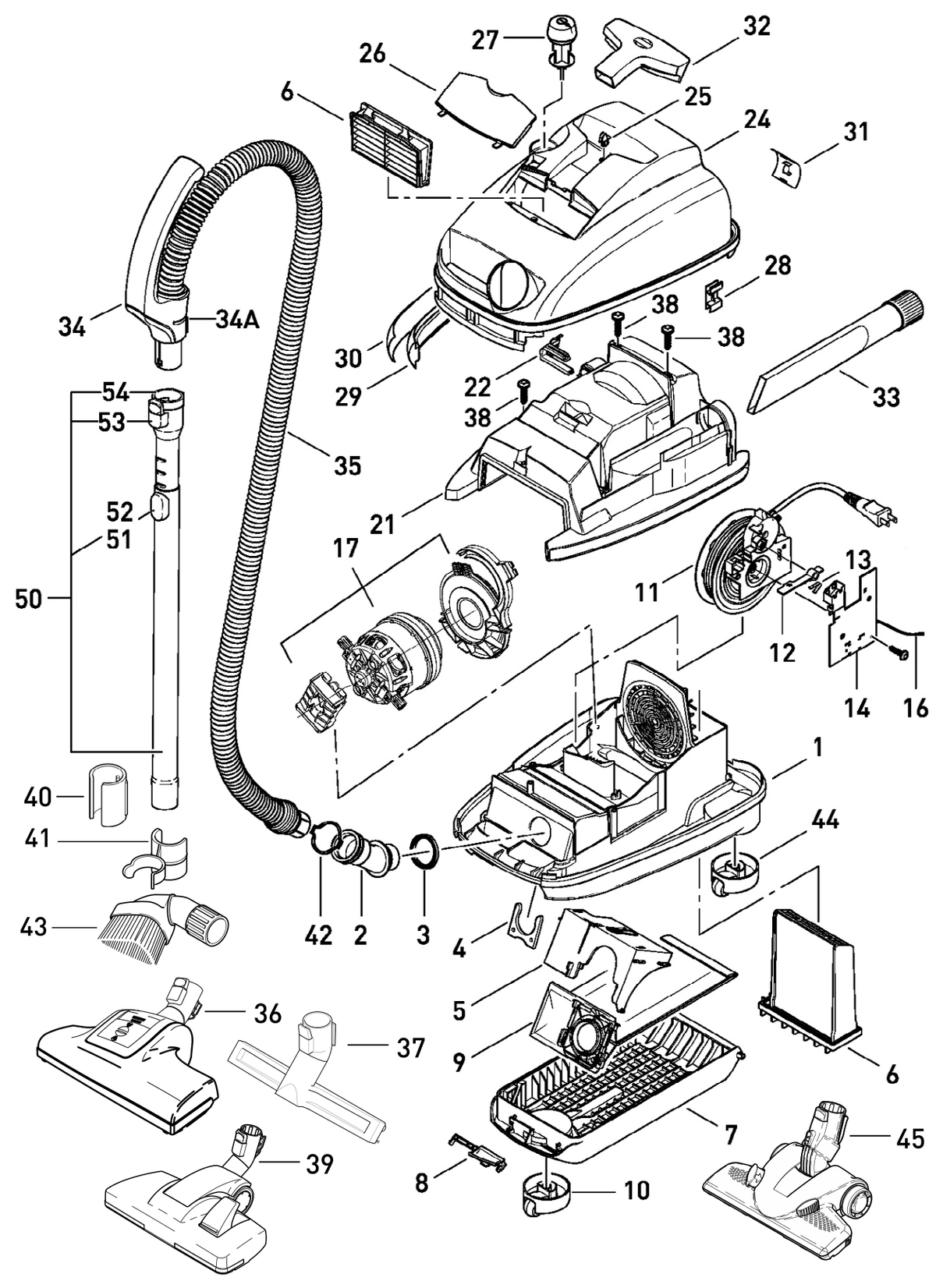

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT K2 parts on this page (49)
- SEBO Bottom Casing with Castors for AIRBELT K Canisters — New Style, Gray Black — SKU 6754GS
- SEBO Suction Neck for AIRBELT K2 Canisters — Gray Black — SKU 6675GS
- SEBO Suction Neck Seal for AIRBELT K and C Series Canisters — SKU 6014
- SEBO Spring Lock for AIRBELT K and C Series Canisters — SKU 6042WS
- SEBO Bag Holder for AIRBELT K2 and K3 Canisters — Complete, Light Gray — SKU 6681HG
- SEBO Filter Set for AIRBELT K with Pre-Motor Microfilter and Exhaust Filter — SKU 6696AM
- SEBO Bag Cover with Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6756GS
- SEBO Cover Release Latch for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6607GS
- Genuine SEBO 6629AM AIRBELT K2 & K3 Vacuum Bags – 8 Pack — SKU 6629AM
- SEBO Bag Cover Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6752GS
- SEBO Cord Rewind Unit with Lever and Leaf Spring for AIRBELT K2 and K3 — SKU 665603E
- SEBO Switch Lever with Leaf Spring for AIRBELT K2 and K3 — SKU 6621
- SEBO Switch Lever Leaf Spring for AIRBELT K2, K3 and ET-C Power Heads — SKU 1739
- SEBO Electronic Controller with Switch for AIRBELT K2 Canisters — SKU 6641ER
- SEBO Internal Motor Cable for AIRBELT K2 and K3 — White — SKU 6638
- SEBO 1250W Replacement Vacuum Motor for AIRBELT K2 and K3 — SKU 6631ER
- SEBO Motor Cover for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6679GS
- SEBO Plug Surround Trim for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6622GS
- SEBO Top Casing for AIRBELT K2 Kombi and K3 Premium — Black Cherry — SKU 6680SR1
- SEBO Upholstery Nozzle Release Clip with Screw for AIRBELT K2 and K3 — SKU 6625ER
- SEBO Exhaust Filter Cover for AIRBELT K2 and K3 — Dark Cherry with Silver Print — SKU 6403SRER
- SEBO On/Off Knob in Gray Black and Orange for AIRBELT K2 Turbo and K3 Premium — SKU 60666VO
- SEBO Casing Clip for AIRBELT K and C Series — Single — SKU 6086HG
- SEBO Foam Bumper for AIRBELT K2 and K3 Canisters — SKU 6623UL
- SEBO AIRBELT Textile with Clips in Orange and Silver Squares — AIRBELT K2 Turbo — SKU 6047AM12
- SEBO AIRBELT Clip in Gray Black for K and C Series — SKU 6048GS
- SEBO Upholstery Nozzle for AIRBELT K Series — Gray/Black — SKU 6627GS
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Handle Grip with Retaining Ring for AIRBELT D1, E1, E2, K2, C1.1 and C2.1 — Gray Black — SKU 6300GS
- SEBO Retaining Ring for Hose Handle — AIRBELT D1, E1, E2, K2 and C1.1/C2.1 (Gray Black) — SKU 6303GS
- SEBO 7 ft. Hose with Handle and Coupling for AIRBELT K2 — Gray Black — SKU 6447GS
- SEBO Turbo Floor Nozzle for AIRBELT and C Series Canisters (Gray/Black) — SKU 8365AM
- SEBO Parquet Floor Brush with Button Lock for AIRBELT D, E, K and C Canisters — SKU 6391AM
- SEBO Combination Floor Nozzle for AIRBELT and C Series Canisters (Gray/Black) — SKU 8351GS
- SEBO Dusting Brush Clip Adapter Sleeve for AIRBELT K2, E1 and E2 Tubes — SKU 6668GS
- SEBO Dusting Brush Clip for AIRBELT K and AIRBELT E Canisters — Gray Black — SKU 6694GS
- SEBO Hose Retaining Ring for AIRBELT K2 Canisters — Gray Black — SKU 6612GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Bottom Casing Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6751GS
- SEBO Premium Kombi Floor Nozzle with Two Wheels — SKU 7260GS
- SEBO Stainless Steel Telescopic Wand for AIRBELT D1, E1, E2, K2, C1.1 and C2.1 — SKU 6237ER
- SEBO Sliding Knob for 6237ER Telescopic Tube — AIRBELT D1, E1, E2, K2 and C1.1/C2.1 — SKU 6425ER
- SEBO Telescopic Tube Locking Mechanism for AIRBELT D1, E1, E2, K2, C1.1 and C2.1 — SKU 6238ER
- SEBO Telescopic Tube Release Button with Leaf Spring and Cover — SKU 6480ER
- SEBO Telescopic Tube Fitting Neck for AIRBELT D1, E1, E2, K2 and C1.1/C2.1 — Gray Black — SKU 1736GS
- SEBO Top Casing for AIRBELT K2 KOMBI — Dark Blue — SKU 6680DB1
- SEBO Exhaust Filter Cover for AIRBELT K2 Kombi — Dark Blue with Silver Print — SKU 6405DBER
- SEBO On/Off Knob in Gray Black and White for AIRBELT K2 Kombi — SKU 60613WE
- AIRBELT Textile, for D, K, and C, with 6048GS and 8034GS clips (gray black, solid) — SKU 6047AM01
