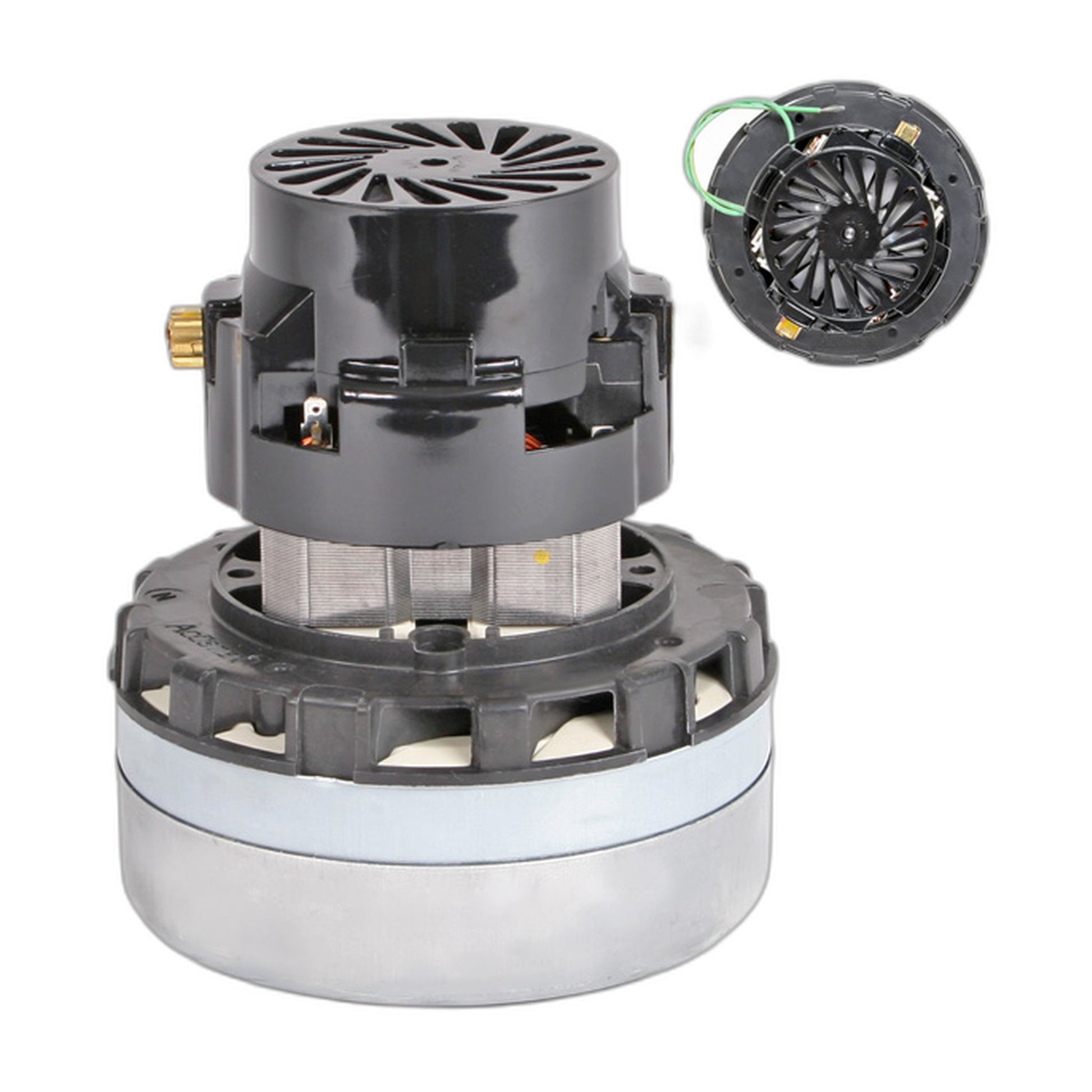

Lamb Ametek 119413 Central Vacuum Motor
Lamb Ametek 119413 Central Vacuum Motor
SKU:202G
Couldn't load pickup availability
Lamb Ametek 119413 central vacuum motor (SKU 202G) — a brand-new, two-stage, 120-volt Ametek original that directly replaces the 116471 and 116336 motors. Housings may be stamped 9413 or 11-9413; both are this motor. A wire set with spade connectors is included: plug the spades onto the motor terminals, then splice the free ends to your unit's existing wiring with wire nuts.
- Fan stages: 2
- Voltage: 110-120 V, 50-60 Hz
- Bottom diameter: 5.7"
- Height: 6.5", bolt height 2.75"
- Waterlift: 84.9"
- CFM: 97
- Air watts: 255
- Amps: 7.4
Plan on replacement when you see mini-breaker trips, smell hot electrical components, spot sparking from the motor top, or the unit cuts out on its own and runs again later — usable life is typically 900-1,200 hours. Mounting is three to four bracket screws plus the wiring. Matching carbon brushes are sold separately (two needed) if you would rather service the motor before it wears out.
