Find the part. Keep the vacuum.
SEBO AIRBELT K3 schematics and parts
Choose your K3 color and assembly, then tap a blue reference number or part number to open its product page.

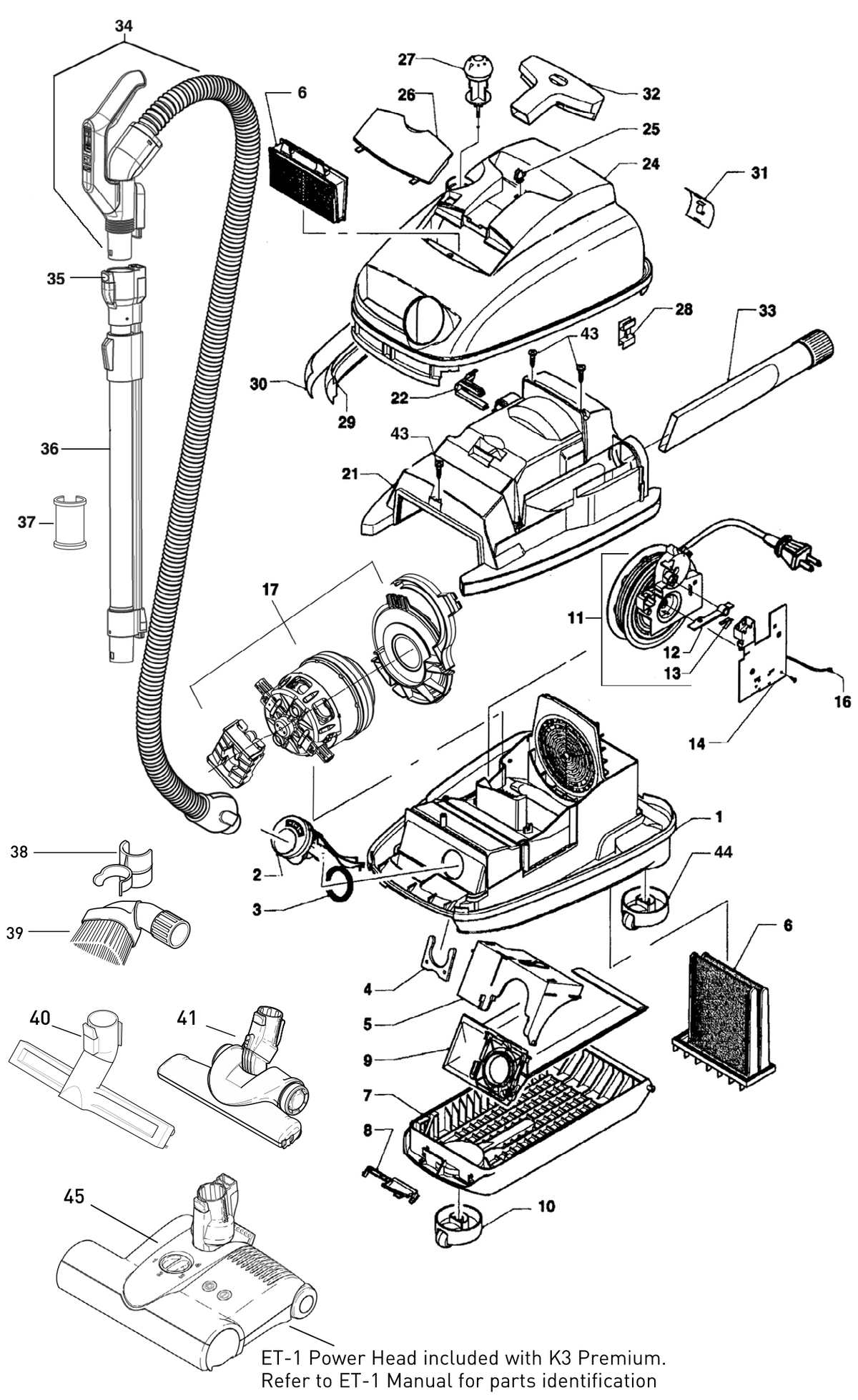

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT K3 parts on this page (89)
- SEBO Bottom Casing with Castors for AIRBELT K Canisters — New Style, Gray Black — SKU 6754GS
- SEBO Suction Neck for AIRBELT K3 PREMIUM — Gray Black — SKU 6677GS
- SEBO Suction Neck Seal for AIRBELT K and C Series Canisters — SKU 6014
- SEBO Spring Lock for AIRBELT K and C Series Canisters — SKU 6042WS
- SEBO Bag Holder for AIRBELT K2 and K3 Canisters — Complete, Light Gray — SKU 6681HG
- SEBO Filter Set for AIRBELT K with Pre-Motor Microfilter and Exhaust Filter — SKU 6696AM
- SEBO Bag Cover with Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6756GS
- SEBO Cover Release Latch for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6607GS
- Genuine SEBO 6629AM AIRBELT K2 & K3 Vacuum Bags – 8 Pack — SKU 6629AM
- SEBO Bag Cover Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6752GS
- SEBO Cord Rewind Unit with Lever and Leaf Spring for AIRBELT K2 and K3 — SKU 665603E
- SEBO Switch Lever with Leaf Spring for AIRBELT K2 and K3 — SKU 6621
- SEBO Switch Lever Leaf Spring for AIRBELT K2, K3 and ET-C Power Heads — SKU 1739
- SEBO Electronic Controller with Switch for AIRBELT K3 PREMIUM — SKU 6645ER
- SEBO Internal Motor Cable for AIRBELT K2 and K3 — White — SKU 6638
- SEBO 1250W Replacement Vacuum Motor for AIRBELT K2 and K3 — SKU 6631ER
- SEBO Motor Cover for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6679GS
- SEBO Plug Surround Trim for AIRBELT K2 and K3 Canisters — Gray Black — SKU 6622GS
- SEBO Top Casing for AIRBELT K3 PREMIUM — Red — SKU 6680DR1
- SEBO Upholstery Nozzle Release Clip with Screw for AIRBELT K2 and K3 — SKU 6625ER
- SEBO Exhaust Filter Cover for AIRBELT K3 — Red with Silver Print — SKU 6403DRER
- SEBO Power Knob in Gray Black and White for AIRBELT K3 Premium — SKU 60666WE
- SEBO Casing Clip for AIRBELT K and C Series — Single — SKU 6086HG
- SEBO Foam Bumper for AIRBELT K2 and K3 Canisters — SKU 6623UL
- AIRBELT Textile, for D, K, and C, with 6048GS and 8034GS clips (gray black, solid) — SKU 6047AM01
- SEBO AIRBELT Clip in Gray Black for K and C Series — SKU 6048GS
- SEBO Upholstery Nozzle for AIRBELT K Series — Gray/Black — SKU 6627GS
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Hose and Handle Assembly with Dual Controls for AIRBELT K3 Premium and C3.1 — Gray Black — SKU 8545AM
- SEBO Tube Release Button Kit for C3 Canisters - Springs, Slider, Lock and Cover — SKU 6420GS
- SEBO Telescopic Wand for K3, C3.1, D4 and E3 - Gray and Black — SKU 60237UC
- SEBO Dusting Brush Clip Adapter Sleeve for AIRBELT K3 and E3 Wands — SKU 60238AD
- SEBO Dusting Brush Clip for AIRBELT K and AIRBELT E Canisters — Gray Black — SKU 6694GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO Parquet Floor Brush with Button Lock for AIRBELT D, E, K and C Canisters — SKU 6391AM
- SEBO Premium Parquet Floor Brush with Wheels — FELIX, DART and Canisters — SKU 7200AM
- SEBO Bottom Casing Castor for AIRBELT K Canisters — New Style, Gray Black — SKU 6751GS
- SEBO Red Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337DRET
- SEBO ET-1 Power Head Chassis — Gray Black — SKU 2324GS
- SEBO ET-1 Power Head Bumper — Gray Black — SKU 2302GS
- SEBO Left-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2314GS
- SEBO Toothed Brush Belt 333 3M HTDII-6 for FELIX, DART, ET-1/ET-2 and 370 COMFORT — SKU 2923
- SEBO 5010AM Brush Roller – 12-Inch Standard Bristle — SKU 5010AM
- SEBO Right-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2313GS
- SEBO Spring for the Axle Adjustment Assembly — ET-1 and ET-2 Power Heads — SKU 2929
- SEBO Pile Adjustment Assembly for ET-1 and ET-2 Power Heads — Gray Black — SKU 2316GS
- SEBO Access Door with Axle and Spring for ET-1 and ET-2 Power Heads — Orange — SKU 2909VO
- SEBO Rear Bottom Plate for ET-1 Power Heads — Gray Black — SKU 2304GS
- SEBO Pile Adjustment Knob for ET-1 and ET-2 Power Heads — Gray Black — SKU 2931GS
- SEBO Power Head Wheel Assembly for ET-1 and ET-2 — Gray Black — SKU 2306GS
- SEBO Foot Pedal with Axle and Spring for FELIX, ET-1, ET-2 and DISCO — Orange — SKU 2937OR
- SEBO Complete Swivel Neck for ET-1 and ET-2 Power Heads — Gray Black — SKU 2307GS
- SEBO Swivel Neck Wiring for ET-1, ET-2 and DISCO Power Heads — SKU 0876ER
- SEBO Back Cover for the TS-Neck — FELIX, ET-1, ET-2 and DISCO, Gray Black — SKU 2947GS
- SEBO Metal Bearing Segments for the TS-Neck Swivel — 6 Piece Set — SKU 2950ER
- SEBO Telescopic Tube Release Button with Leaf Spring and Cover — SKU 6480ER
- SEBO Release Button Cover for FELIX, ET-1, ET-2 and DISCO Swivel Necks — Gray Black — SKU 2952GS
- SEBO Swivel Neck Slide for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2945GS
- SEBO TS-Neck Socket Cover for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2951GS
- SEBO Screw F 3.9 x 9.5 (DIN 7981) for ET-1 and ET-2 Power Heads — Single — SKU 01027
- SEBO Swivel Neck Bearing for FELIX, DART, ET-1, ET-2 and DISCO — SKU 2954
- SEBO Right-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2311
- SEBO Left-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2312
- SEBO Micro Safety Switch with Wiring for ET-1 and ET-2 Power Heads — SKU 0880
- SEBO Swivel Neck Support Axle for ET-1 and ET-2 Power Heads — SKU 2928
- SEBO 175 W Brush Motor with Pulley for ET-1 and 370 COMFORT Power Heads — SKU 2973ER
- SEBO Carbon Brush Set for ET-1, ET-2 and DISCO Power Head Motors — SKU 05141S
- SEBO 175W Printed Circuit Board for ET-1 Power Heads — SKU 2684ER
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO Motor Pulley for ET-1, ET-2 and 370 COMFORT Power Heads — SKU 2319
- SEBO Left Lens for ET-1 and ET-2 Power Heads — Switchless Version — SKU 20955
- SEBO Brush Light Lens, Right Hand, for ET-1 and ET-2 Power Heads — SKU 2956
- SEBO Top Casing for AIRBELT K3 Premium — White — SKU 6680WE1
- SEBO Exhaust Filter Cover for AIRBELT K3 — White with Dark Gray Print — SKU 6403WEER
- SEBO White Power Head Cover for ET-1 Power Heads Without Switch — SKU 20335WEET
- SEBO Top Casing for AIRBELT K3 Premium — Black — SKU 6680SW1
- SEBO Exhaust Filter Cover for AIRBELT K3 — Black with Silver Print — SKU 6403SWER
- AIRBELT Textile, for D, K, and C, with 6048GS and 8034GS clips (black/silver, ovals) — SKU 6047AM07
- SEBO ET-1 Power Head Cover — Black, Switchless Version — SKU 20337SWET
- SEBO Pile Adjustment Knob in Silver for ET-1 and ET-2 Power Heads — SKU 2931SB
- SEBO Top Casing for AIRBELT K3 PREMIUM — Pastel Mint — SKU 6680CM
- SEBO Exhaust Filter Cover for AIRBELT K3 — Pastel Mint — SKU 6403CMER
- SEBO Pastel Mint Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337CMET
- SEBO Top Casing for AIRBELT K3 PREMIUM — Pastel Blue — SKU 6680CI
- SEBO Exhaust Filter Cover for AIRBELT K3 — Pastel Blue — SKU 6403CIER
- SEBO Pastel Blue Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337CIET
- SEBO Top Casing for AIRBELT K3 PREMIUM — Pastel Pink — SKU 6680CZ
- SEBO Exhaust Filter Cover for AIRBELT K3 — Pastel Pink — SKU 6403CZER
- SEBO Pastel Pink Power Head Cover for ET-1 Power Heads Without Switch — SKU 20337CZET
