SEBO Duo schematics and parts
Find your Duo brush machine part by reference number in the parts list below the drawing.

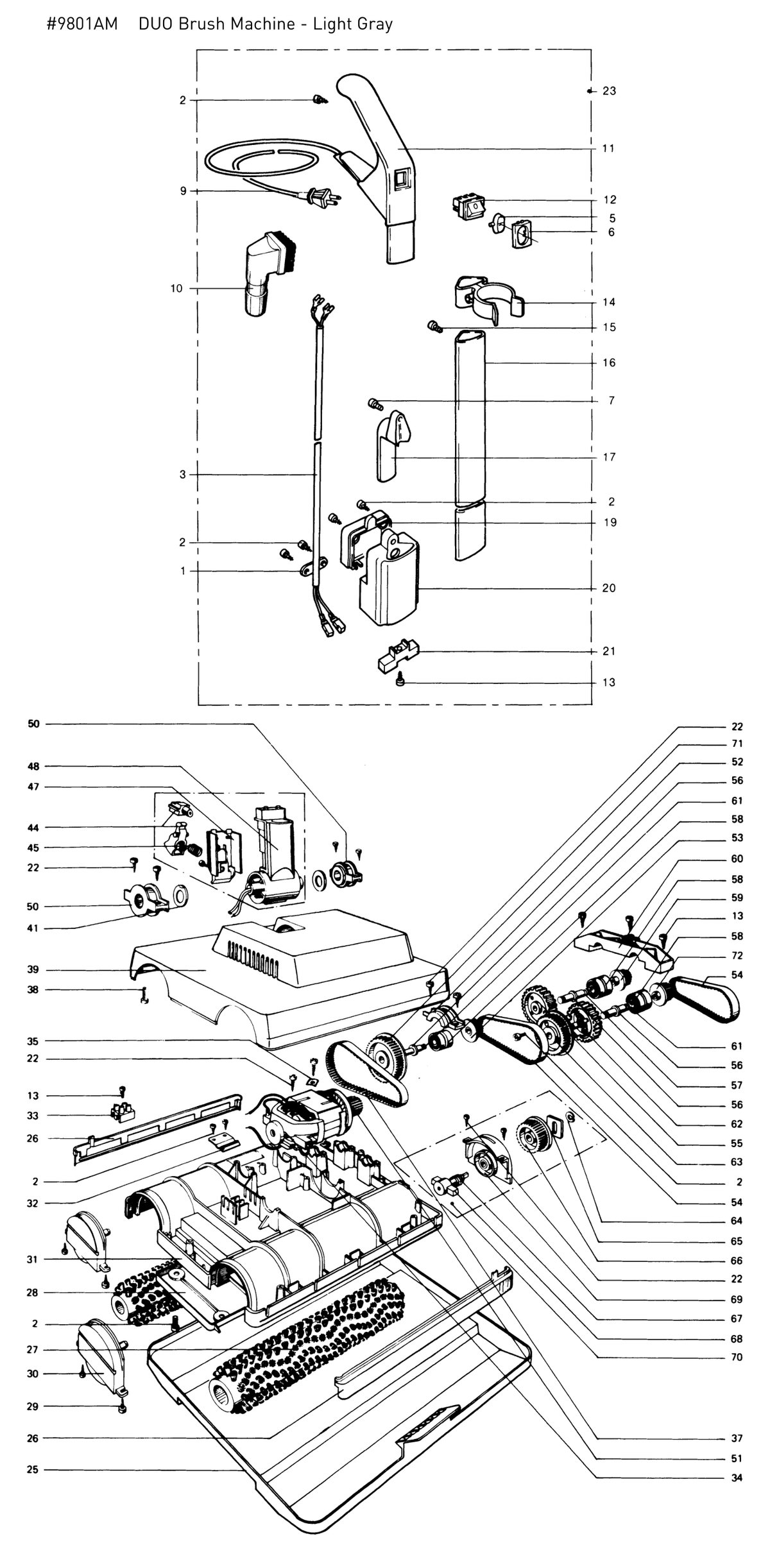

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO Duo parts on this page (47)
- SEBO Handle Cable for the Duo — SKU 3125
- SEBO Switch Cap for the Duo, Gray Black — SKU 3137GS
- SEBO Switch Cap Holder for the Duo, Light Gray — SKU 3136HG
- SEBO Power Supply Cord for AUTOMATIC X1, X2 and the Duo — Dark Gray — SKU 5433DG
- SEBO Spot Cleaning Brush for the DUO Brush Machine - Light Gray — SKU 3055HG
- SEBO Handle Grip with Grommet and Switch Cap Holder for the Duo, Light Gray — SKU 3142HG
- SEBO Mounting Clip with Screw for the DUO Spot Cleaning Brush — Light Gray — SKU 5352HG
- SEBO Cord Hook for the Duo, Light Gray — SKU 3118HG
- SEBO Handle Connector Cover for the Duo, Light Gray — SKU 3027HG
- SEBO Handle Connector for the Duo, Light Gray — SKU 3113HG
- SEBO Handle Cable Contact Cover for the Duo — SKU 1020UL
- SEBO Complete Handle with Power Cord for the Duo, Light Gray — SKU 3122/H
- SEBO Storage Tray for the Duo, Light Gray — SKU 3033HG
- SEBO Brush Roller for the DUO Carpet Brush Machine — Single Roller — SKU 3005ER
- SEBO Base Plate for the DUO — Black — SKU 3002SW
- SEBO Right-Hand Bearing Block for the Duo, Light Gray — SKU 3010HG
- SEBO Brush Housing for the DUO — Light Gray — SKU 3001HG
- SEBO Handle Stop Spring for the Duo — SKU 3032
- SEBO 120V Motor with Pulley for the Duo — SKU 3049ER
- SEBO 3 mm Drive Belt for the Duo — SKU 3038
- SEBO Housing Cover for the DUO — SKU 3004SE
- SEBO Plunger Button, Complete, for the Duo - Light Gray — SKU 2438HG
- SEBO Plunger Button Return Spring for the Duo — SKU 2423
- SEBO Swivel Neck Cover in Light Gray for the Duo — SKU 2022HG
- SEBO Swivel Neck Assembly for the Duo, 120V Light Gray — SKU 3123HG
- SEBO Swivel Neck Support Assembly for the Duo — SKU 3051
- SEBO Motor Pulley 19 for the Duo — SKU 3014
- SEBO Ball Bearing Clamp for the Duo — SKU 3030
- SEBO Drive Pulley for the Duo, Diagram Position 53 — SKU 3013
- SEBO 5 mm Drive Belt for the Duo — SKU 3042
- SEBO Gear Wheel 34 for the Duo, Left-Hand Thread — SKU 3022
- SEBO Spacer for the Duo Drive Assembly — SKU 3036
- SEBO Left-Hand Shaft for the Duo, Left-Hand Thread — SKU 3037
- SEBO Pulley 12 for the Duo, Left-Hand Thread — SKU 3015
- SEBO Bridge for the Duo Drive Assembly — SKU 3039
- SEBO Right-Hand Shaft for the Duo, Right-Hand Thread — SKU 3035
- SEBO Gear Wheel 34 Assembly for the Duo, Right-Hand, Complete — SKU 3021
- SEBO Pulley 37 for the Duo Brush Machine — SKU 3018
- SEBO Retaining Clip for the Duo — SKU 3071
- SEBO End Plate for the Duo — SKU 3040
- Johnny Vac Prima HEPA Canister Bags, 3-Pack (Also Fits JV Bee) — SKU 3009
- SEBO Drive Cog Spring for the Duo — SKU 3028
- SEBO Brush Drive Cog for the Duo Brush Machine — SKU 3007
- SEBO Left-Hand Brush Roll Bearing Block for the Duo, Light Gray — SKU 3074HG
- SEBO Left-Hand Bearing Block Assembly for the Duo, Light Gray — SKU 3052HG
- SEBO Pulley 60 for the Duo Brush Machine — SKU 3017
- SEBO Drive Pulley 12 R/Ms for the Duo — SKU 3056
