SEBO AUTOMATIC X8 schematics and parts
Choose your model and assembly, then tap a blue reference number or part number to open its replacement part.

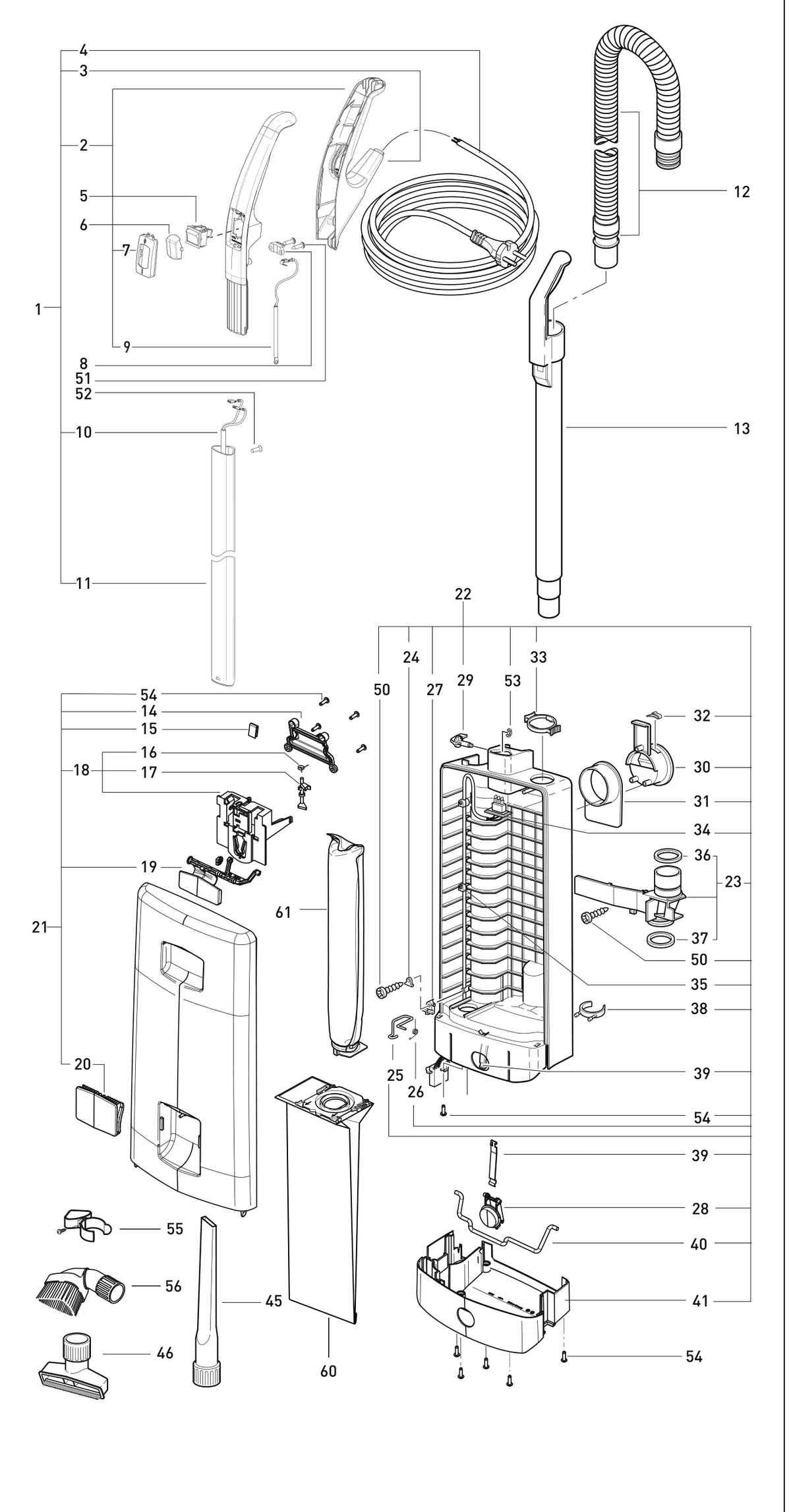

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AUTOMATIC X8 parts on this page (105)
- SEBO Handle with Cord, Tube and Switch for AUTOMATIC X4 Boost, X7 Premium and X8 — Gray Black / Silver — SKU 5644AM
- SEBO Handle Grip for AUTOMATIC X Series Uprights — Gray Black — SKU 5297GSAM
- SEBO Cord Grommet for AUTOMATIC X, FELIX and DART — Gray Black, 10 Pack — SKU 5359GS
- SEBO Power Supply Cord for AUTOMATIC X4, X5, X7, X8 and ESSENTIAL G Series — Dark Gray — SKU 5450DG
- SEBO Switch Cap for AUTOMATIC X4, X7 and X8 — Silver — SKU 5160SB
- SEBO Switch Cap Holder for AUTOMATIC X1, X2, X4, X5, X7 and X8 — Gray Black — SKU 5161GS
- SEBO Cable Clamp for the Handle Tube — X Series and ESSENTIAL G Series — SKU 5162
- SEBO Antistatic Wire for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5253UL
- SEBO Handle Cable for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5298ER
- SEBO 345 mm Handle Tube for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5187
- SEBO On-Board Stretch Hose for X Series, G Series, 370 Series and 300/350 Mechanical — Silver — SKU 5040SB
- SEBO On-Board Cleaning Wand for AUTOMATIC X Series and 370 Uprights — Gray Black — SKU 5045GS
- SEBO Gray Black Cap for the Latch Release - AUTOMATIC X7 and X8 — SKU 51059GS
- SEBO Bag Holder Spring for AUTOMATIC X and ESSENTIAL G Series — SKU 5319
- SEBO Safety Catch Spring for Automatic X, Essential G and 370 Series Uprights — SKU 5091
- SEBO Bag Holder Safety Catch for AUTOMATIC X Series and ESSENTIAL G1/G2 — SKU 5360
- SEBO Complete Bag Holder for AUTOMATIC X Series and ESSENTIAL G1/G2 — SKU 5324
- SEBO Silver Cover Release for AUTOMATIC X7 and X8 — SKU 51053SB
- SEBO Silver Handle Cover for AUTOMATIC X7 and X8 Uprights — SKU 51052SB
- SEBO Complete Front Cover for AUTOMATIC X8 - Dark Blue — SKU 51051DBSB
- SEBO Complete Bag Compartment Housing for Automatic X8 - Dark Blue — SKU 51050DBUL
- SEBO Complete Internal Cover for AUTOMATIC X Series — Gray Black — SKU 5380GS
- SEBO Filter Safety Catch Clamp for AUTOMATIC X, ESSENTIAL G and 370 Series Uprights — SKU 1073
- SEBO Filter Safety Catch for AUTOMATIC X Series and ESSENTIAL G Series — SKU 5208
- SEBO Return Spring for Microfilter Holder - X Series and G Series Uprights — SKU 5210
- SEBO Microfilter Holder Cable Clamp for X Series and ESSENTIAL G Series Uprights — SKU 5164
- SEBO Bag Compartment Locking Catch for Automatic X7 and X8 - Silver — SKU 51003SB
- SEBO Handle Catch for AUTOMATIC X4, X7 and X8 - Silver — SKU 1859SB
- SEBO Carrying Handle for AUTOMATIC X4, X5 and X8 — Dark Blue — SKU 5721DB
- SEBO Cable Hook for AUTOMATIC X4, X5 and X8 — Dark Blue — SKU 5703DB
- SEBO Stop Spring for X Series, ESSENTIAL G Series and 370 Uprights — SKU 5146
- SEBO Retaining Ring for AUTOMATIC X4, X7 and X8 — Silver, 10 Pack — SKU 5424SB
- SEBO Internal Cable Clamp for AUTOMATIC X, ESSENTIAL G and AIRBELT D Series — SKU 5266
- SEBO Internal Cover Seal for AUTOMATIC X, ESSENTIAL G1/G2 and 370 Series — SKU 5842
- SEBO Filter Tube Seal for AUTOMATIC X, ESSENTIAL G1/G2, 300/350 and 370 Series — SKU 5289
- SEBO Attachment Clip for AUTOMATIC X Series Bag Housing — Gray Black — SKU 1823GS
- SEBO Locking Rod Spring for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5084
- SEBO Bag Holder Locking Rod for AUTOMATIC X and ESSENTIAL G Uprights — SKU 5083
- SEBO Bumper Base for Automatic X8 Bag Compartment - Dark Blue — SKU 51002DB
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Screw F 3.9 x 13 (DIN 7981) for X, G, 370, 300/350, C and D Series — 10 Pack — SKU 0102ER
- SEBO 3.9 x 16 Pan Head Screws (DIN 7981) for AUTOMATIC X, FELIX, ESSENTIAL G and 370 — 10 Pack — SKU 0103ER
- SEBO M4 x 12 Screws (DIN 966) for AUTOMATIC X, ESSENTIAL G and DUO — 10 Pack — SKU 0129ER
- SEBO Handle Catch C Clip (4, DIN 6799) for AUTOMATIC X4, X5, X7, X8 and 370 Series — 10 Pack — SKU 0161ER
- SEBO 4 x 13 Torx Screws (Tx 20) for AUTOMATIC X7/X8, ESSENTIAL G, DART and AIRBELT — 10 Pack — SKU 01036ER
- SEBO Dusting Brush Mounting Clip with Screw for AUTOMATIC X and ESSENTIAL G Uprights — Gray Black — SKU 5460GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- Genuine SEBO 5093AM X, G, C & Mechanical Vacuum Bags – 8 Pack — SKU 5093AM
- SEBO Pre-Motor Microfilter for AUTOMATIC X, ESSENTIAL G and 300/350 Uprights — SKU 5036AM
- SEBO Power Head Cover for AUTOMATIC X8 — Dark Blue — SKU 52122DBSE
- SEBO Exhaust Microfilter for AUTOMATIC X7 and X8 Uprights — SKU 52038AM
- SEBO Exhaust Filter Cover for AUTOMATIC X8 - Dark Blue — SKU 52029DB
- SEBO Right-Hand Swivel Neck Support with Reed Switch for AUTOMATIC X7 and X8 — SKU 52018ER
- SEBO Right-Hand Swivel Neck Bearing for Automatic X Series Uprights — SKU 5101
- SEBO Complete Swivel Neck Assembly for AUTOMATIC X7 and X8 — SKU 52023ER
- SEBO Left-Hand Swivel Neck Support for AUTOMATIC X7 and X8 — SKU 52020ER
- SEBO Left-Hand Swivel Neck Bearing for AUTOMATIC X4, X5, X7, X8 and ESSENTIAL G Series — SKU 5717
- SEBO Domel Motor Support Seal for AUTOMATIC X7 and X8 — SKU 52013
- SEBO Vacuum Motor 120V / 1300W for AUTOMATIC X7 and X8 — with Pulley, Mount and Bumper Ring — SKU 52194ER
- SEBO Carbon Brush Set for AUTOMATIC X, ESSENTIAL G, 370 and 300/350 Suction Motors — SKU 05117S
- SEBO Motor Wiring Harness for AUTOMATIC X7 and X8 — SKU 52040ER
- SEBO Rubber Motor Mounting for Automatic X and Essential G Series Uprights — SKU 5100
- SEBO Motor Cover for AUTOMATIC X7 and X8 — SKU 52059UL
- SEBO Complete Belt Adjuster for AUTOMATIC X7 and X8 — SKU 52011ER
- SEBO Motor Pulley for AUTOMATIC X4, X5, X7, X8 and ESSENTIAL G Series — SKU 5462
- SEBO Air Channel Cover for AUTOMATIC X7 and X8 — SKU 52115ER
- SEBO Male Contact Holder for the Swivel Neck — AUTOMATIC X7 and X8 — SKU 52199ER
- SEBO Reed Switch for Swivel Neck Support — AUTOMATIC X7 and X8 — SKU 52103
- SEBO 120V Power Supply and Controller PCB for AUTOMATIC X7 and X8 — SKU 5870ER
- SEBO Complete Foot Pedal for AUTOMATIC X7 and X8 — Light Gray/Orange — SKU 52009OR
- SEBO Felt Strip for AUTOMATIC X7 and X8 - Chassis to Swivel Neck — SKU 52052
- SEBO Cable Guide for Motor Wiring Harness - AUTOMATIC X7 and X8 — SKU 52054
- SEBO Right-Hand Brush Roller Release Button for AUTOMATIC X8 - Dark Blue — SKU 52034DB
- SEBO Motor Cover Buffer for AUTOMATIC X7 and X8 — SKU 52112
- SEBO Support Lever for AUTOMATIC X7 and X8 — SKU 52021ER
- SEBO Support Lever Spring for X Series, G Series and 300/350 Uprights — SKU 5107-1
- SEBO Wheel with Axle for AUTOMATIC X7 and X8 - Gray Black — SKU 52102GS
- SEBO Right-Hand Brush Roller Bearing Block for AUTOMATIC X7 and X8 - Gray Black — SKU 52032GS
- SEBO 15 in. Brush Roller Set for AUTOMATIC X2, X5 and X8 — 2 Piece — SKU 5290AM
- SEBO Right-Hand Brush Roller Release Ring with Spring for AUTOMATIC X7 and X8 - Light Gray — SKU 52033ER
- SEBO Chassis for AUTOMATIC X8 — Gray Black, with Felt Strip and Housing Buffer — SKU 52196GS
- SEBO Motor Pulley Cover for X Series and G Series Uprights — Black — SKU 5112SW
- SEBO Toothed Belt 2MR-310-6, Motor to Sensor, for AUTOMATIC X4, X5, X7, X8 and ESSENTIAL G Series — SKU 5463
- SEBO Brush Roller Release Knob, Left-Hand, for AUTOMATIC X8 — Dark Blue — SKU 52224DB
- SEBO 219 3M HTD-II-6 Toothed Belt for X Series, G Series and 300/350 — SKU 5110
- SEBO Brush Roller Release Ring with Spring, Left-Hand, for AUTOMATIC X8 — Light Gray — SKU 52248ER
- SEBO Brush Cover, Left Hand, for AUTOMATIC X8 — Gray Black — SKU 52134GS
- SEBO Sealed Bearing for AUTOMATIC X8 — SKU 52131
- SEBO Bearing Block, Left Hand, Complete for AUTOMATIC X8 — SKU 52121
- SEBO Servo Motor and Gearbox for AUTOMATIC X Series Uprights — SKU 5060ER
- SEBO Pile Adjustment Wheel for X Series Uprights — Gray Black — SKU 5174GS
- SEBO Access Door Spring for AUTOMATIC X, ESSENTIAL G and CE12 Softcase — SKU 5304
- SEBO Access Door Axle for AUTOMATIC X and ESSENTIAL G Series Uprights — SKU 5303
- SEBO Rubbing Plate for Pile Height Adjustment — X Series and CE12 Softcase — SKU 5155GS
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO Rear Bottom Plate with Sealing Strip and Screws for AUTOMATIC X8 — Gray Black — SKU 52120GS
- SEBO 15 in. Sealing Strip for AUTOMATIC X2, X5 and X8 — SKU 5400-2
- SEBO Front Bottom Plate for AUTOMATIC X8 — Gray Black — SKU 52118GS
- SEBO Complete LED Headlight Assembly for AUTOMATIC X7 and X8 — SKU 52016ER
- SEBO Screw C 2.9 x 13 for AUTOMATIC X7/X8, CE12 SOFTCASE and DISCO — 10 Pack — SKU 01029ER
- SEBO Torx T20 Screw STS 4 x 16 for X7/X8, FELIX, DART, SOFTCASE, 300/350 and DISCO — 10 Pack — SKU 01016ER
- SEBO AM4 x 30 Screw (DIN 7985) for AUTOMATIC X, ESSENTIAL G, FELIX, AIRBELT and ET Power Heads — 10 Pack — SKU 0176ER
- SEBO 3.9 x 25 Pan Head Screws (DIN 7981) for AUTOMATIC X, ESSENTIAL G and 300/350 — 10 Pack — SKU 0104ER
- SEBO M4 x 12 Screw with Washer for AUTOMATIC X, ESSENTIAL G, 370 COMFORT and 300/350 — 10 Pack — SKU 0197ER
