SEBO ELECTRONIC 370 schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation.

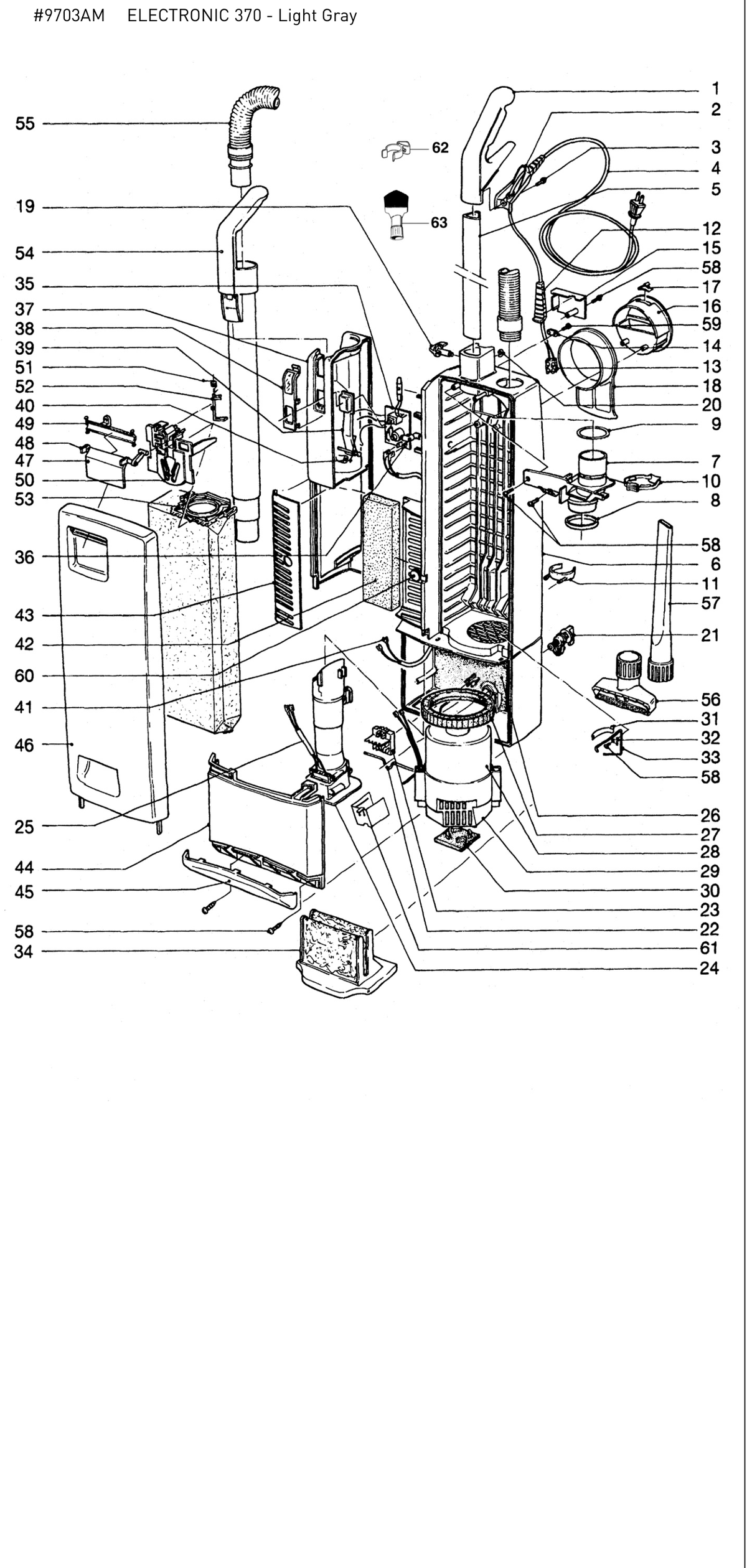

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO ELECTRONIC 370 parts on this page (91)
- SEBO Axle for the ELECTRONIC 370 — SKU 2525
- SEBO Pile Adjustment Axle for the ELECTRONIC 370 — SKU 2524
- SEBO Bearing Block Left Hand - 370 & ET-C — SKU 2091
- SEBO Right-Hand Brush Roll Bearing Block for ET-C and ELECTRONIC 370 — SKU 2047
- SEBO Drive Belt for ET-C Power Heads and ELECTRONIC 370 — SKU 2049
- SEBO Metal Bottom Plate and Ties for ET-C Power Heads and ELECTRONIC 370 — SKU 2005ER
- SEBO Bumper for the ELECTRONIC 370 - Light Gray — SKU 2522HG
- SEBO Pile Height Adjustment Knob for the ELECTRONIC 370 — Light Gray — SKU 2622HG
- SEBO Release Button for the Exhaust Filter Cover - 370 Series, Light Gray — SKU 1884HG
- SEBO Cord Grommet for ESSENTIAL G and 370 Series — Light Gray, Single — SKU 5359HG
- SEBO Power Supply Cord for the 370 Series - Dark Gray — SKU 1954DG
- SEBO Motor-to-Safety-Switch Wire for the ELECTRONIC 370 — SKU 0849UL
- SEBO Internal Cable Through Bag Housing for 370 Comfort and Electronic 370 — SKU 1833UL
- SEBO Swivel Neck Wire for the ELECTRONIC 370 — SKU 2611UL
- SEBO Female Contact Holder for 370 Comfort and Electronic 370 — SKU 1836UL
- SEBO Terminal Block for the 370 COMFORT and ELECTRONIC 370 — SKU 1265UL
- SEBO Complete Bag Holder for Essential G4, G5, 370 Comfort and Electronic 370 — SKU 1847
- SEBO Dust Bag Housing with Internal Cable for 370 Comfort and Electronic 370 — Light Gray — SKU 1831HG
- SEBO Dust Bag Housing Bumper for 370 Comfort and Electronic 370 — Light Gray — SKU 1804HG
- SEBO Cord Storage Cable Hook for 370 Comfort and Electronic 370 — Light Gray — SKU 1813HG
- SEBO Carrying Handle for 370 Comfort and Electronic 370 — Light Gray — SKU 1814HG
- SEBO Complete Front Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1846HG
- SEBO Bag Housing Locking Rod for 370 Comfort and Electronic 370 — SKU 1811
- SEBO Power Head Cover for the ELECTRONIC 370 — Dark Gray, Complete — SKU 2623AM
- SEBO Retaining Ring, Single, for AUTOMATIC X, ESSENTIAL G and 300/350/370 Series — Gray Black — SKU 5424GS1
- SEBO Attachment Clip for Essential G, 370 and 300/350 Bag Housing — Light Gray — SKU 1823HG
- SEBO Bag Holder Safety Catch for Essential G4, G5, 370 Comfort and Electronic 370 — SKU 1817
- SEBO Filter Safety Catch Rod for 370 Comfort and Electronic 370 — SKU 1824
- SEBO Handle Catch with Hardware for the 370 COMFORT and ELECTRONIC 370 — Dark Gray — SKU 0850DG
- SEBO Handle Catch for AUTOMATIC X4, X5 and 370 Series - Gray Black — SKU 1859GS
- SEBO Chassis, Complete, for the ELECTRONIC 370 — Light Gray — SKU 2543HG
- SEBO Cable Connection Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1812HG
- SEBO Wand Side Cover with Lens and On/Off Button for 370 COMFORT and ELECTRONIC 370 - Light Gray — SKU 1852HG
- SEBO Swivel Neck Cover for the 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 2602HG
- SEBO Brush Strip Cover with Screw for the ELECTRONIC 370 — SKU 2542
- SEBO Exhaust Filter Cover for 370 Comfort and Electronic 370 — Light Gray — SKU 1802HG
- SEBO Suction Motor Protection Cover for 370 Comfort and Electronic 370 — SKU 1821UL
- SEBO Motor Cover for 370 COMFORT and ELECTRONIC 370 — SKU 1853SE
- SEBO Terminal Block Cover for the 370 COMFORT and ELECTRONIC 370 — SKU 1524
- SEBO Lens for Bag Indicator and Switch Cover - 370 Series, Light Gray — SKU 1869HG
- SEBO Foot Pedal for the ELECTRONIC 370 - Orange — SKU 2528OR
- SEBO Handle Grip with Cover, Grommet and Screw for 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 1037EH
- SEBO Handle Tube for 370 Comfort and Electronic 370 — SKU 1848
- SEBO Handle Cover with Grommet and Screw for 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 1596HG
- SEBO Inner Brush Roller Bearing for the ELECTRONIC 370 and ET-C Power Heads — SKU 2467
- SEBO Rear Axle Clamp — Single, for AUTOMATIC X, ESSENTIAL G, 300/350, 370 and ET-C — SKU 2014
- SEBO Power Cord Cable Clamp for FELIX, CE12 Softcase, 370 Series and Duo — SKU 1030UL
- SEBO Filter Safety Catch Clamp for AUTOMATIC X, ESSENTIAL G and 370 Series Uprights — SKU 1073
- SEBO Switch Lever for the ELECTRONIC 370 — SKU 2605
- SEBO Connector Tube, Suction Neck to Wand, for 370 Comfort and Electronic 370 — Light Gray — SKU 1807HG
- SEBO Holder for Front Cover Release, 370 Comfort and Electronic 370 — Dark Gray — SKU 1819
- SEBO Valve Fitting, PCB to Bag Housing - 370 COMFORT and ELECTRONIC 370 — SKU 1860
- SEBO Brush Roller with Strip for the Electronic 370 and ET-C Power Heads — SKU 2030ER
- SEBO Microfilter Holder Leaf Spring for 370 COMFORT and ELECTRONIC 370 — SKU 1027
- SEBO Vacuum Motor Seal for FELIX, DART and 370 Series Uprights — SKU 1047
- SEBO Micro Switch Support for the ELECTRONIC 370 — Complete — SKU 2624
- SEBO Axle Spring for AUTOMATIC X and ESSENTIAL G Series, ELECTRONIC 370 and ET-C — SKU 2010
- SEBO Return Spring for the On/Off Switch Button - 370 COMFORT and ELECTRONIC 370 — SKU 1862
- SEBO Stop Spring for X Series, ESSENTIAL G Series and 370 Uprights — SKU 5146
- SEBO Pile Adjustment Spring for 370 COMFORT, ELECTRONIC 370 and CE12 Softcase — SKU 4019
- SEBO Safety Catch Spring for Automatic X, Essential G and 370 Series Uprights — SKU 5091
- SEBO On-Board Stretch Hose for X Series, G Series, 370 Series and 300/350 Mechanical — Silver — SKU 5040SB
- SEBO Brush Motor with Pulley for ET-C and ELECTRONIC 370 — 120V, 150W — SKU 2241UE
- SEBO Ametek Carbon Brush Set for the 2241UE Brush Motor — ELECTRONIC 370 and ET-C — SKU 05095S
- SEBO Carbon Brush Set for Pre-2001 5211UL and 1843/2 Motors — AUTOMATIC X1, X2 and ELECTRONIC 370 — SKU 0511/1
- SEBO Carbon Brush Set for AUTOMATIC X, ESSENTIAL G, 370 and 300/350 Suction Motors — SKU 05117S
- SEBO Carbon Brush Set for the Pre-2001 2241ER Brush Motor — ELECTRONIC 370 and ET-C — SKU 0512/1
- SEBO Rubber Motor Mount for the 1843/2 Suction Motor — 370 Comfort and Electronic 370 — SKU 1822
- SEBO Motor Pulley for the Electronic 370 and ET-C Power Heads — SKU 2025
- SEBO 1000W Suction Motor for 370 Comfort and Electronic 370 — SKU 1843/2
- SEBO Suction Motor Sound Insulation for 370 COMFORT and ELECTRONIC 370 — SKU 1851
- SEBO Circuit Board with Switch for 370 COMFORT and ELECTRONIC 370 — SKU 1935ER
- SEBO PCB Electronic Controller for the ELECTRONIC 370 — SKU 2572ER
- SEBO Brush Roller Pulley for the ELECTRONIC 370 and ET-C Power Heads — SKU 2458
- SEBO Filter Tube Seal for AUTOMATIC X, ESSENTIAL G1/G2, 300/350 and 370 Series — SKU 5289
- SEBO Cover Release Seal for 370 Comfort and Electronic 370 — SKU 6040
- SEBO Micro Safety Switch for the ELECTRONIC 370 and ET-C Power Head — SKU 0531/1
- SEBO Swivel Support for the ELECTRONIC 370 — SKU 2613
- SEBO Swivel Neck Assembly for the ELECTRONIC 370 — SKU 2609UL
- SEBO On-Board Cleaning Wand for AUTOMATIC X Series and 370 Uprights — Gray Black — SKU 5045GS
- SEBO Pile Adjustment Wheel for the 370 COMFORT and ELECTRONIC 370 — Light Gray — SKU 2608HG
- SEBO Complete Wheel for the ELECTRONIC 370 — Light Gray — SKU 2614HG
- Genuine SEBO 5093AM X, G, C & Mechanical Vacuum Bags – 8 Pack — SKU 5093AM
- SEBO Pre-Motor Microfilter for 370 Series — SKU 1875
- SEBO Exhaust Filter for 370 Series — SKU 1878
- SEBO Crevice Nozzle — Gray Black — SKU 1092GS
- SEBO Upholstery Nozzle for AUTOMATIC X and FELIX — Gray/Black — SKU 1491GS
- SEBO Dusting Brush with Horsehair Bristles — Gray Black — SKU 1387GS
- SEBO 14 in. Brush Roller Strip for 350 MECHANICAL, 370 Series and ET-C Power Heads — SKU 2046
- SEBO Handle Catch C Clip (4, DIN 6799) for AUTOMATIC X4, X5, X7, X8 and 370 Series — Single — SKU 0161
- SEBO ET-C1 Washer for ELECTRONIC 370 and ET-C Power Heads — Single — SKU 0155
