SEBO AUTOMATIC X5 schematics and parts
Archived SEBO schematic for an older model. Use the original drawing and linked parts list to identify a replacement. Unlinked part numbers need confirmation. Red 9558AM includes the bag housing only; this source does not identify its power-head color parts.

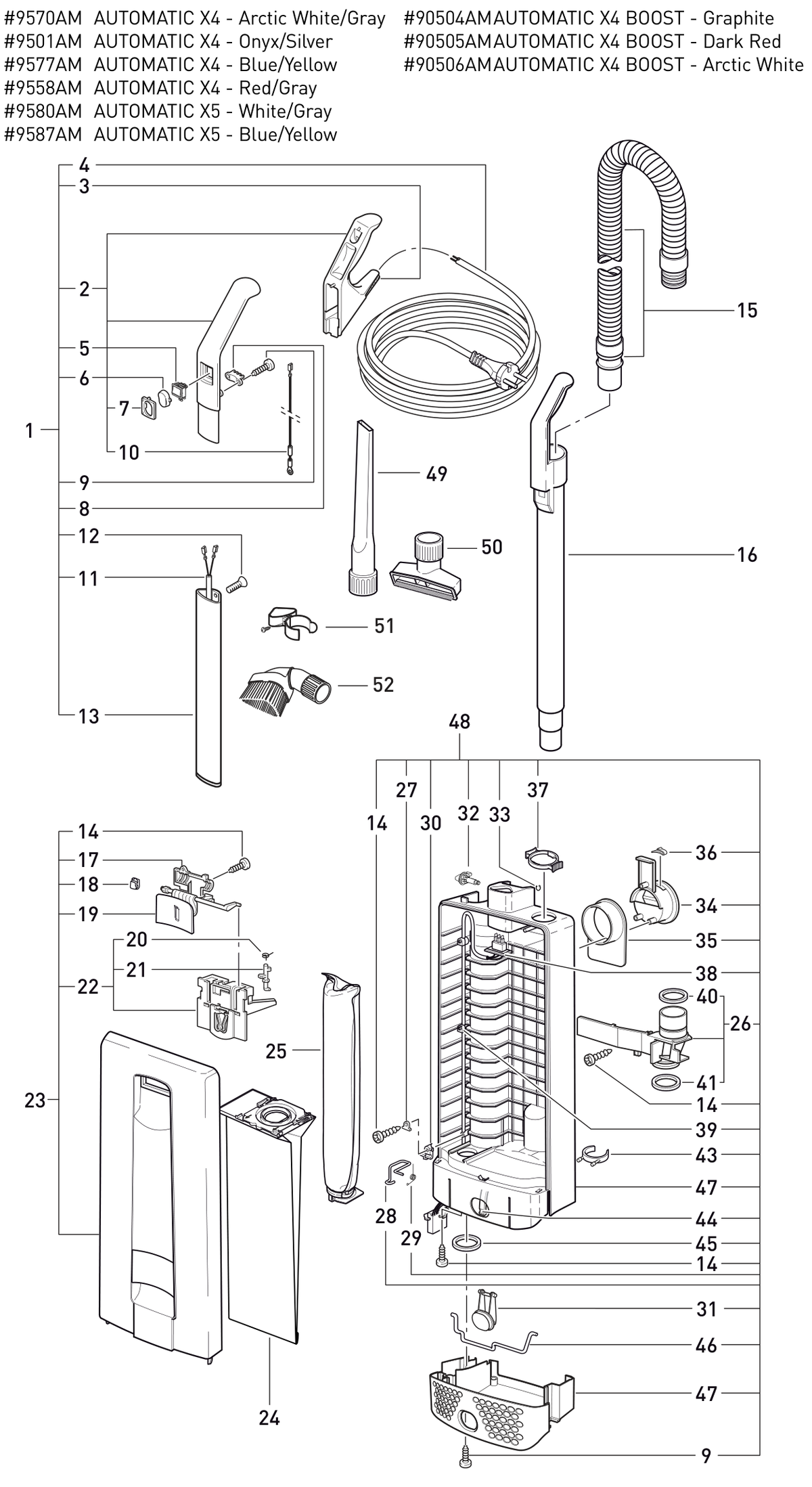

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AUTOMATIC X5 parts on this page (132)
