SEBO AIRBELT D4 schematics and parts
Choose your D4 color and assembly, then tap a blue reference number or part number to open its product page.

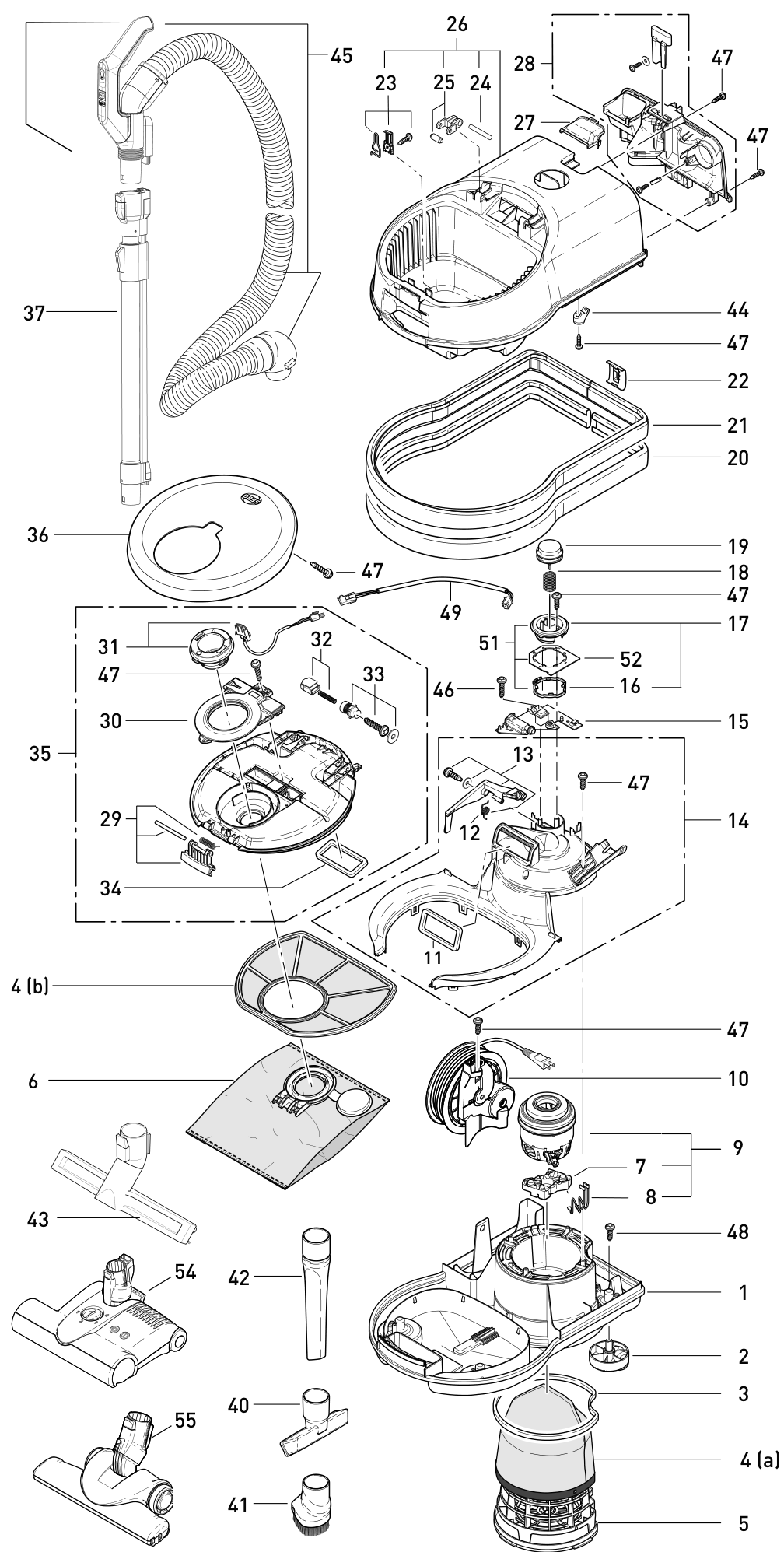

Exploded diagram
Blue numbers open parts. Gray numbers need confirmation. Zoom in and scroll to inspect the drawing.
Parts list
| Ref. | Part number | Description |
|---|
No matching parts. Try another number or clear your search.
Need help finding the right part? Call us with your model and reference number: (888) 429-8828
All genuine SEBO AIRBELT D4 parts on this page (87)
- SEBO Bottom Casing with Castors for AIRBELT D4 Premium - Black — SKU 8001SWER
- SEBO Complete Swivel Castor for AIRBELT D1 Turbo and D4 Premium - Gray Black — SKU 8086GS
- SEBO Post-Motor Microfilter Seal for AIRBELT D1 Turbo and D4 Premium — SKU 8065ER
- SEBO Filter Set for AIRBELT D1 and D4 Canisters — SKU 8191AM
- SEBO Post-Motor Microfilter Holder for AIRBELT D1 Turbo and D4 Premium — SKU 8084ER
- Genuine SEBO 8120AM AIRBELT D1 & D4 Vacuum Bags – 8 Pack — SKU 8120AM
- SEBO Motor Support Cradle for AIRBELT D and E Series Canisters — SKU 8045ER
- SEBO Internal Cable Set with Thermal Cut-Out for AIRBELT D1 Turbo and D4 Premium — SKU 8091AM
- SEBO 1250W Vacuum Motor with Support and Cable Set for AIRBELT D1 Turbo and D4 Premium — SKU 8048ER
- SEBO Cord Rewind Unit for AIRBELT D1 Turbo and D4 Premium — SKU 665613E
- SEBO Motor Inlet Seal for AIRBELT D1 and D4 Canisters — SKU 8009
- SEBO Cord Rewind Lever Spring for AIRBELT D1 Turbo and D4 Premium — SKU 8098ER
- SEBO Cord Rewind Lever Kit with Screw, Washer and Spring for AIRBELT D1 Turbo and D4 Premium — SKU 8036ER
- SEBO Complete Motor Cover with Inlet Seal, Rewind Lever and Spring for AIRBELT D1 Turbo and D4 Premium — SKU 8085ER
- SEBO Printed Circuit Board with Integrated Switch for AIRBELT D4 Premium — SKU 8106ER
- SEBO Retaining Ring for AIRBELT D1 Turbo and D4 Premium — SKU 8058ER
- SEBO Power Button Spring for AIRBELT D1 Turbo and D4 Premium — SKU 8057
- SEBO Power Control Knob for AIRBELT D4 Premium - Gray Black — SKU 8037GS
- SEBO AIRBELT Textile with Clips in Black and Silver Stripes — AIRBELT D4 Premium — SKU 6047AM10
- SEBO AIRBELT Foam Bumper for AIRBELT D1 Turbo and D4 Premium — SKU 8033UL
- SEBO AIRBELT Retaining Clip for AIRBELT D1 Turbo and D4 Premium - Gray Black — SKU 8034GS
- SEBO Filter Bag Spring with Mounting Hardware for AIRBELT D1 Turbo and D4 Premium — SKU 8140ER
- SEBO Bag Cover Axle Set for AIRBELT D1 Turbo and D4 Premium — SKU 6750ER
- SEBO Bag Cover Hinges and Axles for AIRBELT D1 Turbo and D4 Premium — SKU 8052ER
- SEBO Top Casing with Bag Spring for AIRBELT D4 Premium - Black — SKU 8003SWER
- SEBO Cord Entry Grommet for AIRBELT D1 Turbo and D4 Premium - Gray Black — SKU 8059GS
- SEBO On-Board Attachment Holder for AIRBELT D1 Turbo and D4 Premium - Unprinted — SKU 8010GSER
- SEBO Bag Cover Release Kit with Axle and Spring for AIRBELT D1 and D4 — SKU 8114ER
- SEBO Bag Cover Insert for AIRBELT D1 Turbo and D4 Premium — Gray Black — SKU 8129GS
- SEBO Wired Hose Neck with 8160 Internal Cable for AIRBELT D4 Premium — SKU 8079ER
- SEBO Bag Indicator with Spring for AIRBELT D1 Turbo and D4 Premium — SKU 7020ER
- SEBO Bag Indicator Adjuster with Hardware for AIRBELT D1 Turbo and D4 Premium — SKU 8127ER
- SEBO Bag Cover Seal for AIRBELT D1 Turbo and D4 Premium — SKU 8130
- SEBO Complete Inside Bag Cover for AIRBELT D4 Premium — SKU 8051AM4
- SEBO Printed Bag Compartment Cover for AIRBELT D4 Premium - Black — SKU 8005SWER
- SEBO Telescopic Wand for K3, C3.1, D4 and E3 - Gray and Black — SKU 60237UC
- SEBO Upholstery Nozzle for AIRBELT D Series — Gray/Black — SKU 8142GS
- SEBO Dusting Brush with Horsehair Bristles for AIRBELT D Series — SKU 8146ER
- SEBO Crevice Nozzle for AIRBELT D and E Series — Gray/Black — SKU 8066GS
- SEBO Internal Cable Clamp for AUTOMATIC X, ESSENTIAL G and AIRBELT D Series — SKU 5266
- SEBO Hose and Handle Assembly with Dual Controls for AIRBELT D4 Premium — Gray Black — SKU 8546AM
- SEBO Internal Cable for AIRBELT D4 Premium — SKU 8160
- SEBO Printed Circuit Board with Indicator Lights for AIRBELT D4 Premium — SKU 8108ER
- SEBO ET-1 Power Head without On/Off Switch for AIRBELT D4, E3 and K3 — Black — SKU 9261AM
- SEBO Premium Parquet Brush for FELIX and AIRBELT K, Onyx Gray and Black — SKU 7200GS
- SEBO ET-1 Power Head Chassis — Gray Black — SKU 2324GS
- SEBO ET-1 Power Head Bumper — Gray Black — SKU 2302GS
- SEBO Left-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2314GS
- SEBO Toothed Brush Belt 333 3M HTDII-6 for FELIX, DART, ET-1/ET-2 and 370 COMFORT — SKU 2923
- SEBO 5010AM Brush Roller – 12-Inch Standard Bristle — SKU 5010AM
- SEBO Right-Hand Bearing Block for ET-1 and ET-2 Power Heads — Gray Black — SKU 2313GS
- SEBO Spring for the Axle Adjustment Assembly — ET-1 and ET-2 Power Heads — SKU 2929
- SEBO Pile Adjustment Assembly for ET-1 and ET-2 Power Heads — Gray Black — SKU 2316GS
- SEBO Access Door with Axle and Spring for ET-1 and ET-2 Power Heads — Orange — SKU 2909VO
- SEBO Rear Bottom Plate for ET-1 Power Heads — Gray Black — SKU 2304GS
- SEBO Pile Adjustment Knob in Silver for ET-1 and ET-2 Power Heads — SKU 2931SB
- SEBO Power Head Wheel Assembly for ET-1 and ET-2 — Gray Black — SKU 2306GS
- SEBO Foot Pedal with Axle and Spring for FELIX, ET-1, ET-2 and DISCO — Orange — SKU 2937OR
- SEBO Complete Swivel Neck for ET-1 and ET-2 Power Heads — Gray Black — SKU 2307GS
- SEBO Swivel Neck Wiring for ET-1, ET-2 and DISCO Power Heads — SKU 0876ER
- SEBO Back Cover for the TS-Neck — FELIX, ET-1, ET-2 and DISCO, Gray Black — SKU 2947GS
- SEBO Metal Bearing Segments for the TS-Neck Swivel — 6 Piece Set — SKU 2950ER
- SEBO Telescopic Tube Release Button with Leaf Spring and Cover — SKU 6480ER
- SEBO Release Button Cover for FELIX, ET-1, ET-2 and DISCO Swivel Necks — Gray Black — SKU 2952GS
- SEBO Swivel Neck Slide for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2945GS
- SEBO TS-Neck Socket Cover for FELIX, ET-1, ET-2 and DISCO — Gray Black — SKU 2951GS
- SEBO Screw F 3.9 x 9.5 (DIN 7981) for ET-1 and ET-2 Power Heads — Single — SKU 01027
- SEBO Swivel Neck Bearing for FELIX, DART, ET-1, ET-2 and DISCO — SKU 2954
- SEBO Right-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2311
- SEBO Left-Hand Swivel Neck Support for ET-1 and ET-2 Power Heads — SKU 2312
- SEBO Micro Safety Switch with Wiring for ET-1 and ET-2 Power Heads — SKU 0880
- SEBO Swivel Neck Support Axle for ET-1 and ET-2 Power Heads — SKU 2928
- SEBO 175 W Brush Motor with Pulley for ET-1 and 370 COMFORT Power Heads — SKU 2973ER
- SEBO Carbon Brush Set for ET-1, ET-2 and DISCO Power Head Motors — SKU 05141S
- SEBO 175W Printed Circuit Board for ET-1 Power Heads — SKU 2684ER
- SEBO ET-1 Power Head Cover — Black, Switchless Version — SKU 20337SWET
- SEBO Long Wire Tie for AUTOMATIC X, ESSENTIAL G, FELIX, DART, AIRBELT and ET Power Heads — SKU 5402
- SEBO Motor Pulley for ET-1, ET-2 and 370 COMFORT Power Heads — SKU 2319
- SEBO Left Lens for ET-1 and ET-2 Power Heads — Switchless Version — SKU 20955
- SEBO Brush Light Lens, Right Hand, for ET-1 and ET-2 Power Heads — SKU 2956
- SEBO Bottom Casing with Castors for AIRBELT D1 and D4 - White — SKU 8001WEER
- AIRBELT Textile, for D, K, and C, with 6048GS and 8034GS clips (gray black, solid) — SKU 6047AM01
- SEBO Top Casing with Bag Spring for AIRBELT D1 and D4 - White — SKU 8003WEER
- SEBO Printed Bag Compartment Cover for AIRBELT D4 Premium - White — SKU 8005WEER
- SEBO ET-1 Power Head without On/Off Switch for AIRBELT D4, E3 and K3 — Arctic White — SKU 9260AM
- SEBO Pile Adjustment Knob for ET-1 and ET-2 Power Heads — Gray Black — SKU 2931GS
- SEBO White Power Head Cover for ET-1 Power Heads Without Switch — SKU 20335WEET
