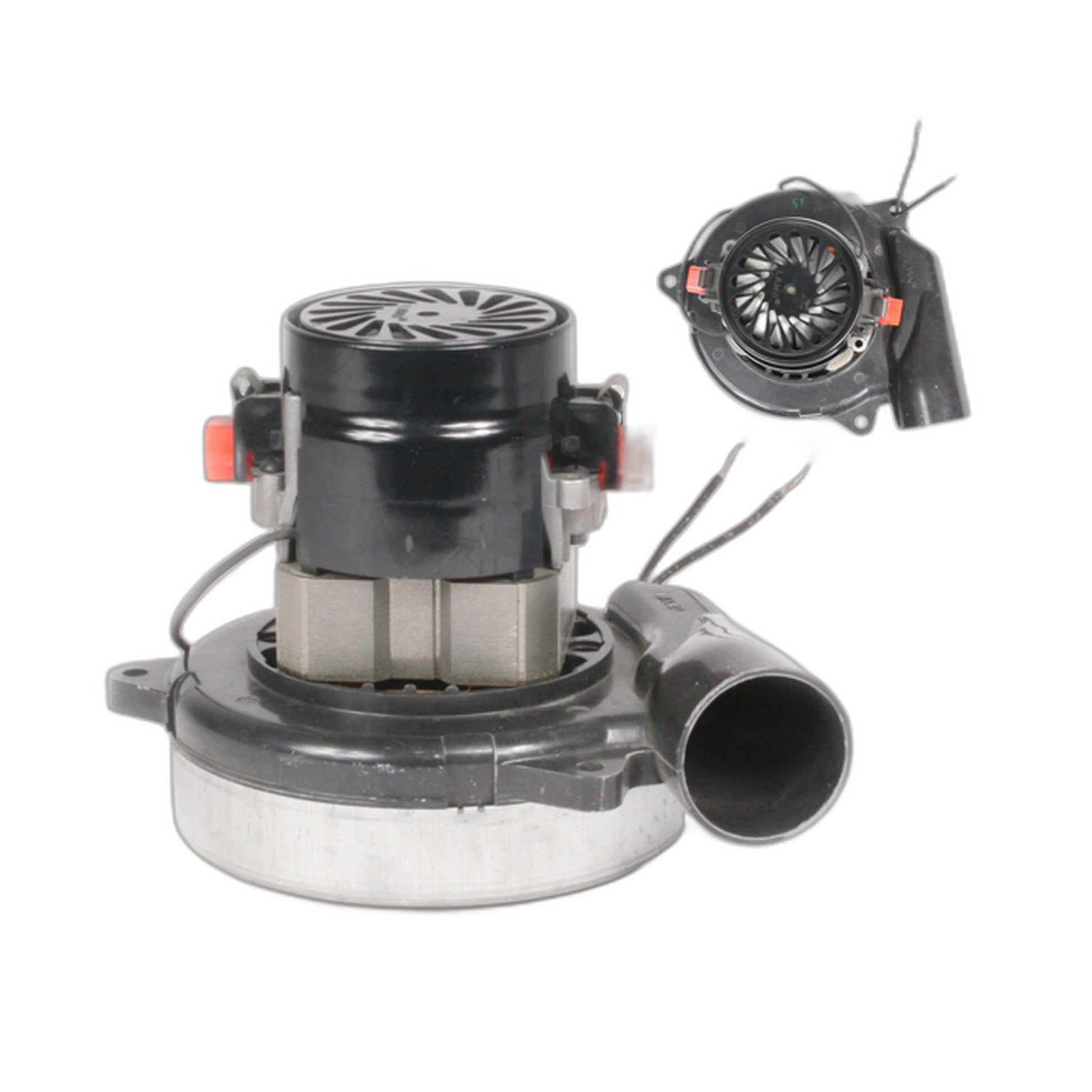

Lamb Ametek 119512 Tangential Bypass Central Vacuum Motor
Lamb Ametek 119512 Tangential Bypass Central Vacuum Motor
SKU:209-1
Couldn't load pickup availability
SKU 209-1 is the Lamb Ametek 119512 central vacuum motor, a brand-new (never rebuilt) single-stage Ametek original built with a tangential bypass design. It is fitted in several central vacuum brands and models and is a direct replacement for the 119512 only. Motors marked 9512 or 11-9512 on the label are this same part.
Specs for the 119512:
- Voltage: 110-120 V, 50-60 Hz | Amps: 11.2
- Fan stages: 1 | Bypass: tangential
- Bolt height: 1-1/4" | Overall height: 6-3/4"
- Air watts: 418 | CFM: 138.3 | Waterlift: 87.5"
- Bottom diameter: 5.7"
Figure on 900-1,200 hours of service. A failing 119512 announces itself with a popping mini breaker, an electrical smell, pronounced blue sparking from the motor top, or shutdowns that clear on their own — if you only hear silence with no click, check the relay first, since the motor may be fine. Swapping the motor takes three bolts plus two wire connections, a job most owners find quick and manageable.
